CHOOSE YOUR FORETRAVEL

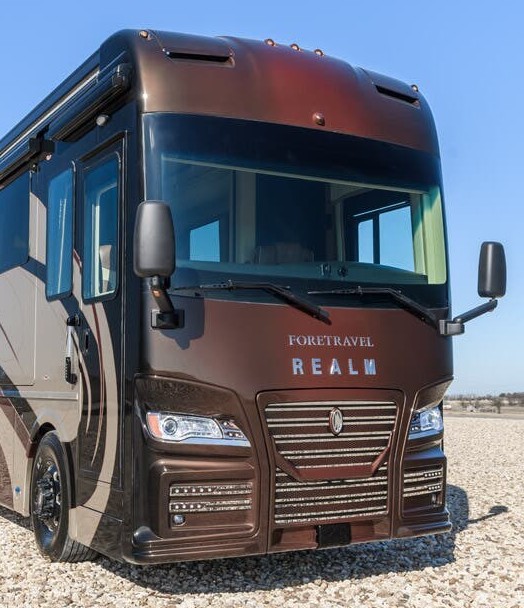

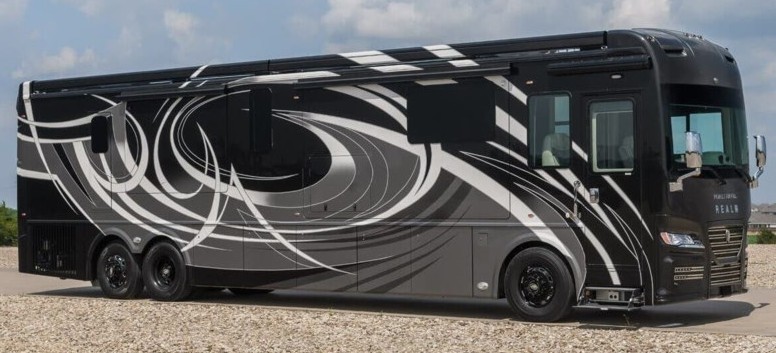

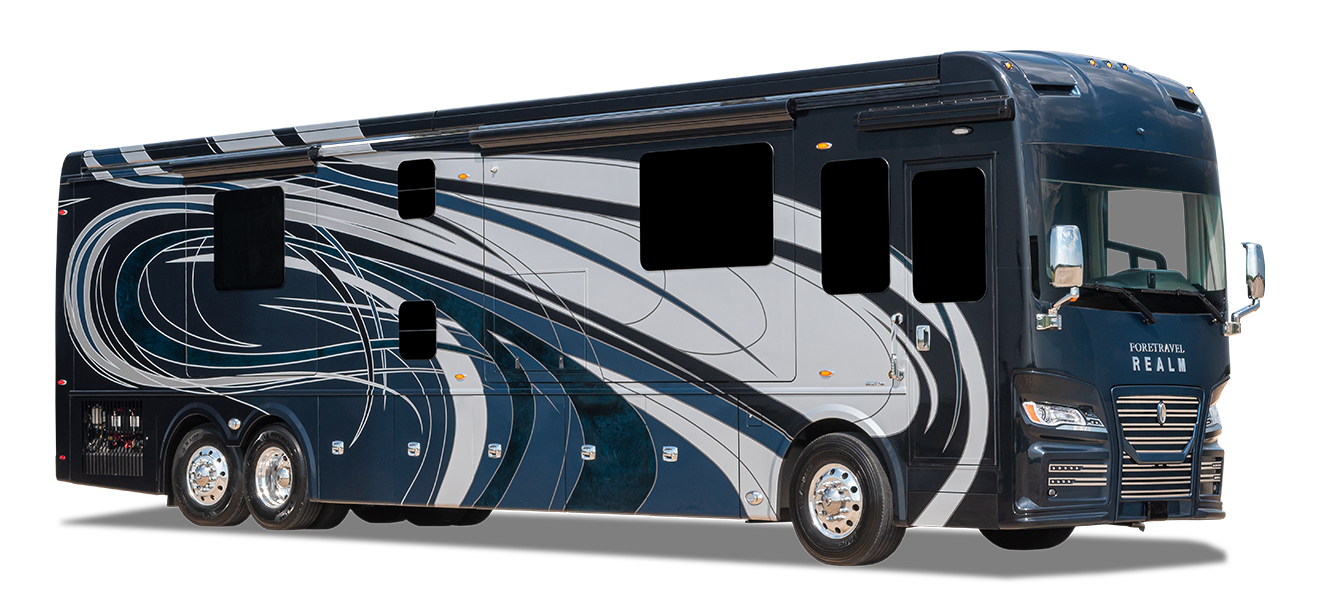

REALM FS605

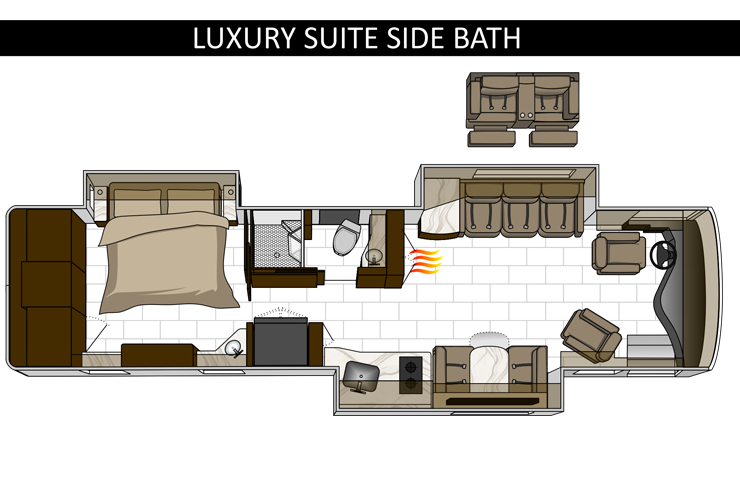

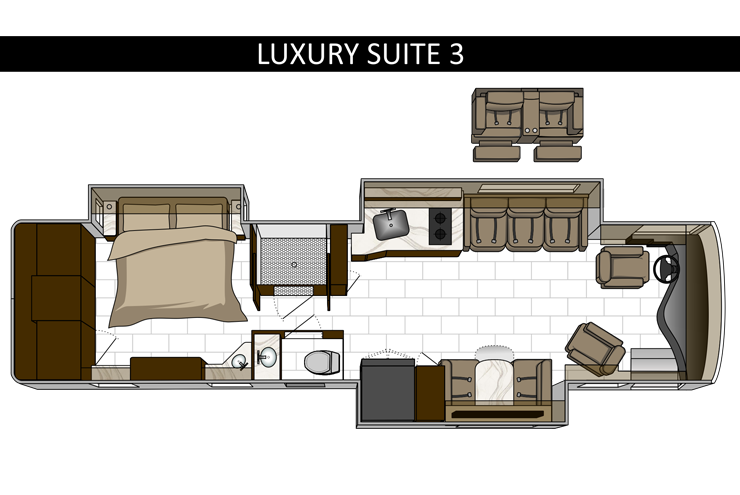

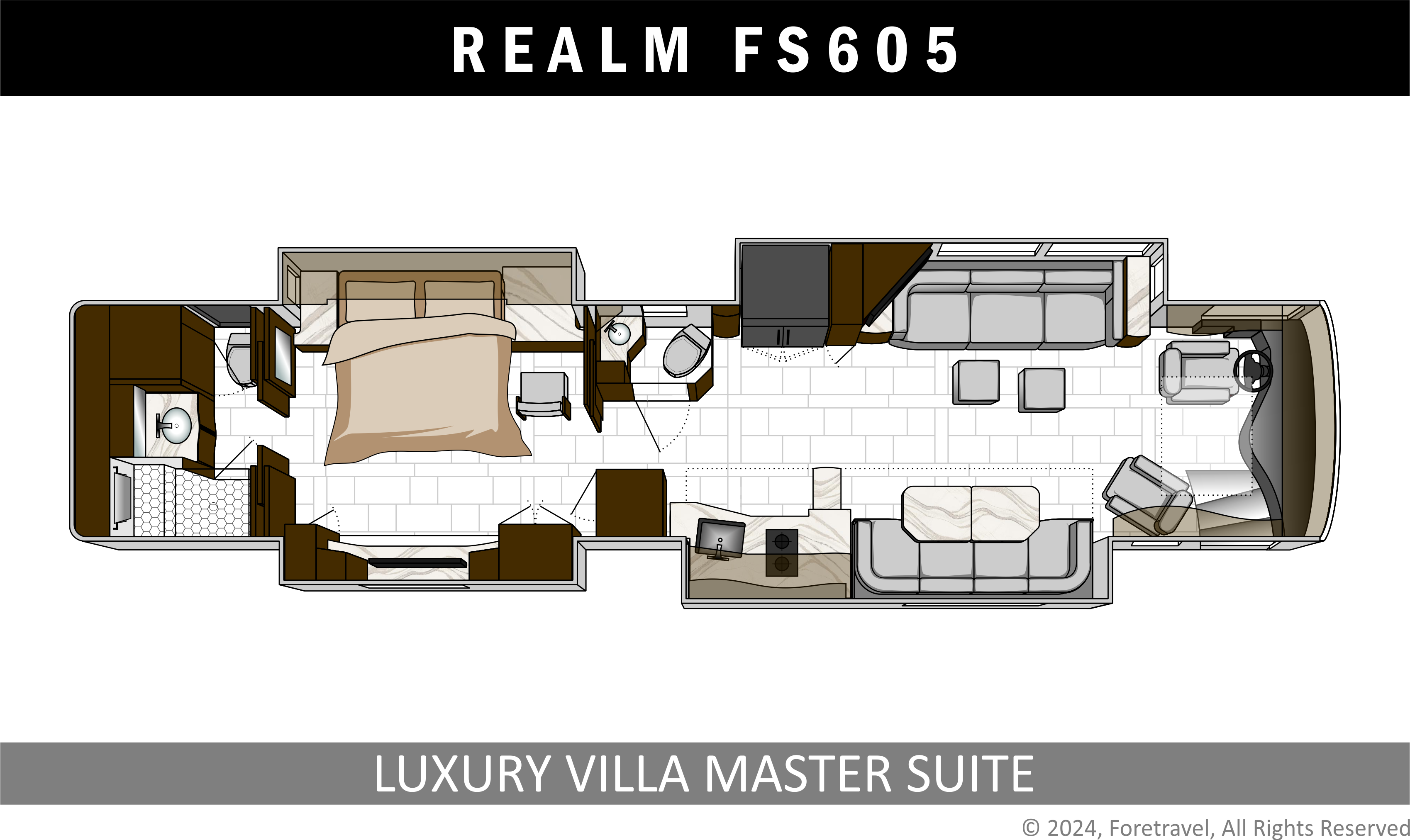

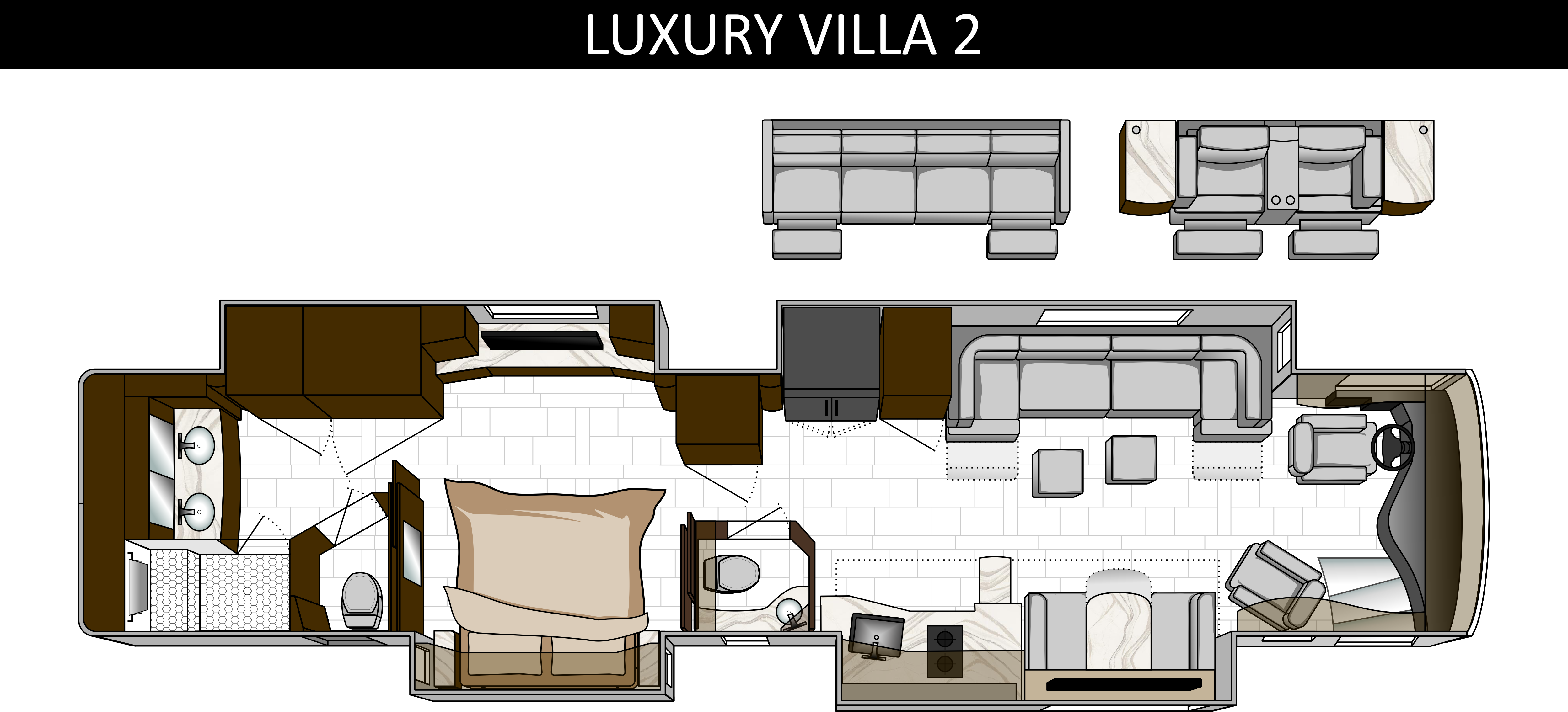

REALM FS605 Floorplans

The Realm's Cutting-Edge Design of available floor plans sets it apart from every other luxury motor coach on the market today. The attention to functionality and livability in each Foretravel Realm will leave you asking why you waited until now.

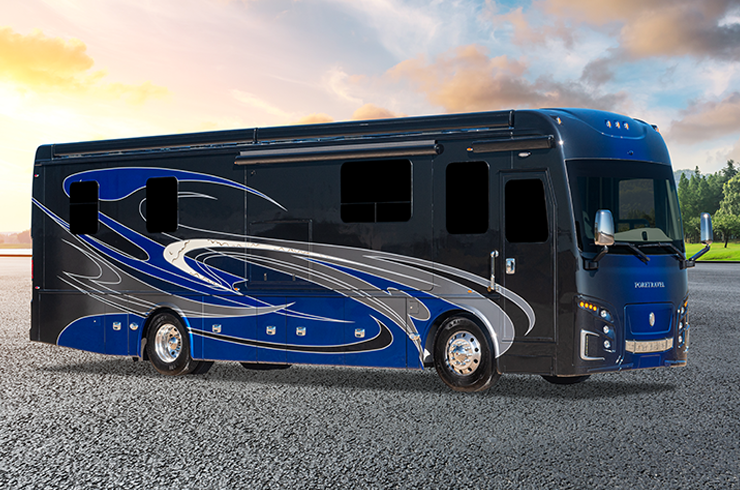

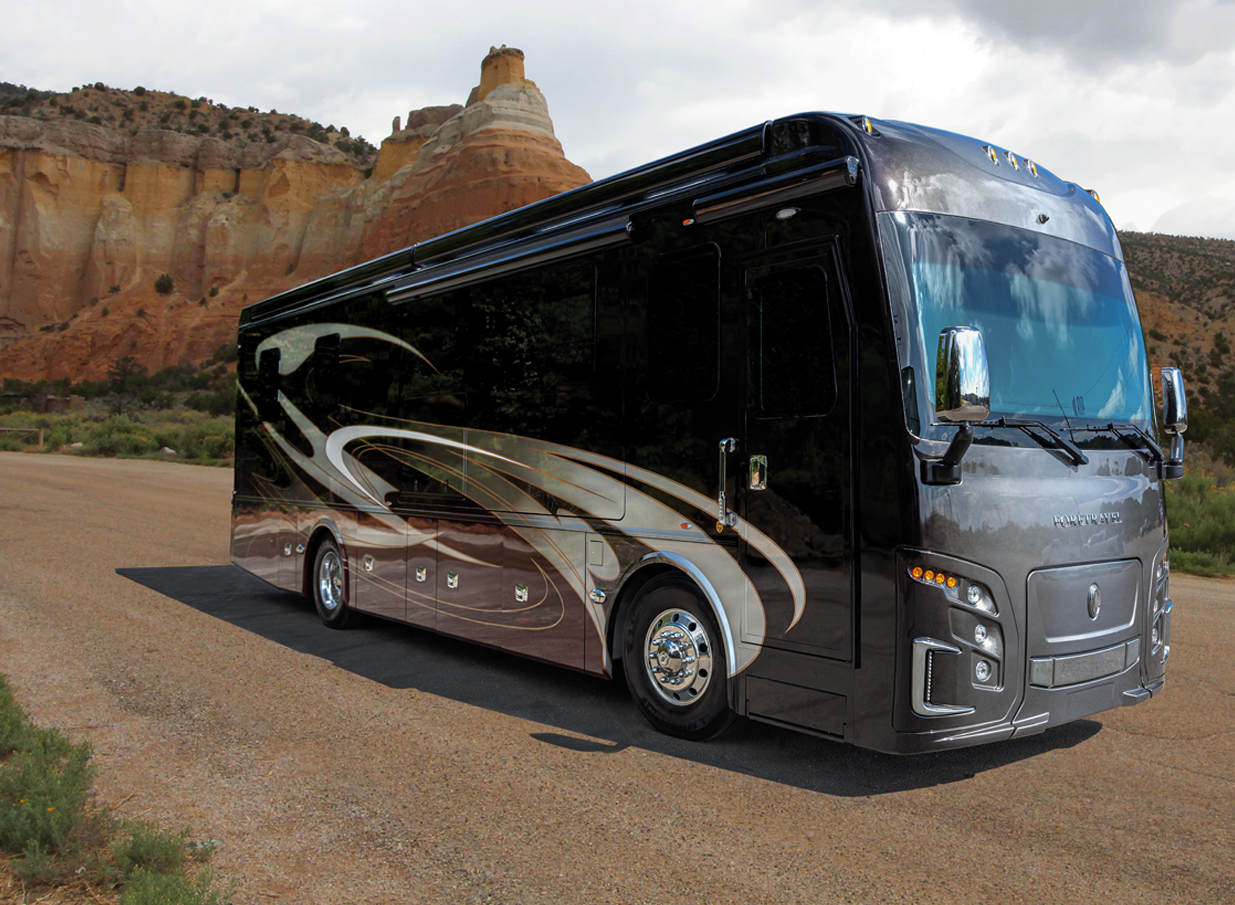

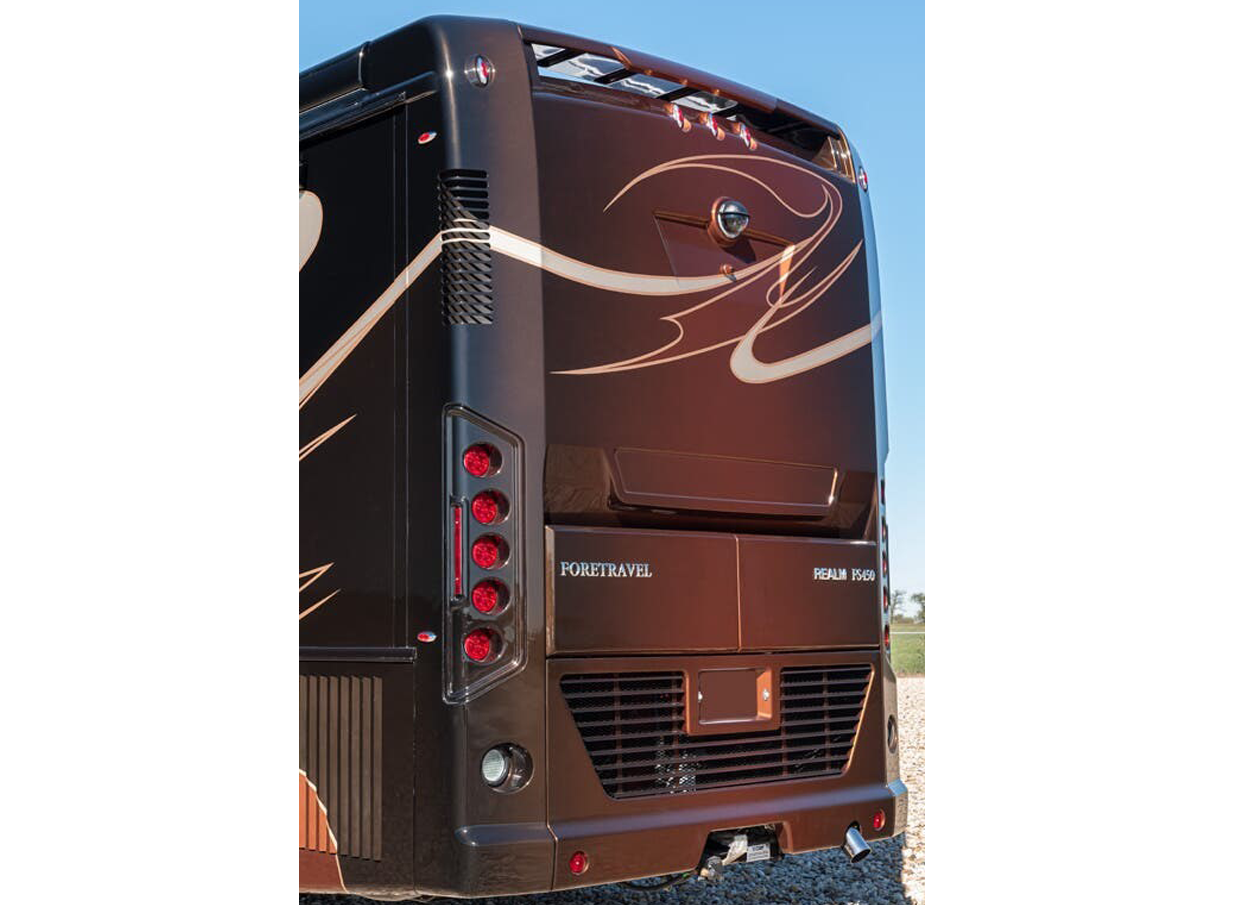

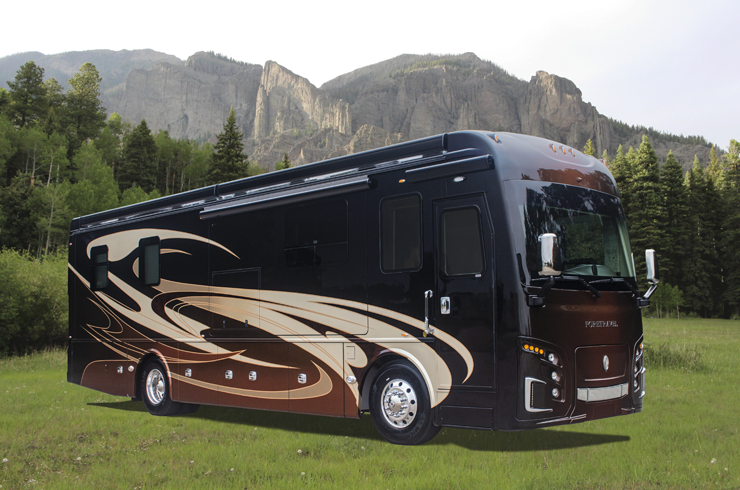

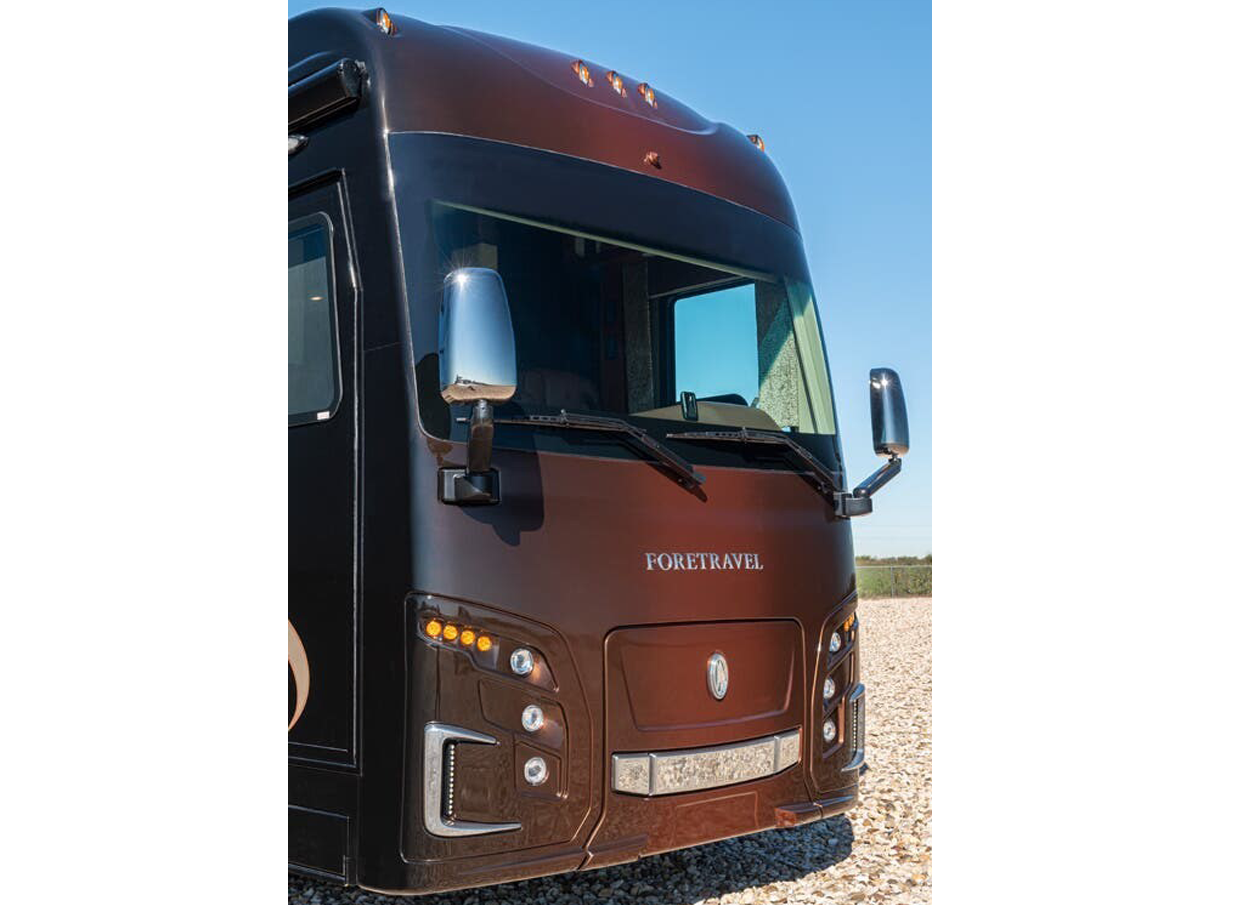

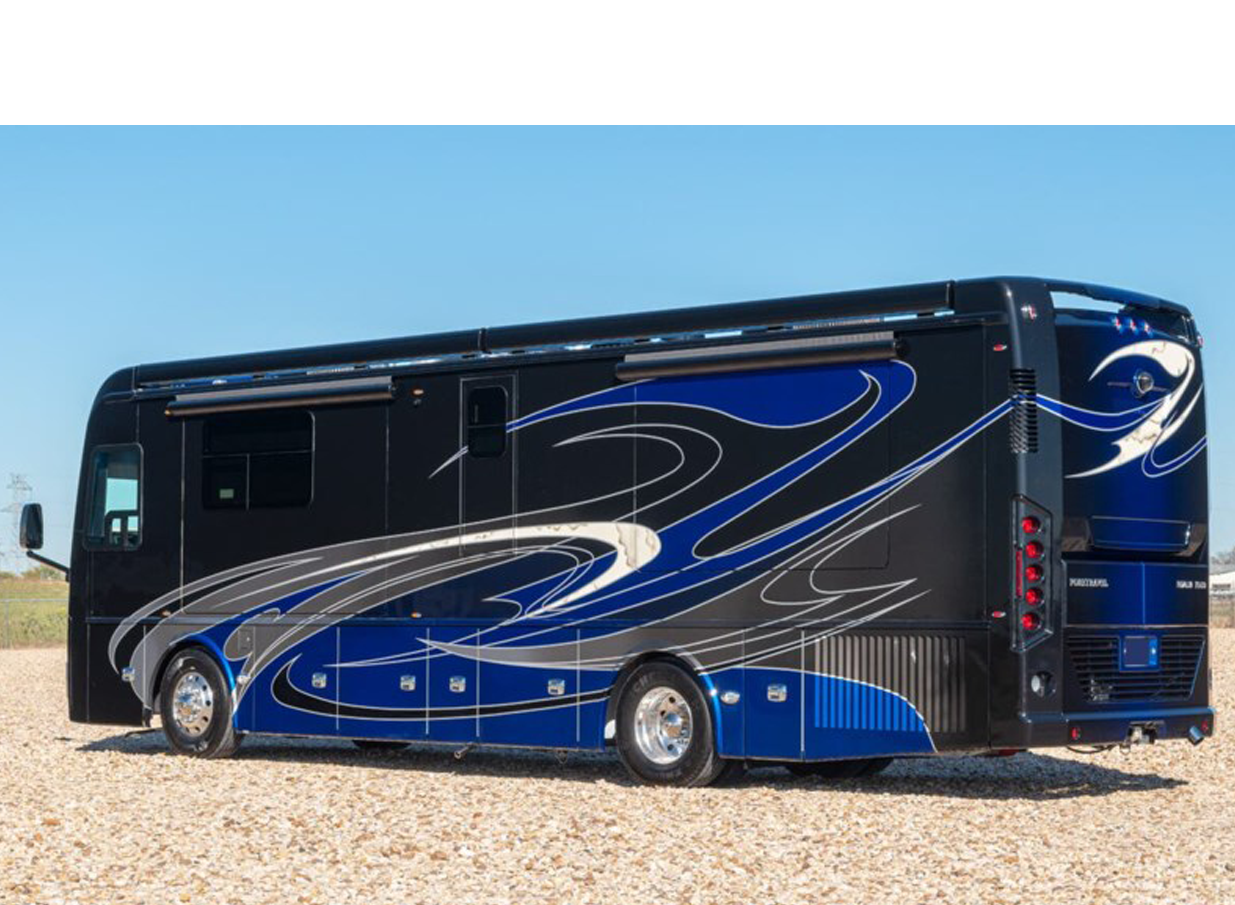

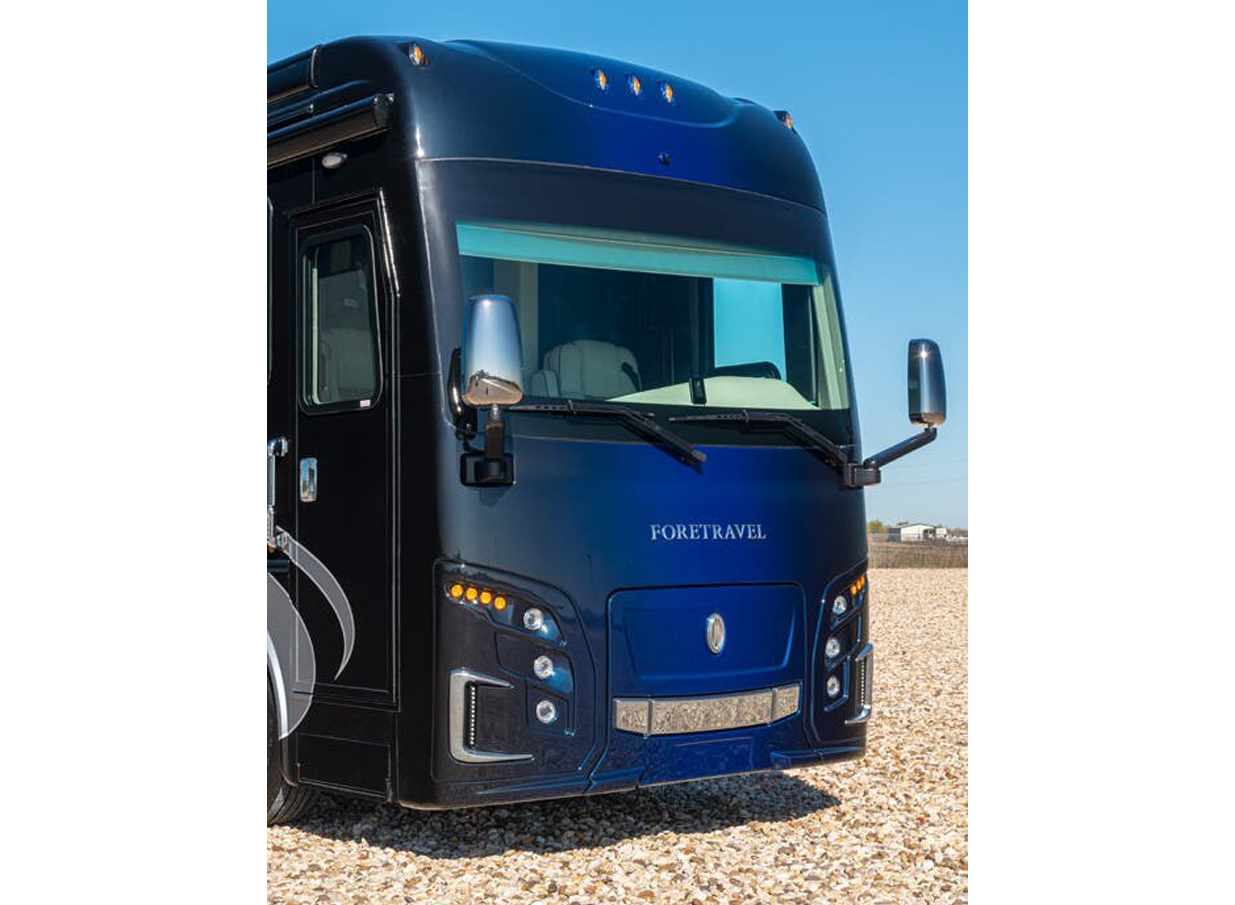

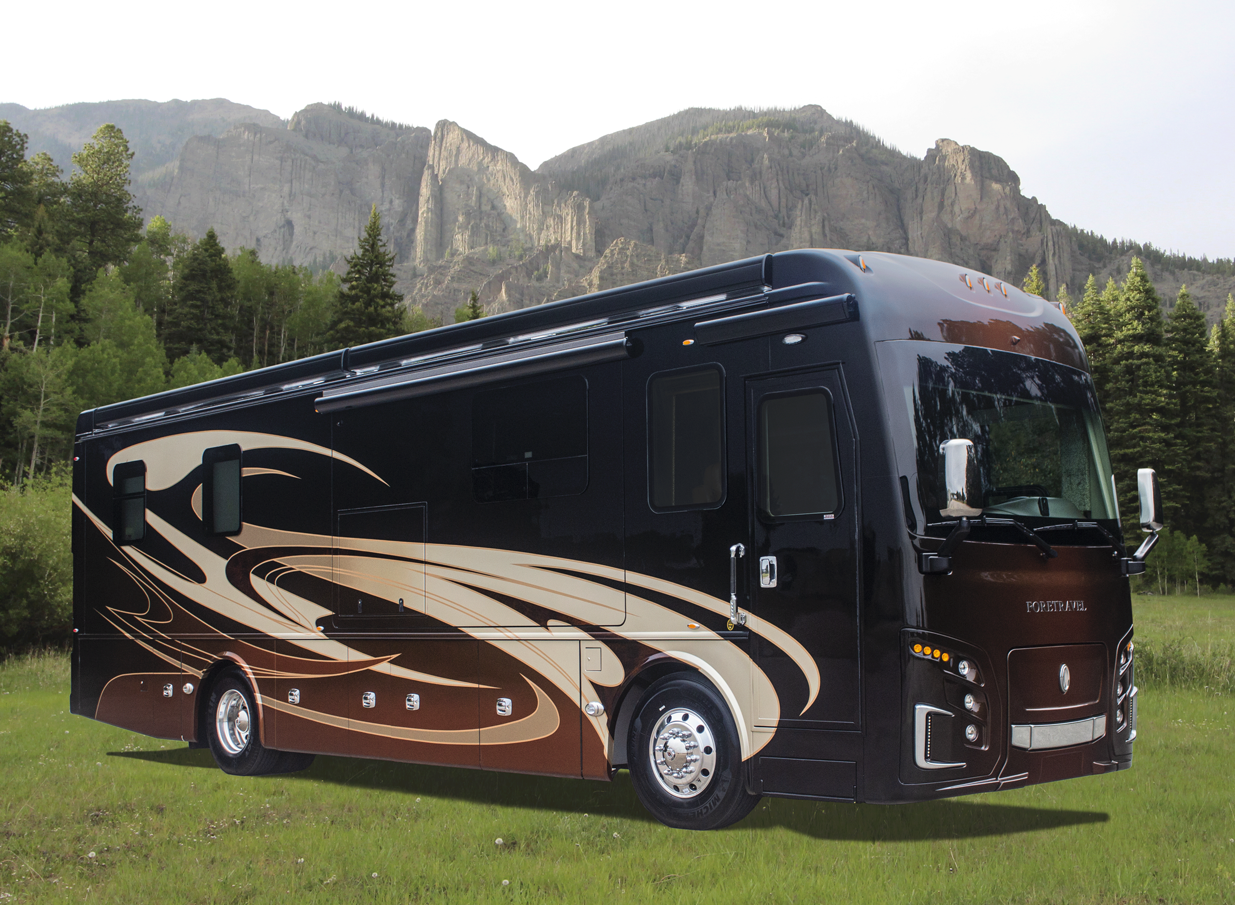

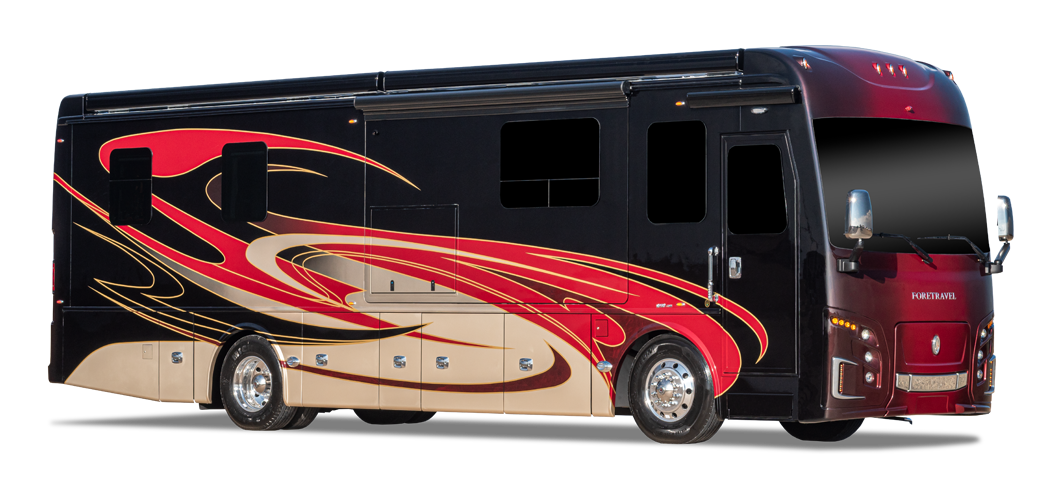

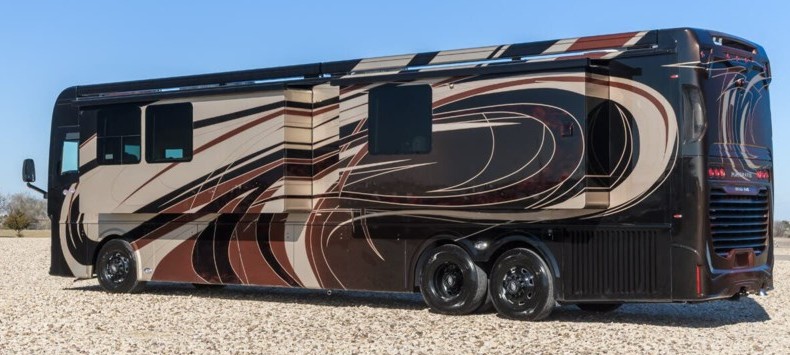

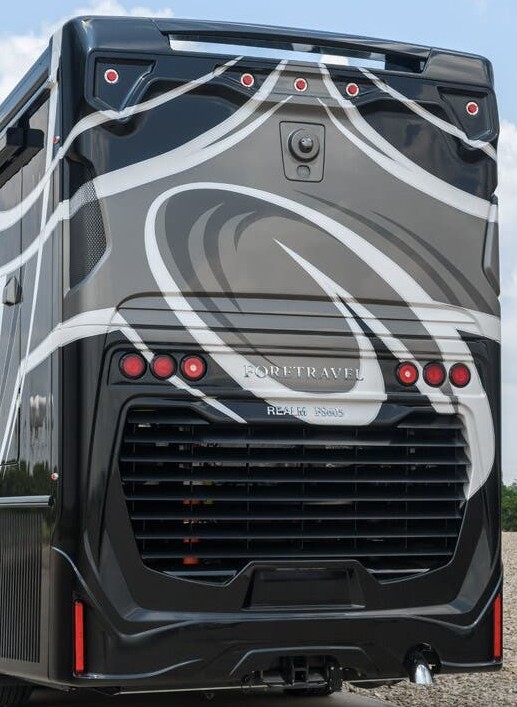

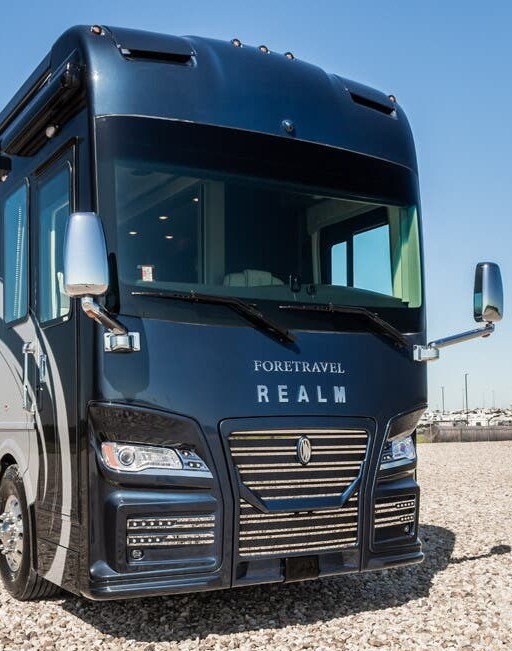

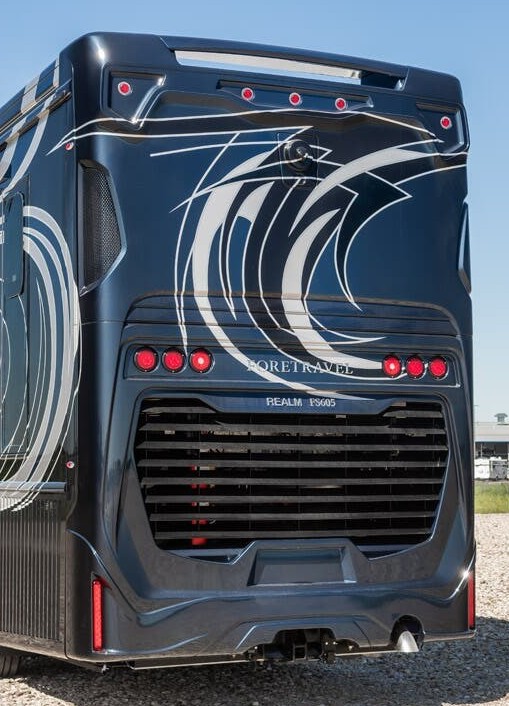

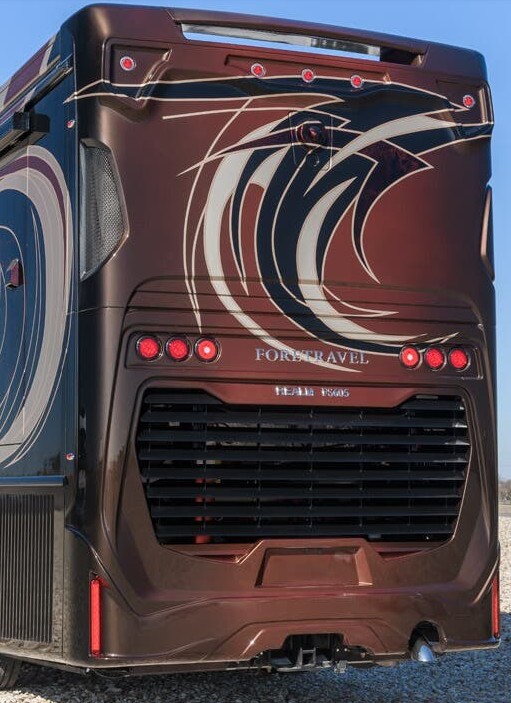

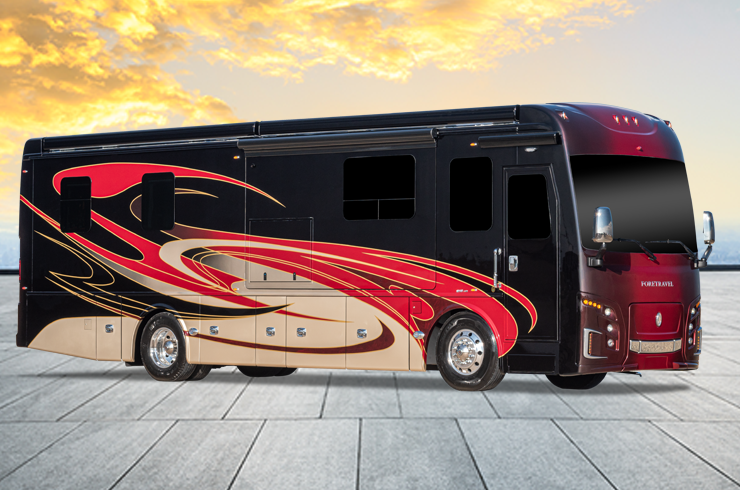

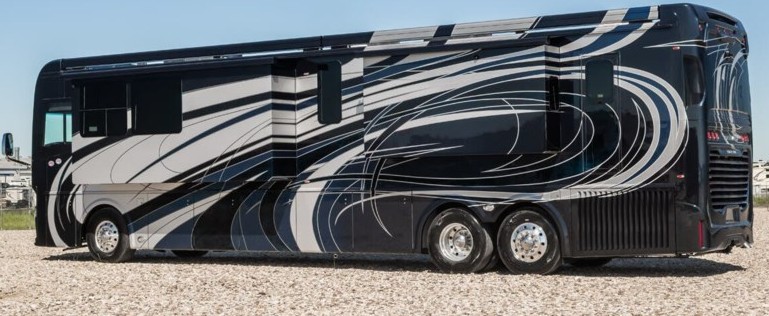

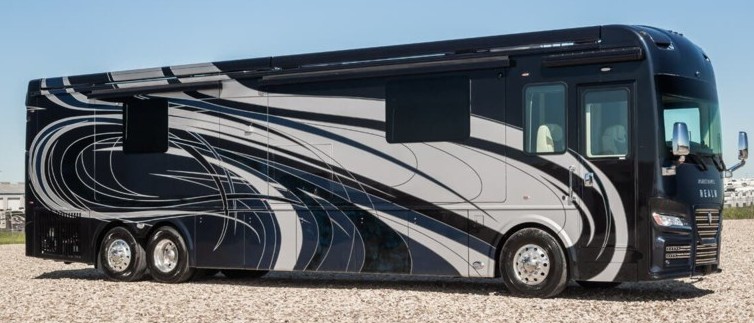

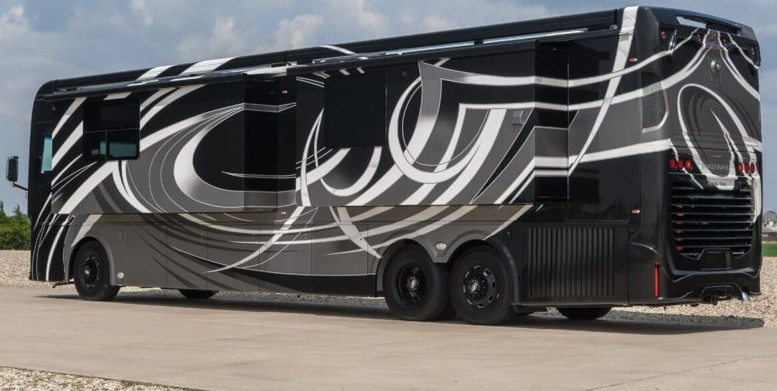

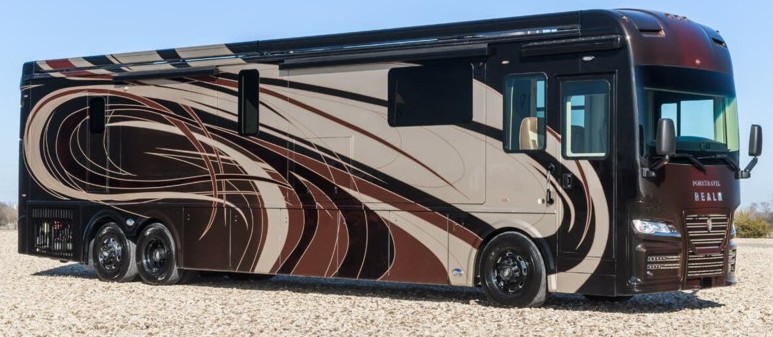

Exterior Options

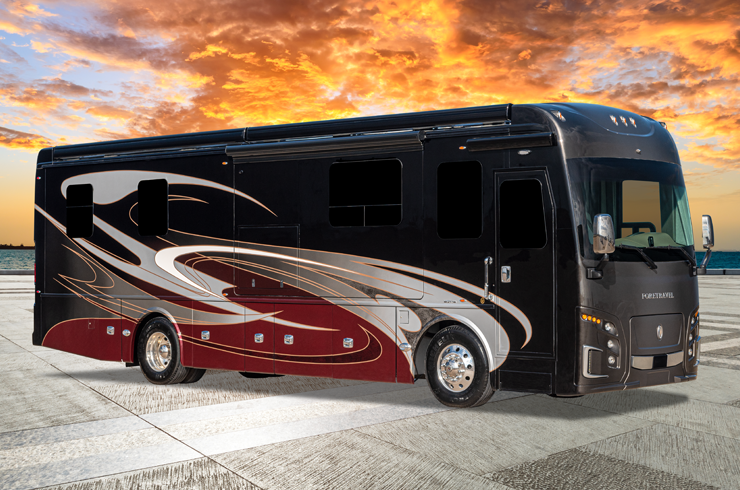

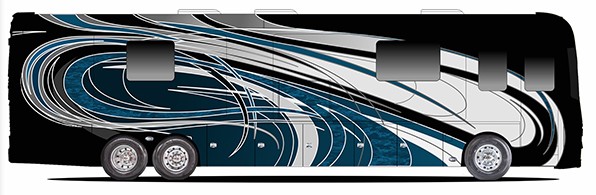

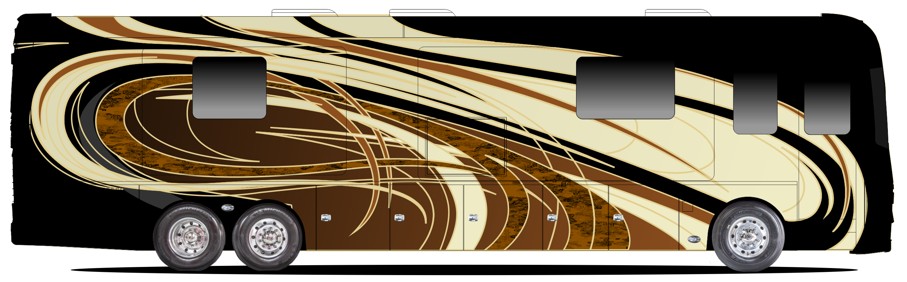

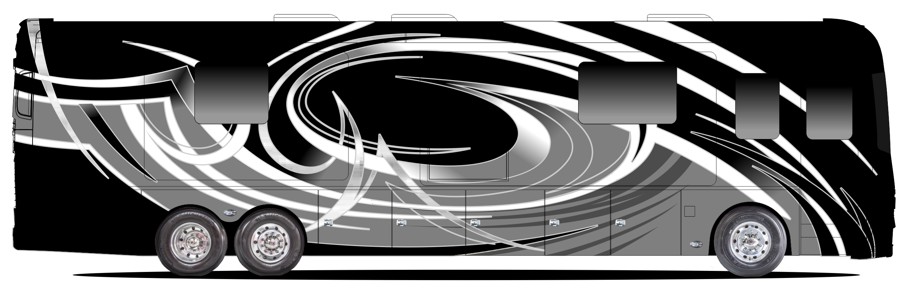

Xtreme-Schemes by Foretravel Far above the "4-color" industry norm, a Realm is a true rolling master piece of artwork. These multi-color exterior paint schemes include Intricate Designs and detailing that can include Custom Marbling, Ghosting, Metallics, Pearls, Fades and 7- coats of clear that can require approximately 650 man-hours per REALM!

Poseiden

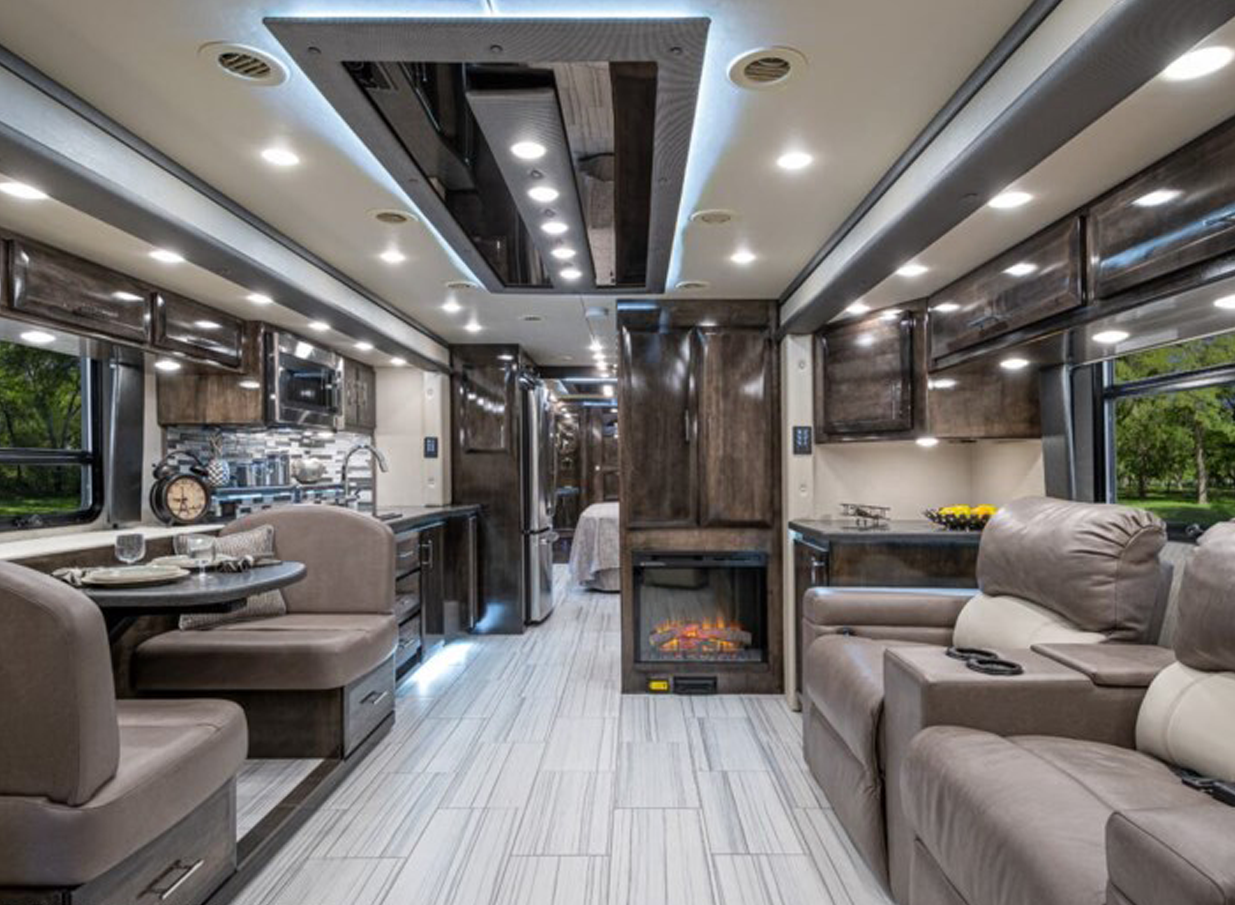

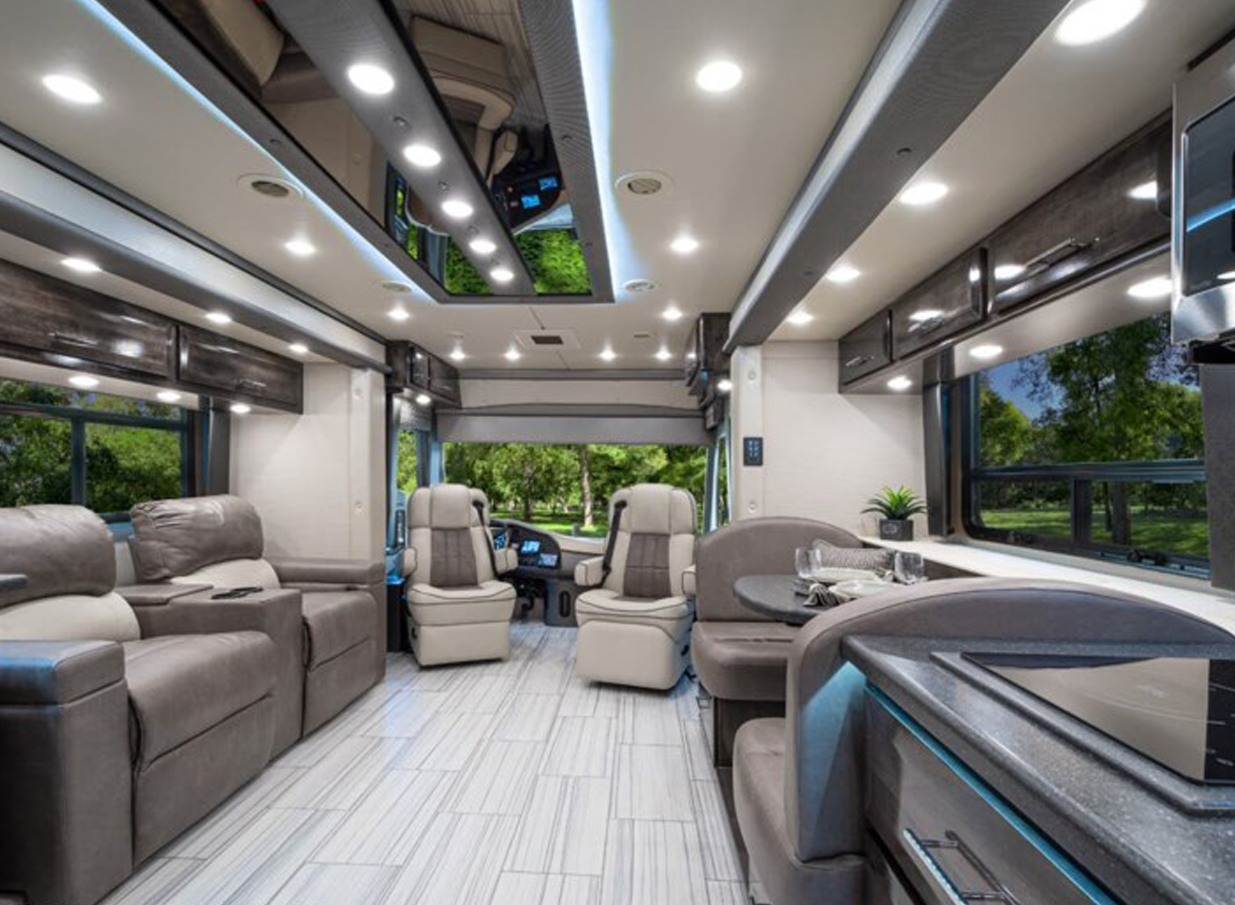

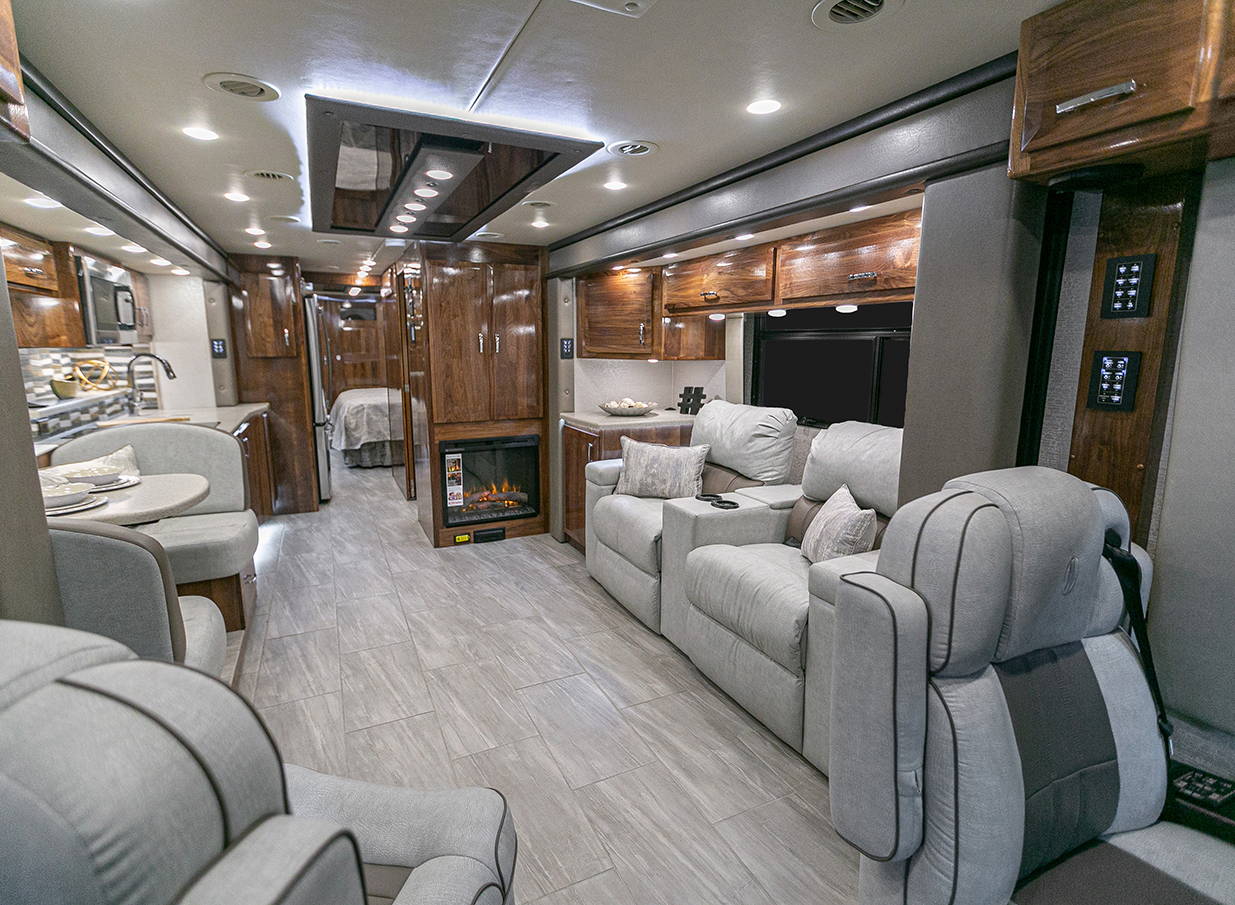

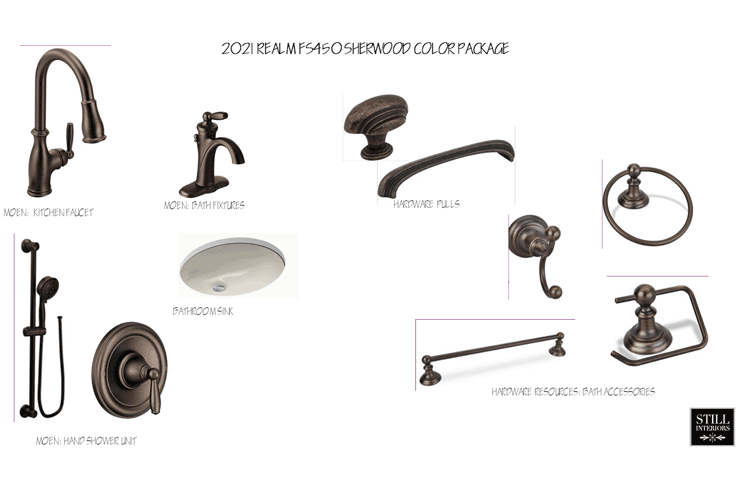

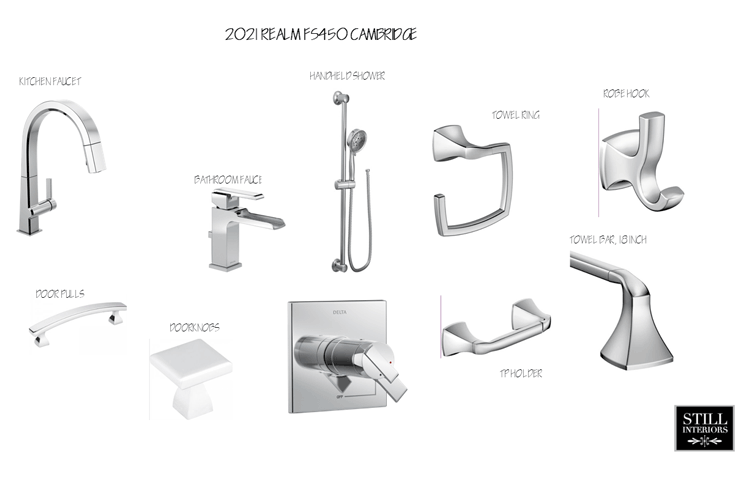

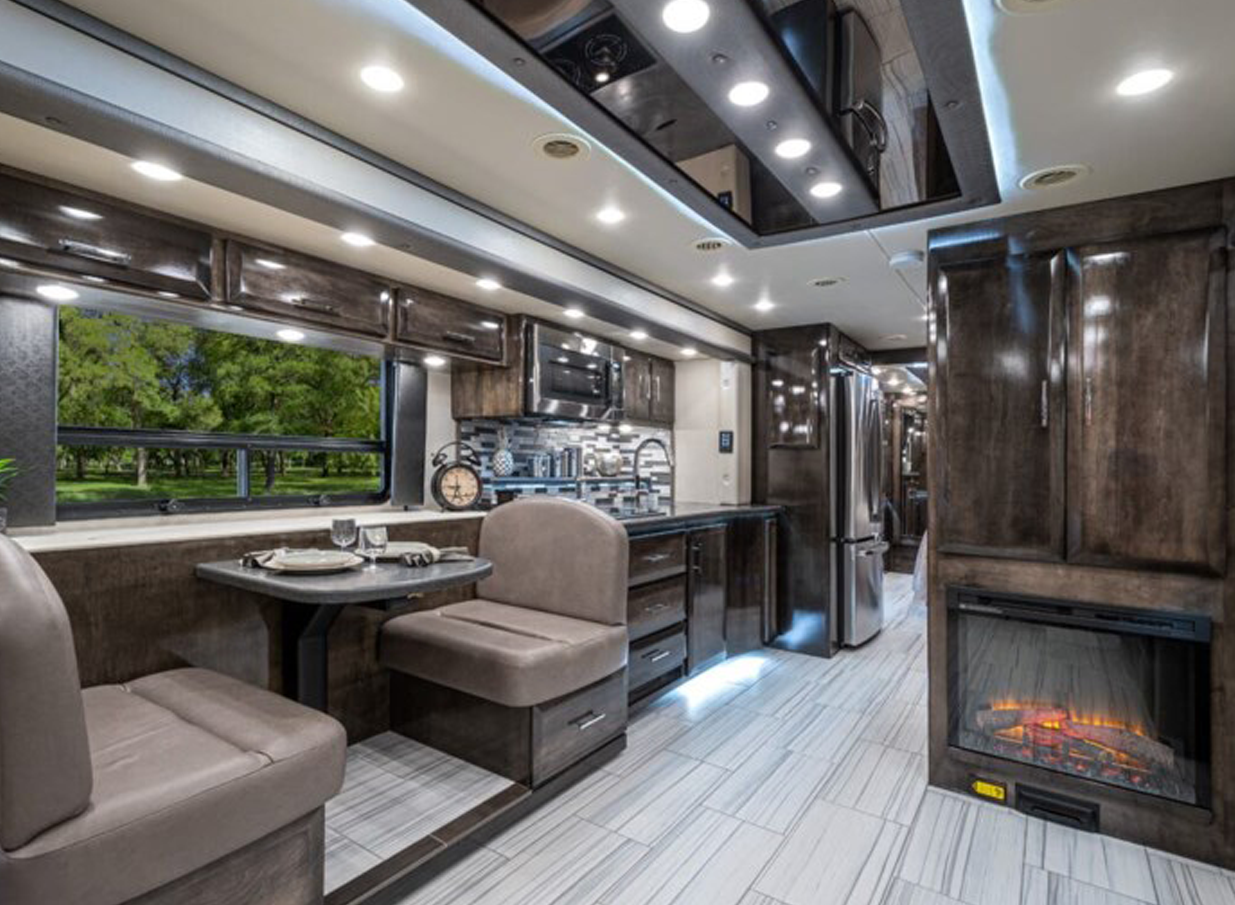

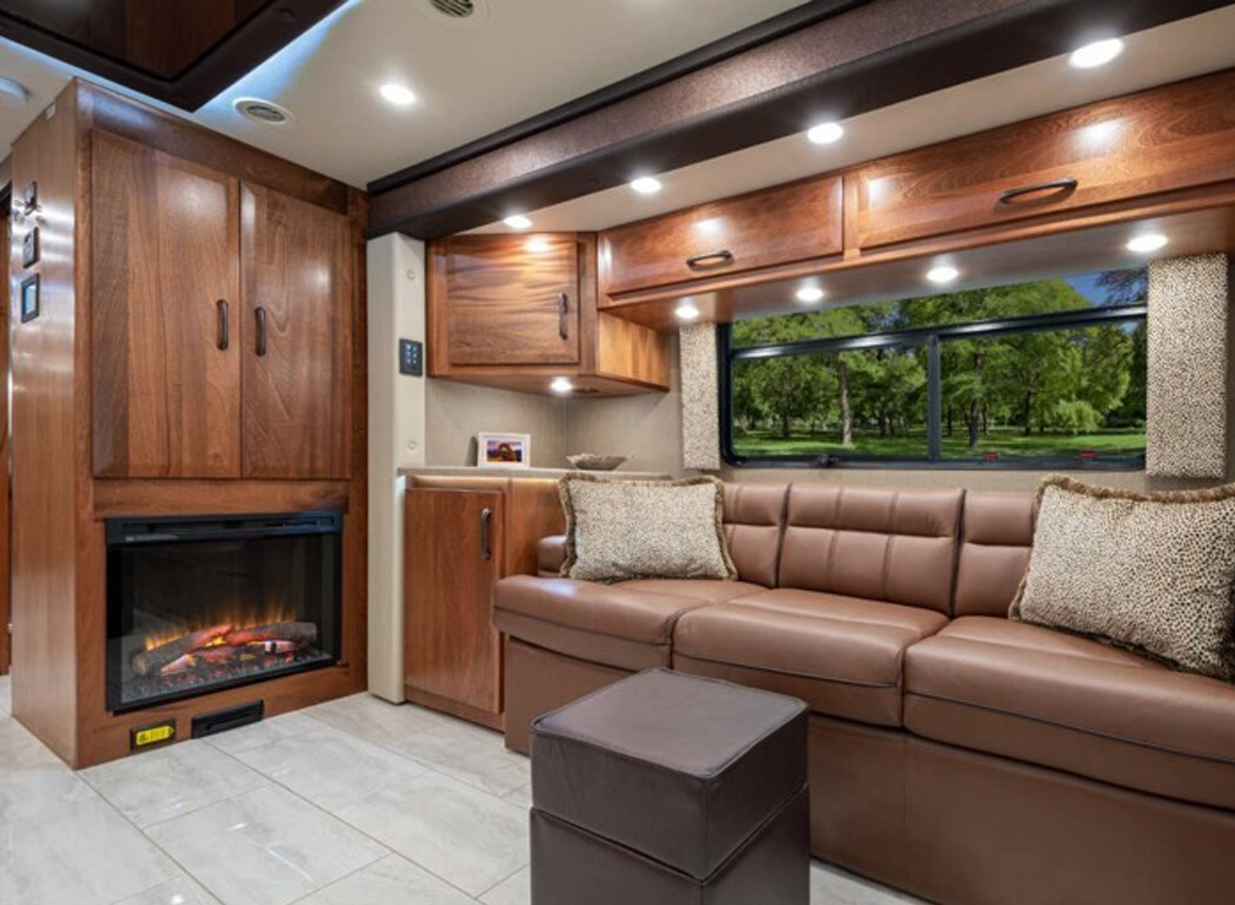

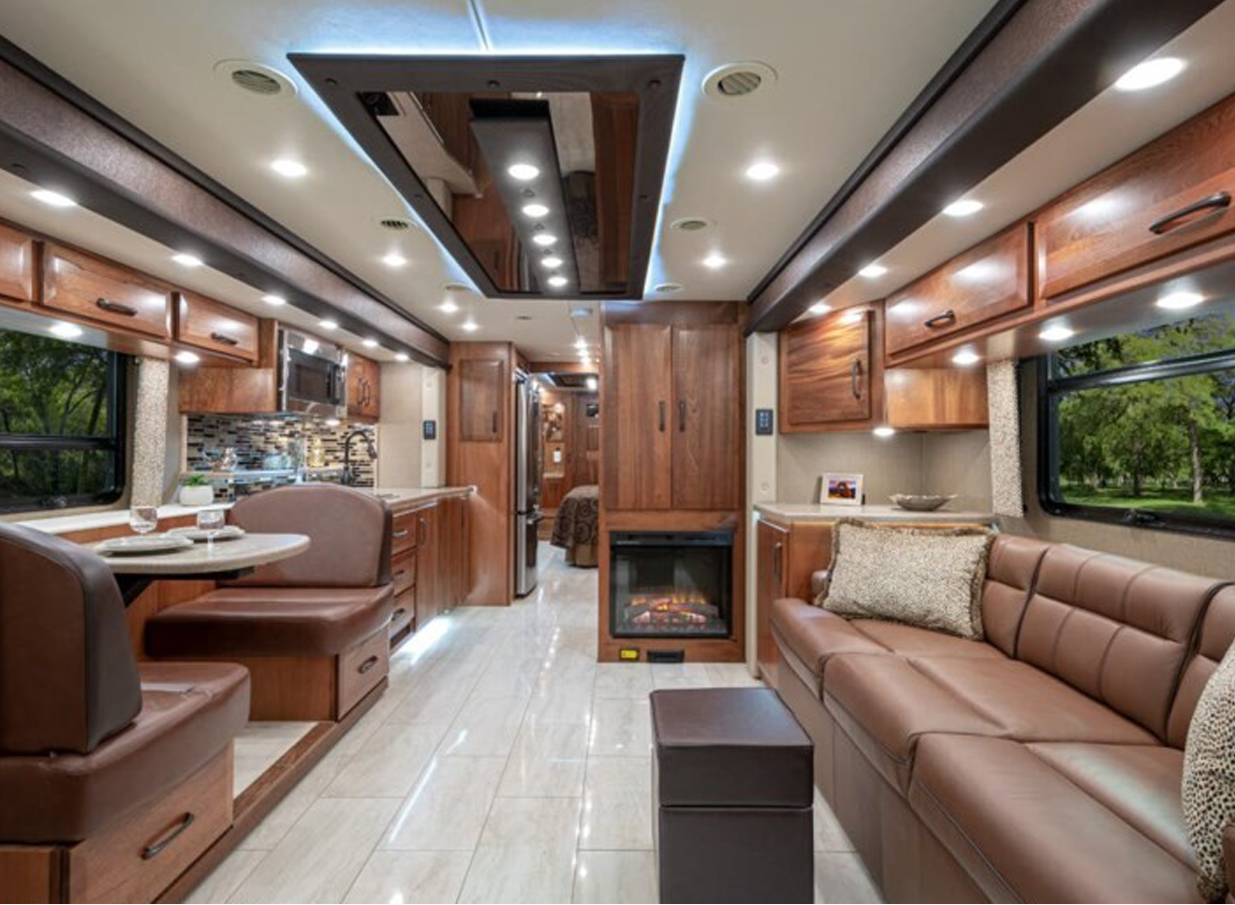

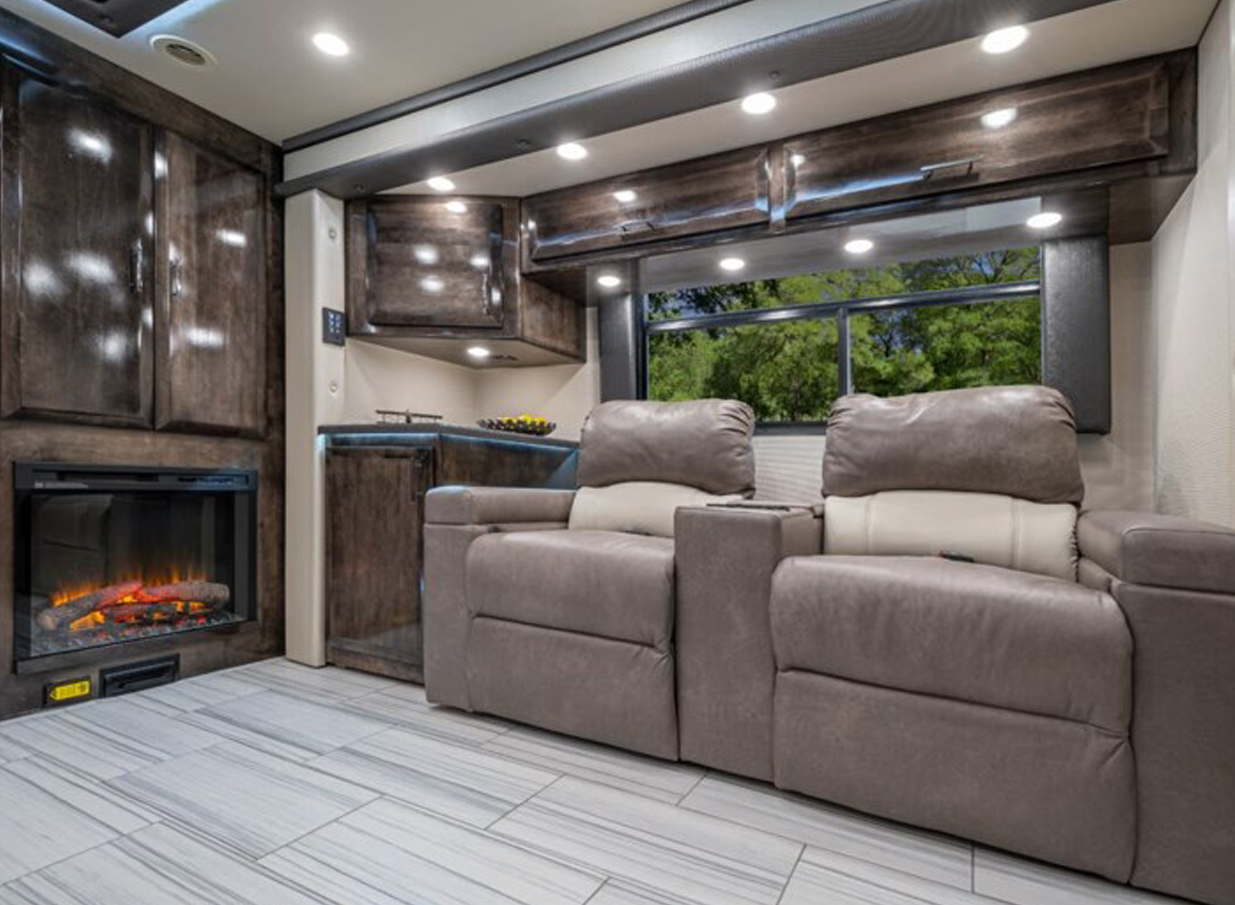

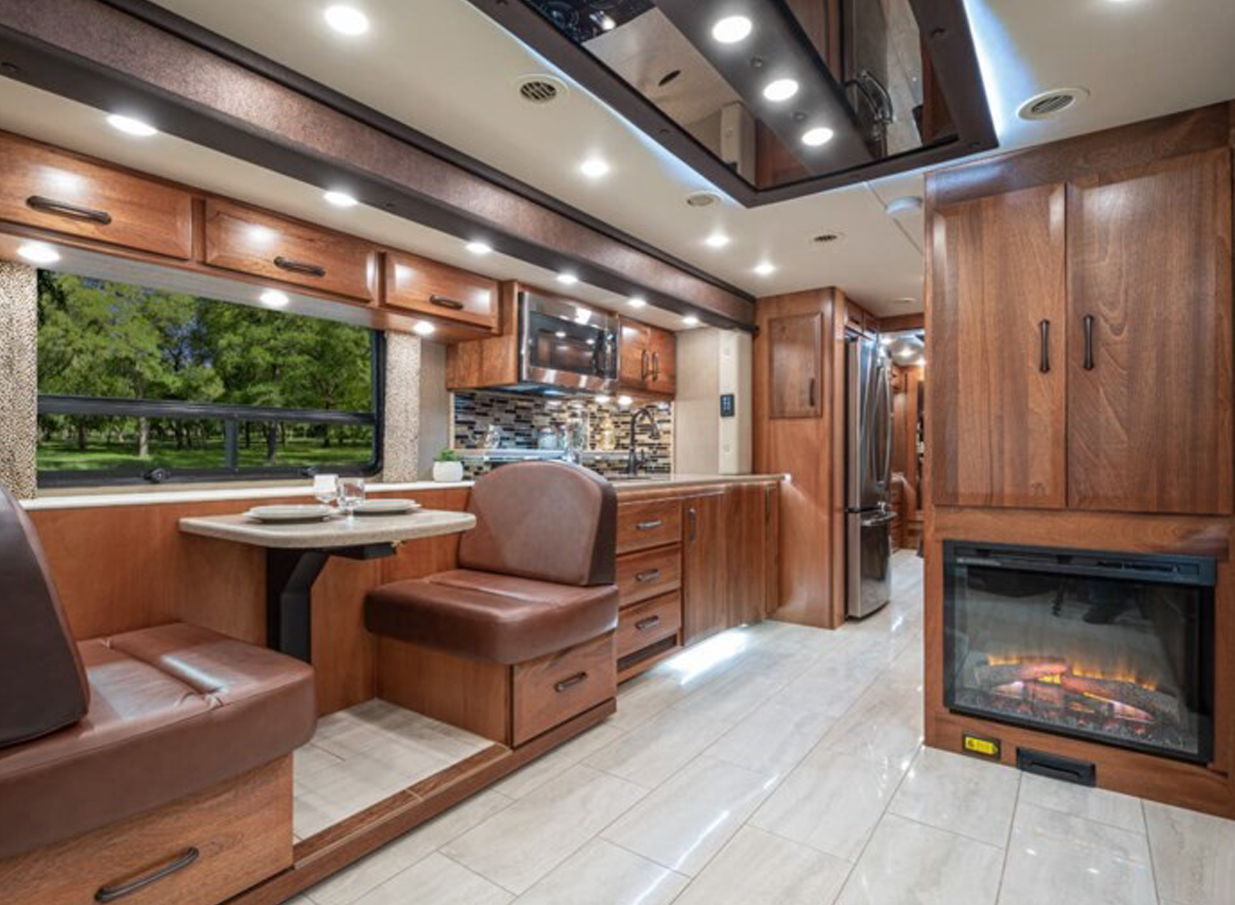

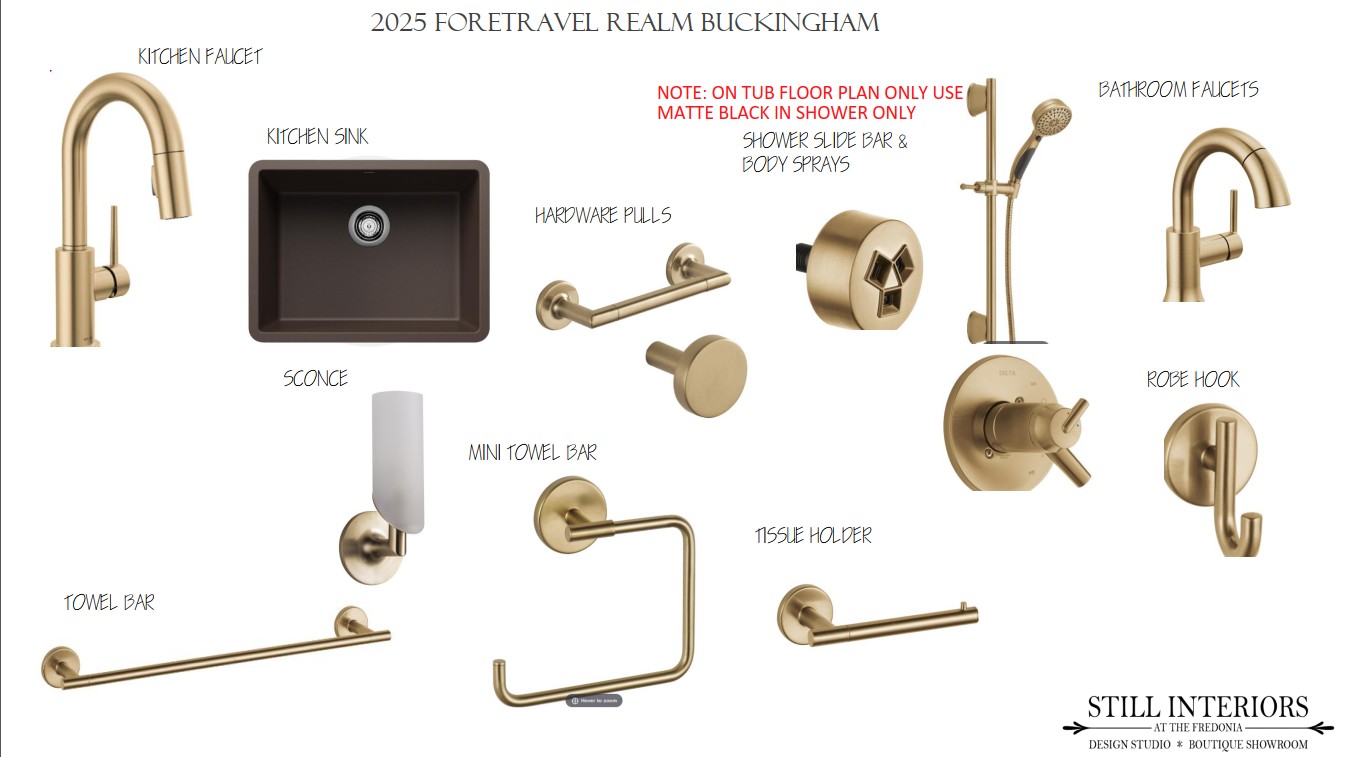

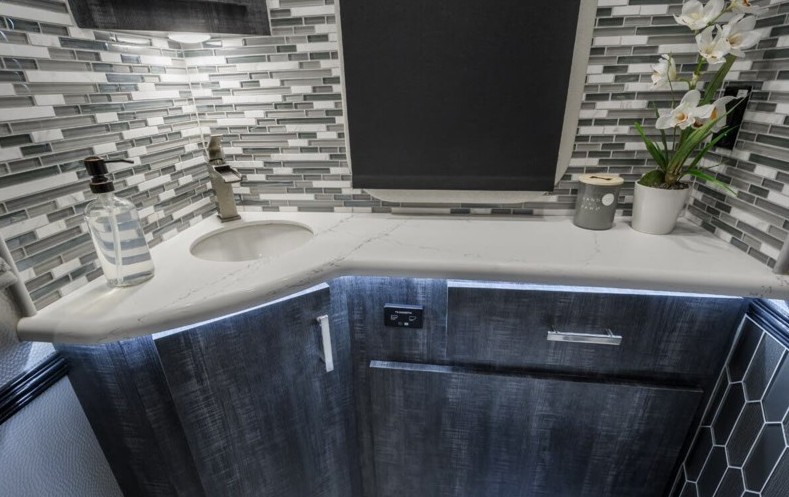

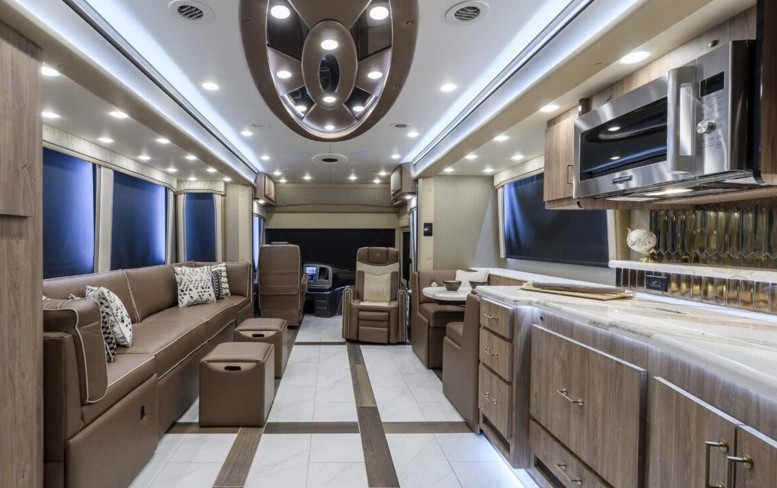

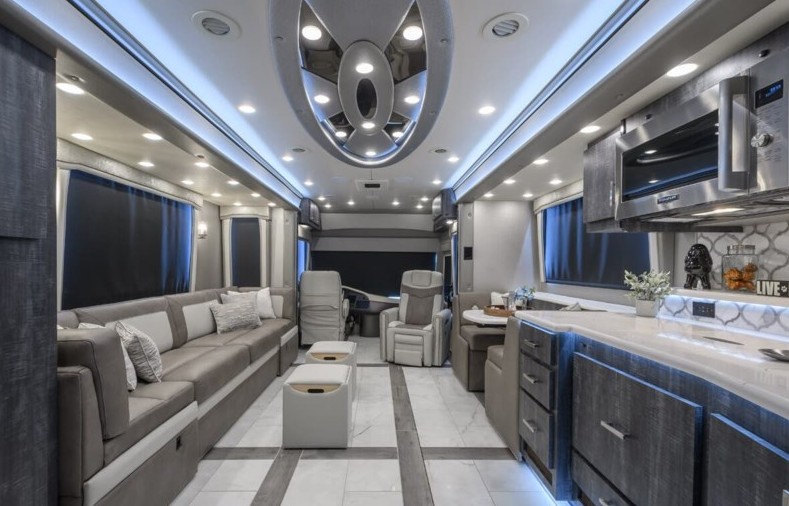

INTERIOR OPTIONS

All Foretravel REALM Interiors are professionally designed by a Licensed ASID Interior Designer with the greatest attention to detail for the end user in mind to truly provide you with a timeless masterpiece. The Custom Handcrafted Solid Wood Cabinetry will take you to the most timeless place your imagination can visualize.

SAFETY FEATURES

2026 Foretravel Realm FS605 Safety Features All Coaches Built to RVIA Specifications

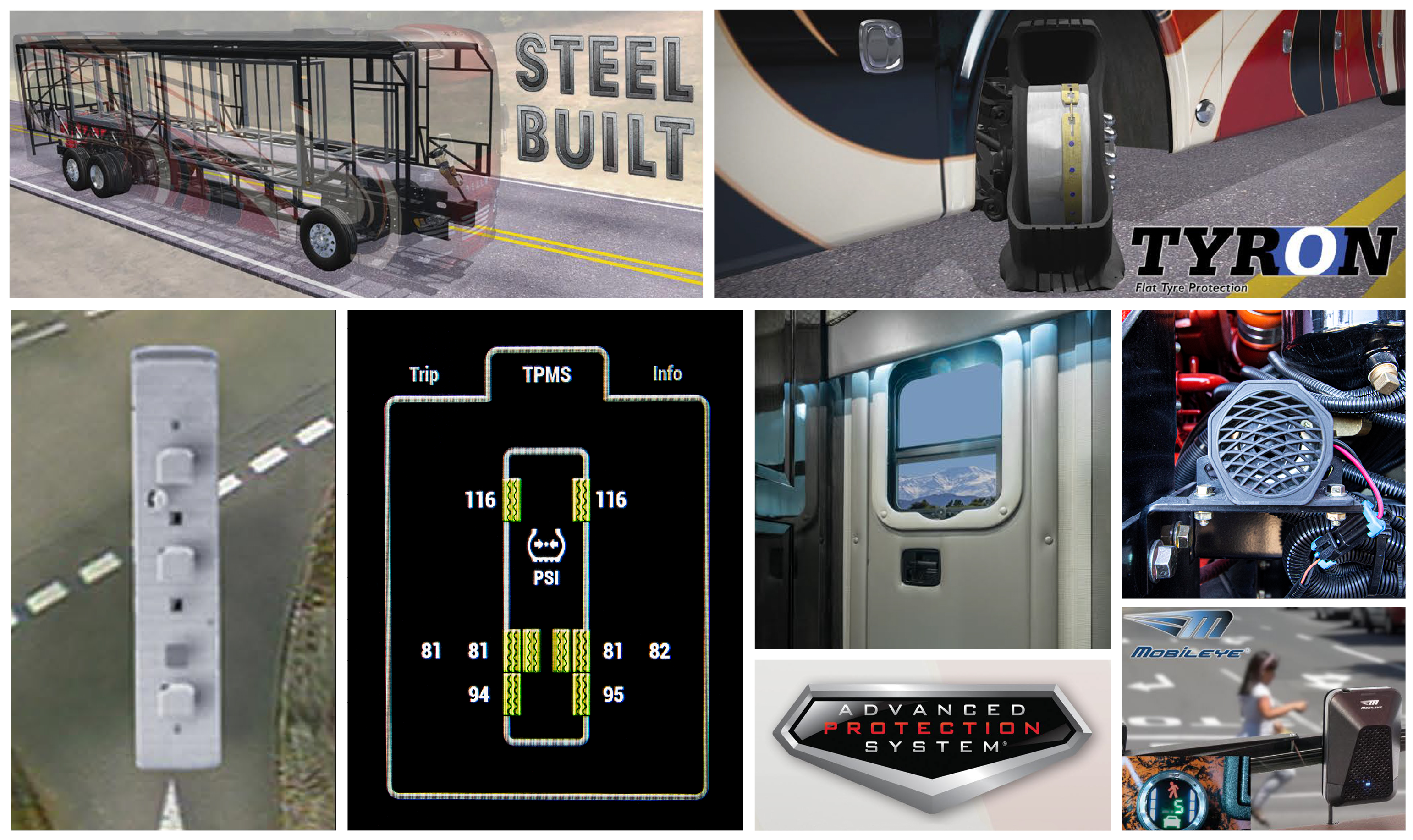

2026 Foretravel REALM FS605 Safety Features

  • Rear Egress Door with Integrated Ladder
  • Spartan Advanced Protection System
  • Collision Mitigation with Adaptive Cruise Control and Active Braking
  • Electronic Stability Control Automatically Brakes Individual Coach Wheels to Help Drivers Maintain Control During Extreme Steering Maneuvers
  • Automatic Traction Control (ATC)
  • Spartan Safe HaulTM The Industry's Only Chassis Integrated Air Brake System for Tow Vehicles to Supply Optimal Braking Performance.
  • Auto Headlights
  • Illuminated Entry‐Door Assist Handle
  • Daytime Running Lights
  • Sidewall Marker with Integrated Turn Signal
  • Tyron® Bead‐Lock Tire Blowout Protection (Front Tires)
  • Valor GEN 3 TPMS Tire Pressure Monitoring System with Display Integrated on Digital Dash
  • Fog‐Maker Engine Fire Suppression System
  • Rear Exit Door
  • Fire Extinguishers
  • Carbon Monoxide Detector
  • Smoke Detector
  • Delta Mobile 360 Camera System (6 Total)
  • Integrated on Side Mirrors
  • Mobile Eye 8 Collision Avoidance and Lane Departure Technology with Intelligent High Beam Control
  • Cameras Displayed on Passenger Monitor
  • Haptic Warning System on Driver Chair
  • Indicator on Dash Reporting Slides and Jacks are Stored Ready for Travel
  • Three GFI-Protected Circuits
  • Electronic Safe
  • Security System with Keyless Entry and Electric Storage Door Locks
  • Electric Storage Door Locks
  • Back‐up Alarm 107 decibels
  • CSA Approved / Transport Canada Approved
  • Certified Green by TRA Certification™
More

2026 Foretravel Realm FS605 Specifications

The Foretravel Realm FS605 is engineered to deliver exceptional power, performance, and reliability for long-distance luxury travel. Built on the renowned Spartan K4 chassis and powered by a 605-horsepower Cummins X15 engine, the Realm FS605 combines industry-leading engineering with the craftsmanship and innovation that define Foretravel motorcoaches. From advanced safety systems to impressive capacities and premium components, every specification is designed to provide confidence, comfort, and performance wherever the road may lead.

 2026 Foretravel REALM FS605 Specifications


CHASSIS FEATURES

Spartan K4 Chassis
Cummins X15 605 HP Engine
   • Peak HP 605 @ 1,800 RPM
Allison 6 Speed Transmission MH 4000
   • Peak Torque 1,950 ft/lbs. @1,200 RPM
Cummins Connected Diagnostics
Valid Air Suspension w/ VDC Control
HWH Four-Point Hydraulic Leveling Jack System
Spartan Safe Haul
Three-Stage Engine Brake with On/ Off Switch
ABS Anti-Lock Braking System with Automatic Slack Adjusters
Electronic Suspension Control System w/ Self Leveling Feature
Rain Sense for Windshield Wiper Controls
Air Disc Brakes on all Wheels
Air Hose for Tire Service
Airline with Quick Connect
Alcoa Aluminum Wheels with Dura-Bright Protection on All Aluminum Wheels
Alternator - 270-amp: Leece-Neville
Automatic Traction Control (ATC)
Auxiliary 12V Air Compressor
Fuel Filter / Water Separator
Side Mounted Radiator
Electric Engine Block Heater with 120V outlet in Service Bay
Heated Automatic Air Reservoir Drains with Lanyard
Remote Engine Oil Fill and Transmission Level Check
Front Axle - IFS (Independent Front Suspension)
Performance Choice™ - Anti-Roll Bar with Selectable Drive Modes
Rear Axle Ratio: 4.30:1
Passive Steer Tag Axle with 17 Degree Turning Radius

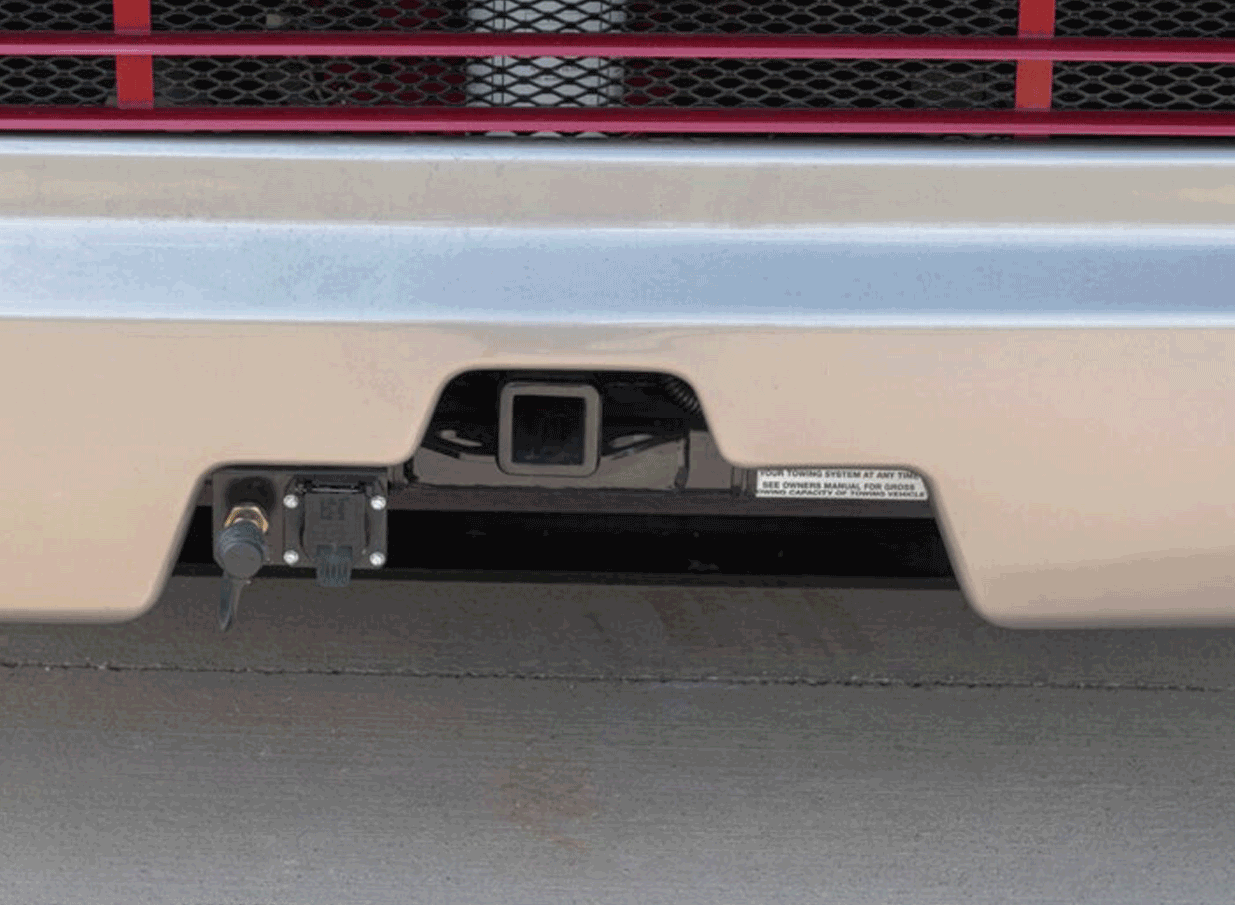

20,000-lb. Towing Capacity/ 2,000-lb. Hitch Tongue with 7/4-Pin Plug
Michelin Tires: Front 365/ 70R 22.5” Rear 315/ 80R 22.5”
3 Year Spartan Scheduled Maintenance Included
No Deductible 24/7 Roadside Assistance for 1 Year
Complimentary Spartan Care Kit

EXTERIOR FEATURES

Foretravel Exclusive Fore-Slide™ Flangeless Pneumatic Seals on All Slide Rooms
Entry Door Awning
Passive Keyless Entry for Entry Door (PKE) with Illuminated Handle
Passenger Side Patio Awnings, Two Roof-Mounted Electric Patio Awnings with LED Lights on Passenger Side
Driver Side Patio Awning Shells, Two Roof-Mounted Patio Awning Shells
Slide-out Topper Awnings - Painted Base Color
Outdoor Entertainment Package in the Slide Room
380-Watt Solar Panel Package

Storage Bays:

  • Lights in Storage Bays
  • Feezer on Slide Out Tray
  • Push Button Bay Doors with Electric Locks
  • Two Electric Sliding Cargo Trays
  • Carpeted Storage Bays
  • Newly Redesigned Electronics Bay

Dual-Pane Tinited and Insulated Windows
Easy View One-Piece Windshield
Electric Executive Entry Step
Cosmolite Roof - One Piece, Stain and UV Resistant

LED Lights:

  • Four Docking Lights
  • Color Changing Ground Accent Lighting
  • Xenon Low-Beam Headlights
  • Marker Lights
  • Foretravel Projector Puddle Logo Light on Bottom of Door
  • Fog Lights
  • High Beam Headlamps
  • Porch Lights

FRP Sub Flooring
Heated/ Remote Chrome Mirrors with LED Turn Signals
Fresh Water Plumbing Supply Manifold with Newly Redesigned Stainless Steel Water Manifold Cover Panel
Xtreme-Scheme™ Paint Designs with:
    Paint Protection Below Windshield - Armor Coat
    Full Body Exterior Paint with Multiple Clear Coat Finishes
Roof AC Drains (Exterior)
Trailer Wiring - 7 Pin Connector
Dual Fuel/ DEF Fill Locations (Newly Increased Fuel Venting for Ease of Filling)
Improved Spartan Service Center Bay with Better Accessibility to Maintenance Items
Utility Station:

  • 50 Amp Glendinning Shorline reel w/ 36' cord
  • Laser Etched Stainless Steel Utility Bay Panels
  • Cable TV Connection
  • Sewer Connection Above the Cargo Floor in the Utility Bay
  • Fresh Water Connection
  • Tank Level Monitor Screen
  • Water Faucet with Soap Dispenser
  • Single Waste Tank with Electric Valves and Grey Water Bypass
  • Water Pump & Water Fill Controls
  • LED Accent Light in Stainless Steel Panel
  • Sewer Connection Above the Cargo Floor in Utility Bay
  • Electric Utility Reels - Water and Power

DASH and COCKPIT FEATURES

New Dash Design
Memory Features for:
    • Pedals
    • Steering column
    • Mirrors
    • Driver Seat
   • Dash Settings, such as for the cameras, layout, and  accent lights
Passive Keyless Start (PKS)
15” Digital Valid Dash w/ VDC Control
Dimmable LED Accent Lights below the Dash
Wireless Phone Charger at Passenger Chair
Wireless Phone Charger at Driver Console
Illuminated Cup Holders
Passenger Magazine Rack with Phone Storage and 120V/ USB Charger Receptacle
Motorized Driver Window
Padded Dash Top
2 Dual USB Charge Receptacles
Battery Boost Switch/ Auto-Charge
Cameras - 8 Total:
    • 2 Side Mounted Integrated in Mirrors
    • 6 Perimeter 360 Delta Mobile Camera System
Dedicated Driver Monitor Camera Display for All Cameras
Dash AC Fan Controls for Co-Pilot
Generator Auto Start/Stop
Xite G4 Infotainment System:

  • GPS, AM, FM, Sirius/XM (Subscription Required), Bluetooth, USB, and iPod Compatible
  • Integrated Cockpit Controls
  • Increased Display Monitor Sizes to 9"
  • Apple CarPlay Compatible

Passenger Touch Screen Monitor with GPS and Camera Display
Map Lights, Pilot, and Co-pilot
Suspended Power Adjustable Throttle and Brake Pedals
Villa 6‐Way Power Adjustable Driver Chair with Heat, Cool, and Massage Feature (With Haptic Warning System)
Villa 6-Way Power Adjustable Residential Co-Pilot Chair, Motorized Footrest/ Headrest with Heat, Cool, and Massage Feature
Premiere Steer™ Steering Column Assist System
Power Tilt and Telescoping Steering Column
Tri Touch Smart Wheel with Radio Controls, Cruise and ICC Controls, and Phone Control Integration
Electric Windshield/ Privacy Shade and Sunblock

APPLIANCES • ELECTRONICS • LIGHTING • AUDIO-VIDEO

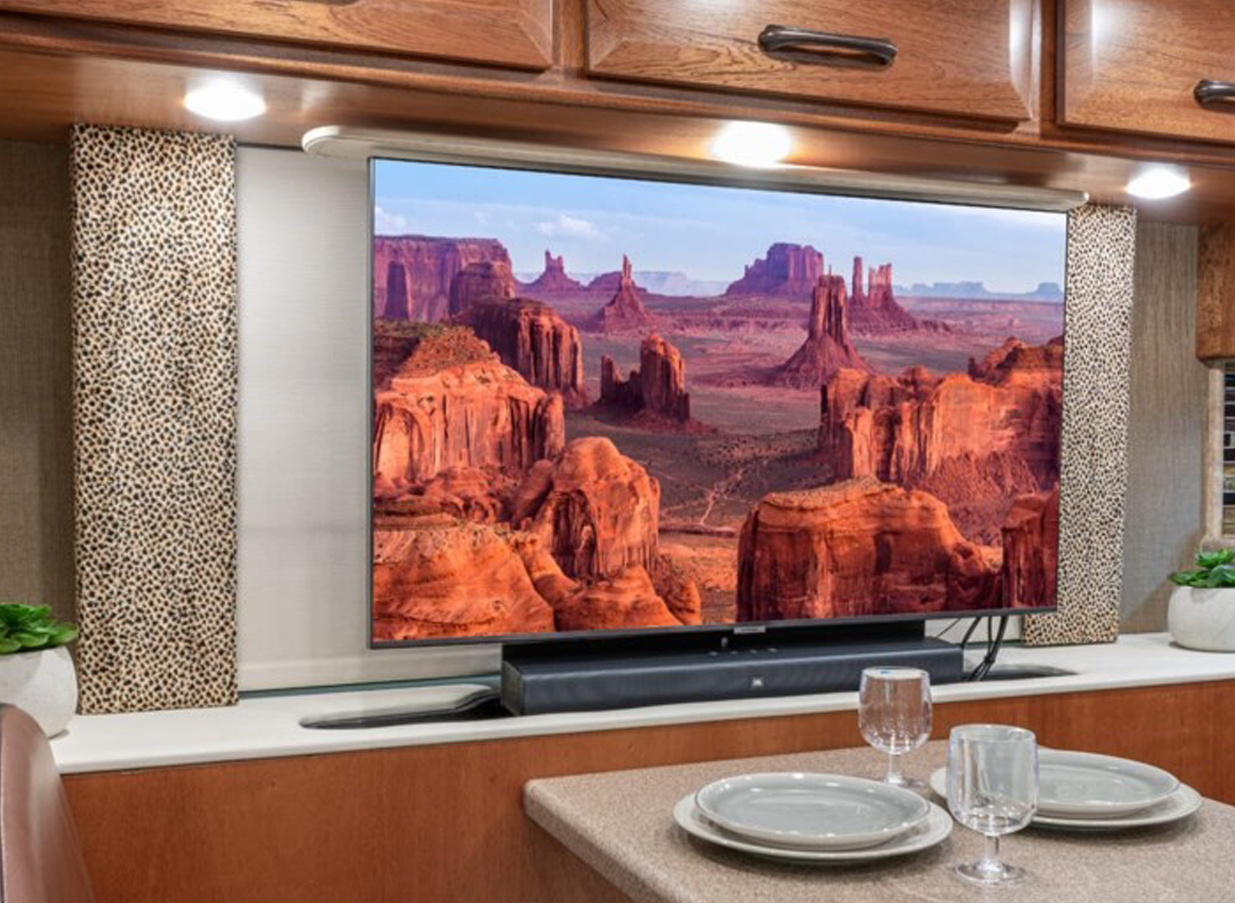

4K 55” LED Smart TV in Living Room (Front Fold Down, Floorplan Dependent)
4K 65” LED Smart TV (LV2 Floorplan Only)
4K 50” LED Smart TV in Bedroom on Lift with Soundbar
4K 43” LED Smart TV Outside in Patio Entertainment Package With Soundbar
1080P 32” LED Above Sofa (Floorplan Dependent)
Silverleaf Total Coach Control System with New 7” Screen
All Touch Pad Screens to be 5”
Touch Pad Behind Driver's Chair for Lighting and Shade Operation
Apple iPad with AV and Multiplex Lighting Control
Wi‐Fi Ranger, Converge Model
Consolidated Back Up Controls for Thermostats, Water Pump, Water Fil,l and RVC Reset
All AV Equipment mounted in the rack except on the Bunk Floor Plans
Audio-Video:

  • HDMI and CAT6 Shielded A/V Cabling
  • 5.1 Surround Sound System in Living Room
  • Sound Bar in Bedroom
  • Winegard-Rayzar Automatic Domed HDTV Antenna
  • StarLink Roof-Mounted Antenna

Appliances:

  • Convection Microwave
  • Residential Refrigerator
  • Two Burner Induction Cook Top Recessed with Cover

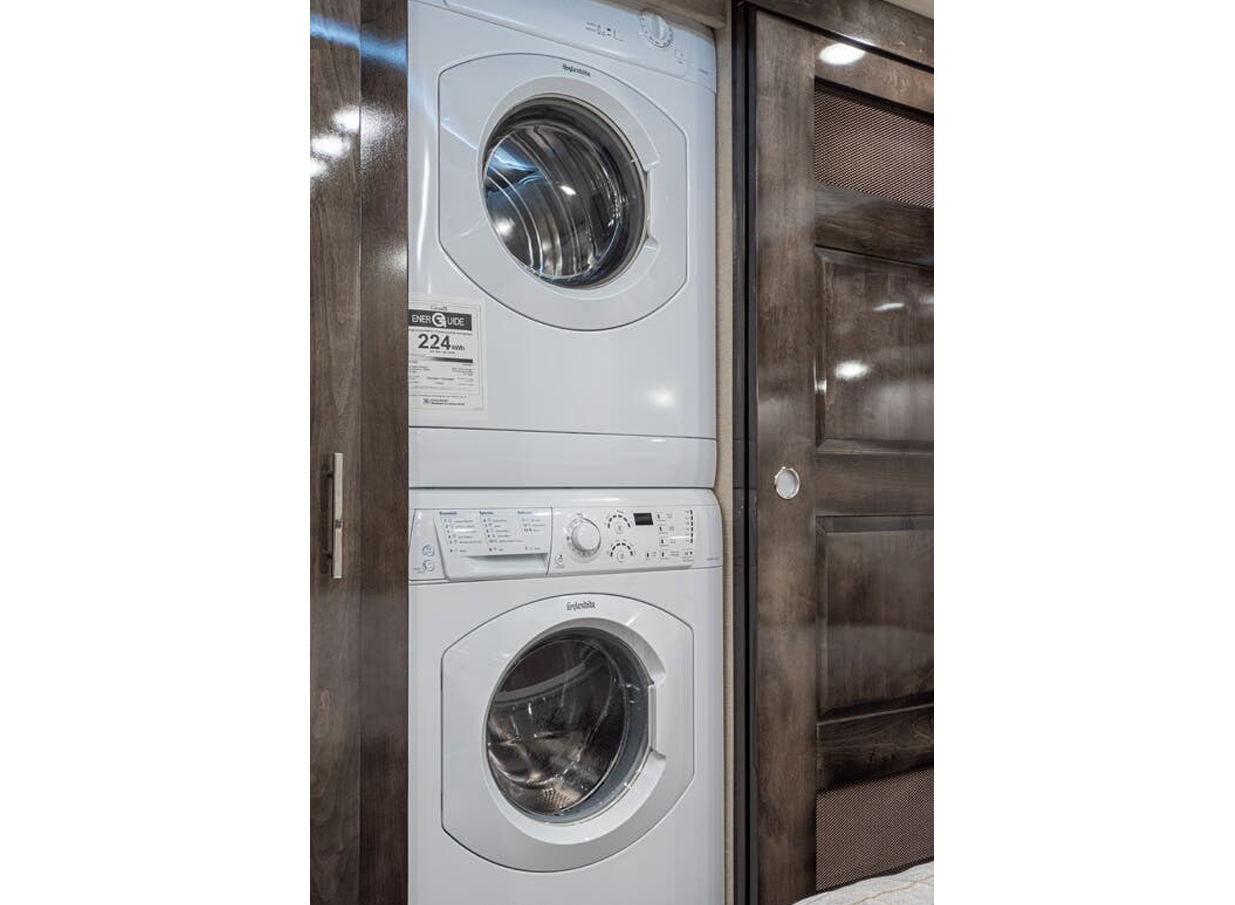

  • Washer/Dryer with Pull-Out Shelf (Floorplan Dependent)
  • Combination Washer / Dryer (Bunk Floorplan Only)
  • Fisher Paykel Dish Drawer

Dimmable Interior LED Lighting:

  • Under Countertops
  • Window Trim
  • Toe Kicks
  • Entry Door
  • Floor
  • Reading Lamps
  • LED Accent at the Toe Kick of Cabinets

ARGB light controller for the color-changing lights

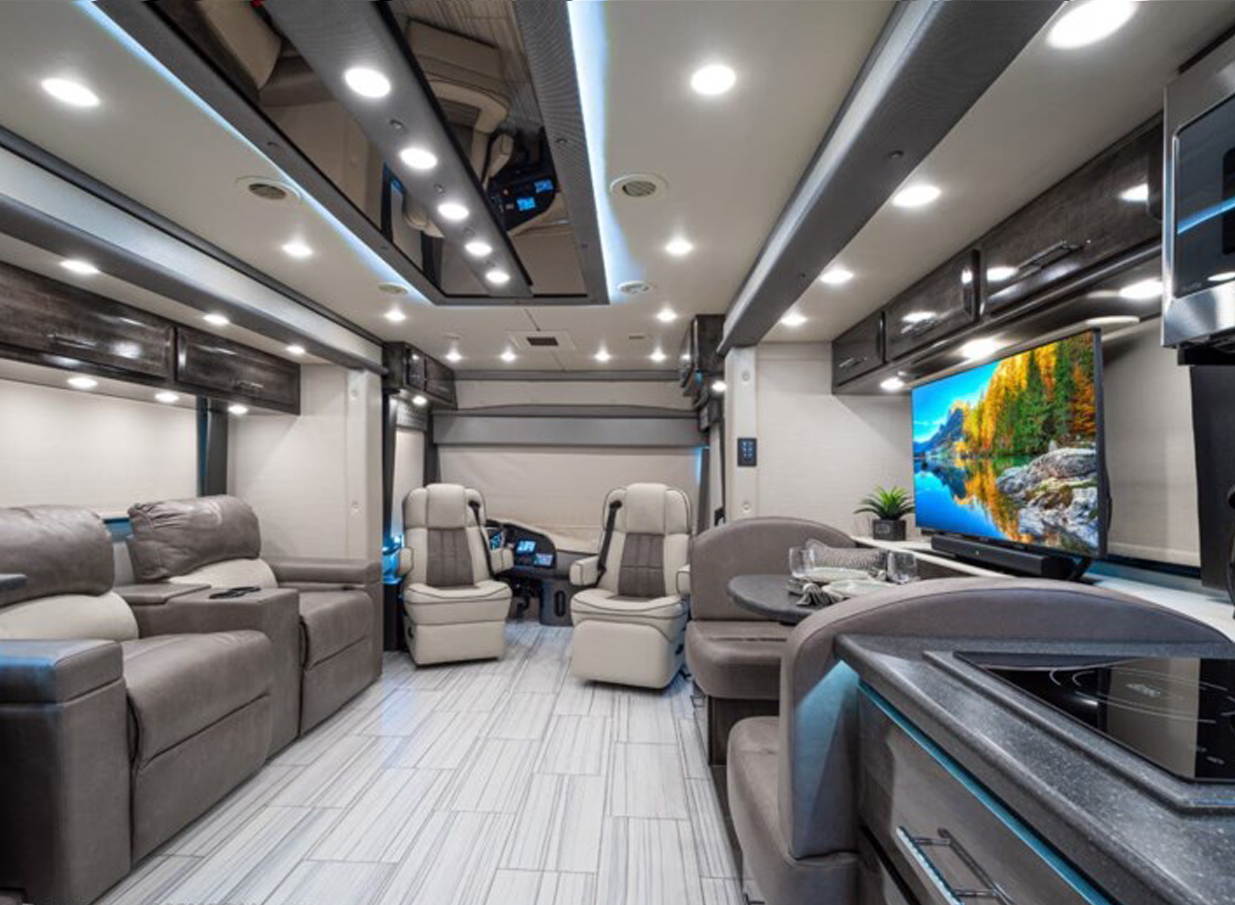

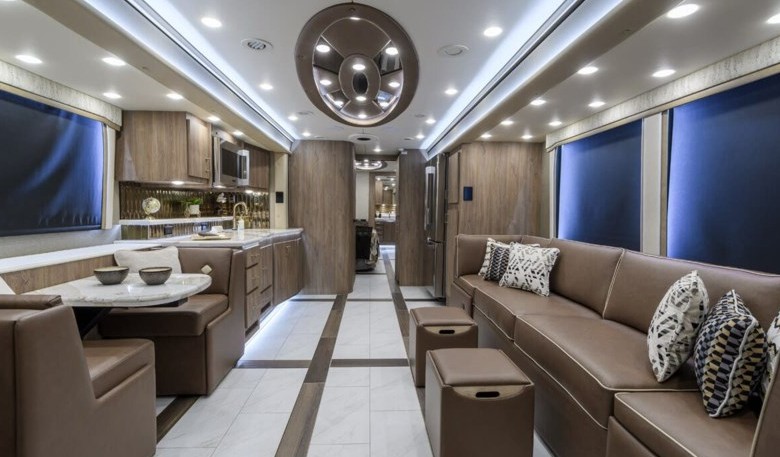

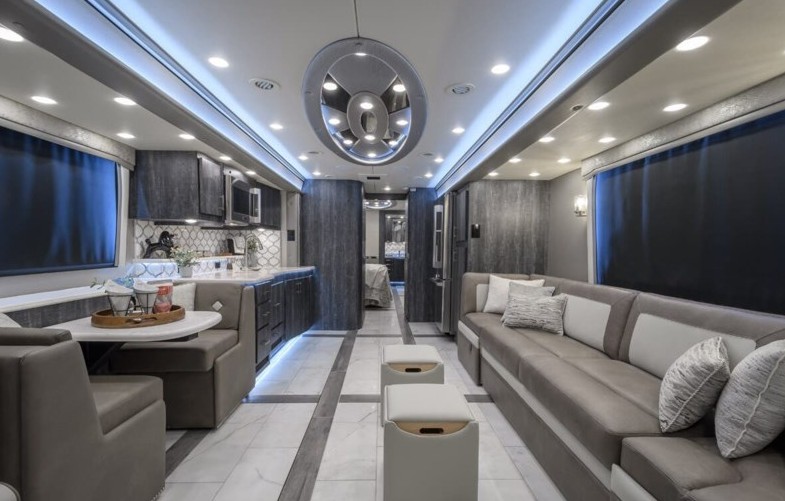

INTERIOR LIVABILITY FEATURES

Hand Crafted Wood Cabinetry
Cambria Natural Quartz Countertops
Filtered Ice and Water Dispenser
Uvia Lite added to Waste Tank (No Chemicals Required)
Soft Close Pocket Doors (Single Door Only)
Tile Flooring Throughout Coach
Full Flush Floor Front to Rear
120V Outlet with Dual USB Charge Ports in LR and BR
Multiplex Lighting System
Powered Step‐Well Cover with Two Switch Locations
Motorized Table (Floorplan Dependent)
Foretravel Professionally Designed Bedding and Throw Pillows
Foretravel Professionally Designed Window Treatment with Electric Day/ Night Shades
Built-in Vacuum with Hose Connection
Beveled Mirrors on Medicine Cabinet
Fireplace (Floorplan Dependent)
Soft Close Full Extension Ball Bearing Drawer Tracks
Leather Coverings on Seating Surfaces
Sofa with Integrated Air Bed

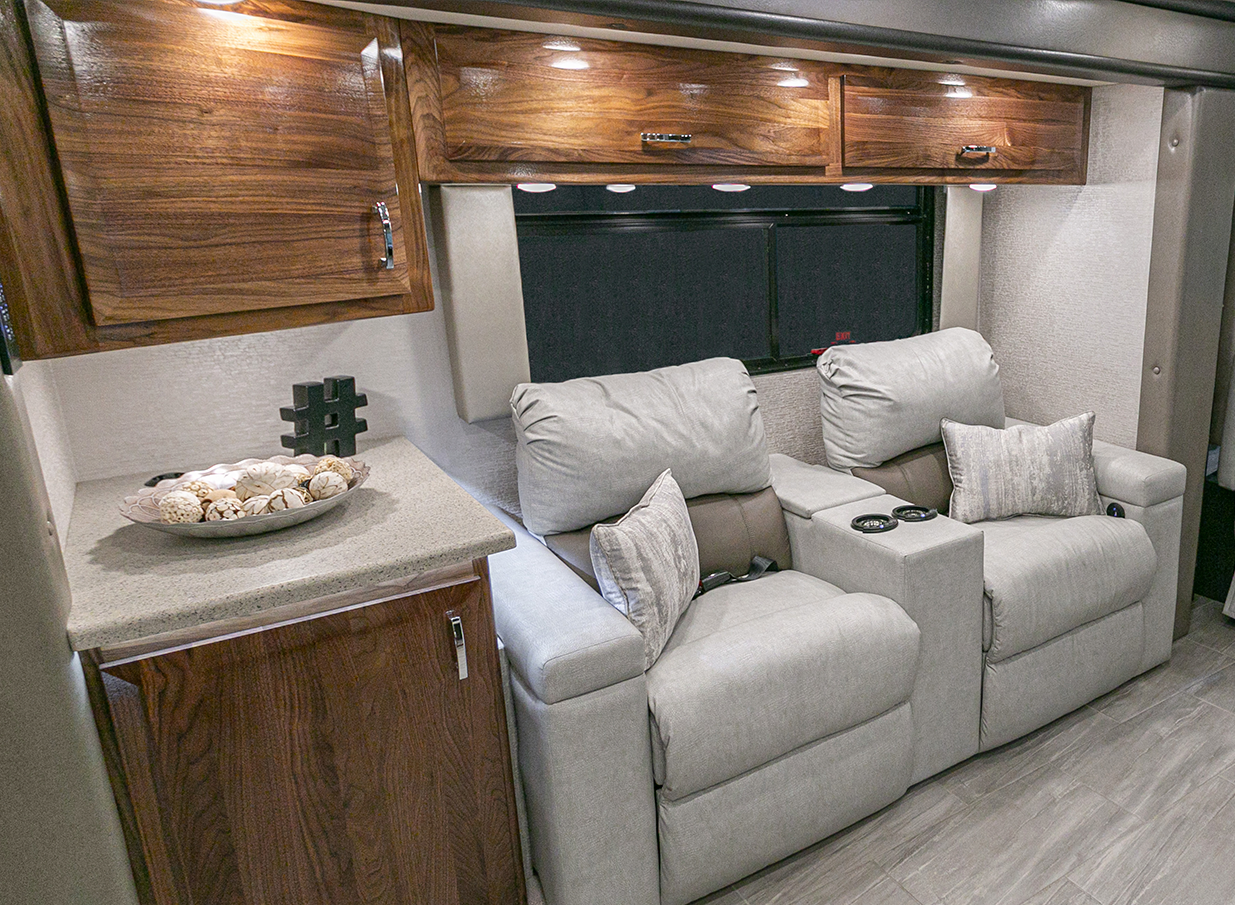

Luxury Villa 2 Living Room Seating Options: Theatre Seating, Double Lounge Chaise, and Sofa with Motorized Recliners on Each End
Luxury Villa Bunk Models Have Newly Redesigned Bunks to Increase Interior Bunk Space
CPAP Provision above Bed with 120v Receptacle in Overhead
LED Accent Lights at Entry Steps
Bunk Floor Plan, Top Bunk Motorized to Allow for Additional Storage/ Closet
Nonskid strips at the entry door
Entry mat for the steps and landing

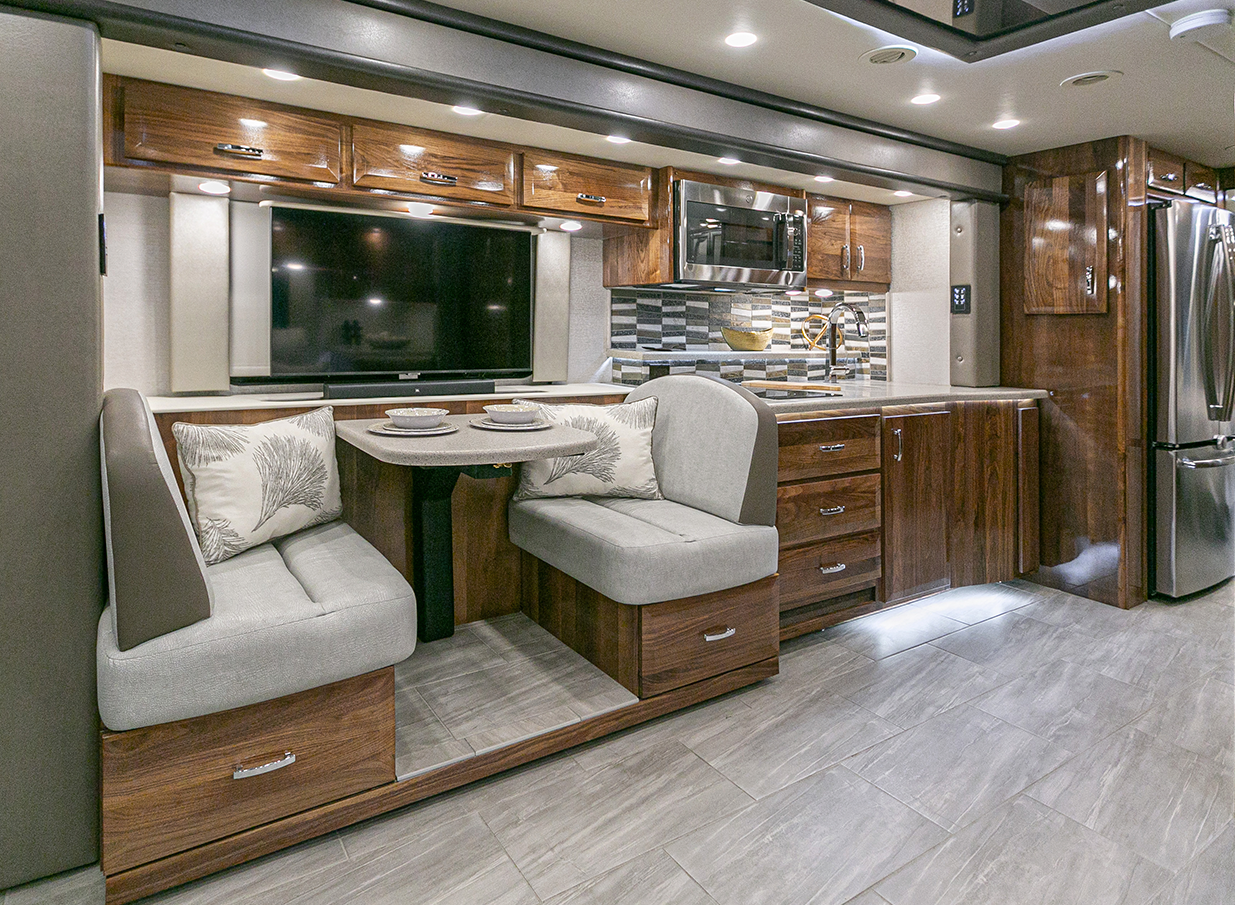

KITCHEN

Kitchen Utility Drawer
Kitchen Pantry
Kitchen Countertop Extension
Single Bowl Kitchen Sink with Covers

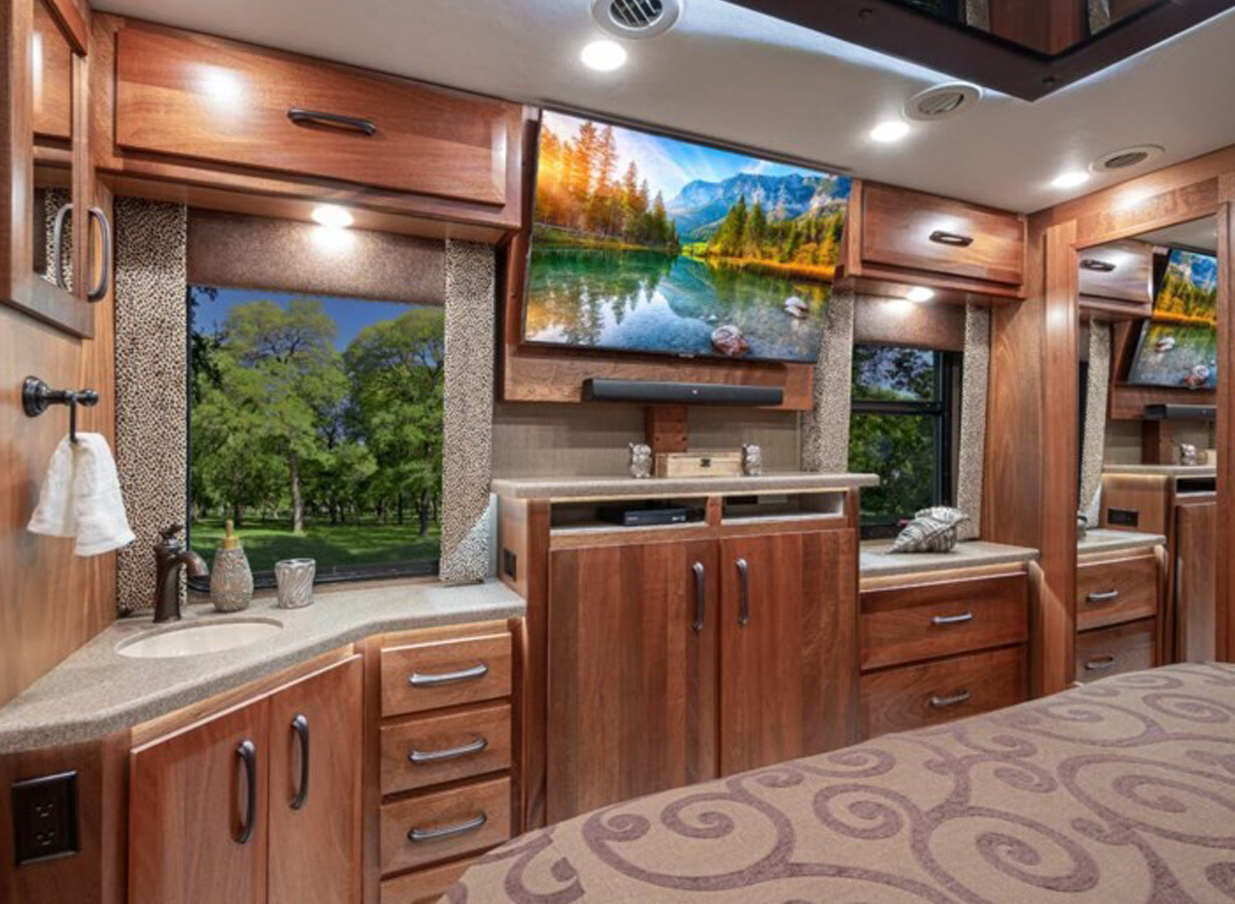

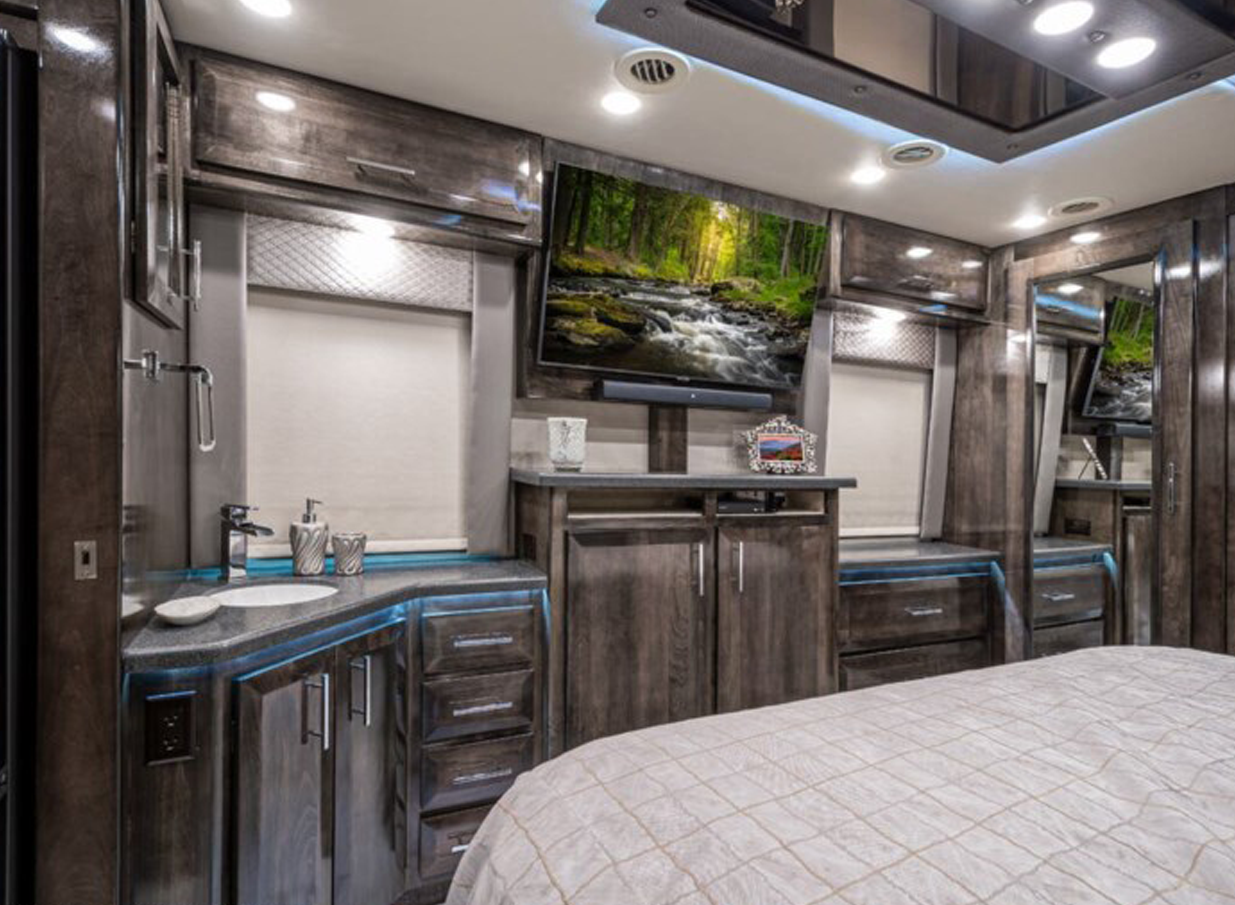

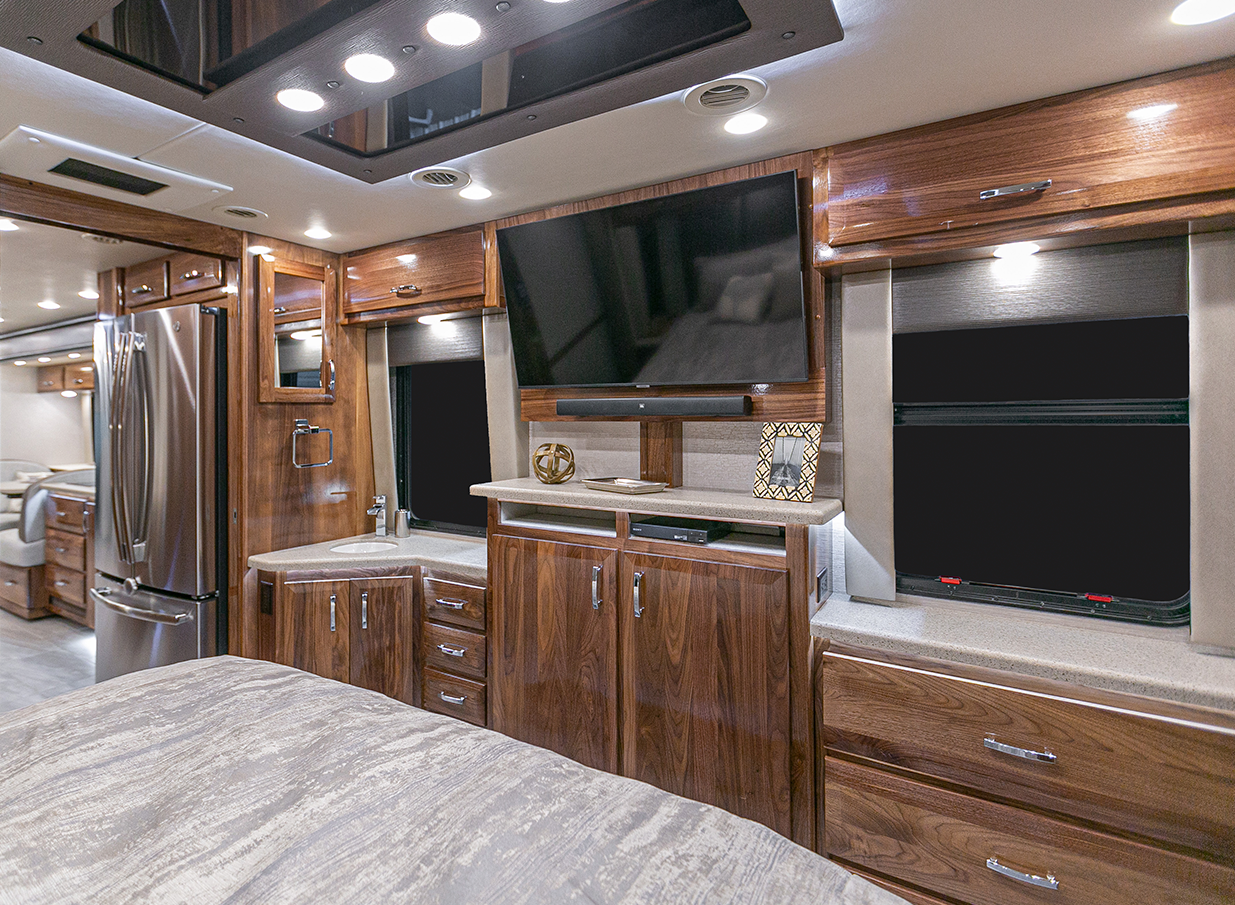

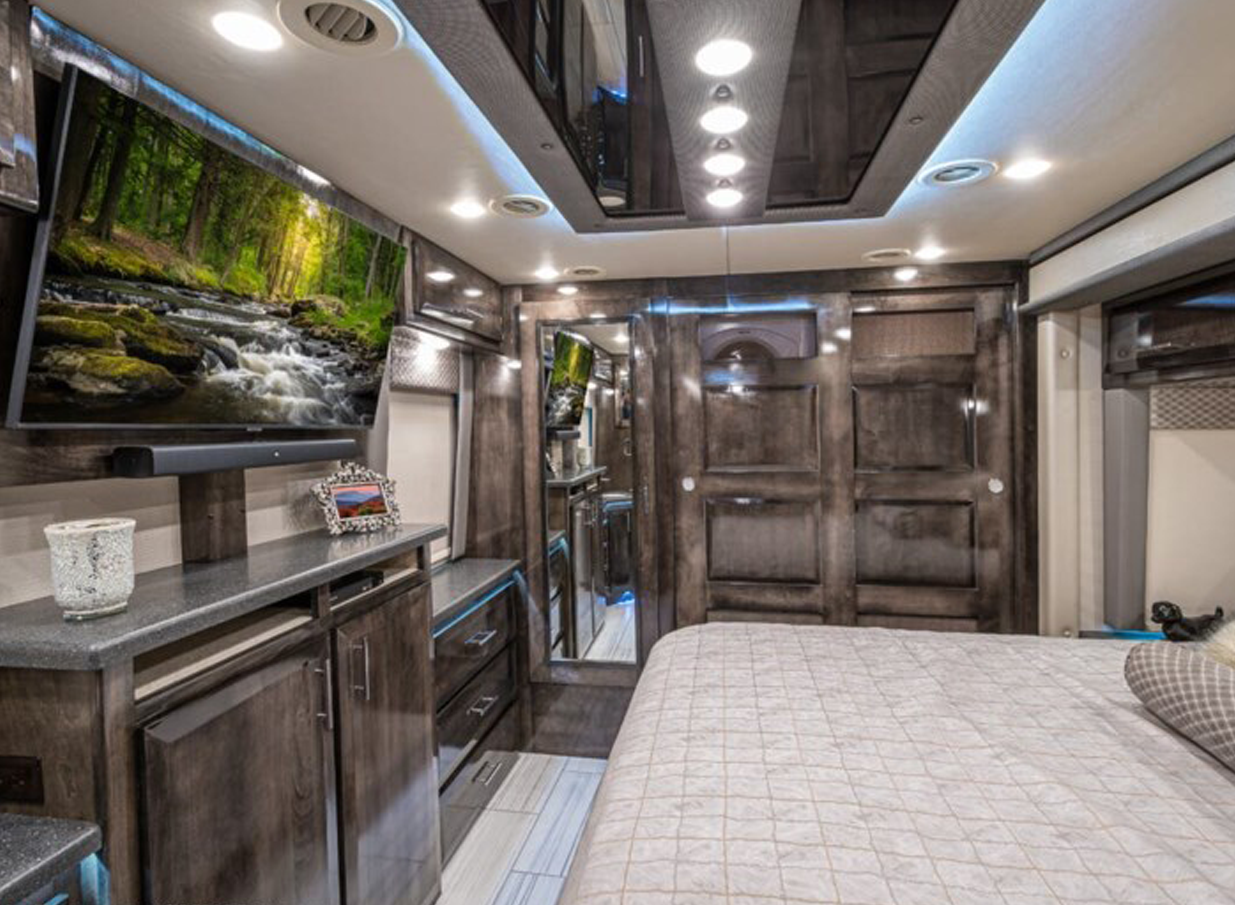

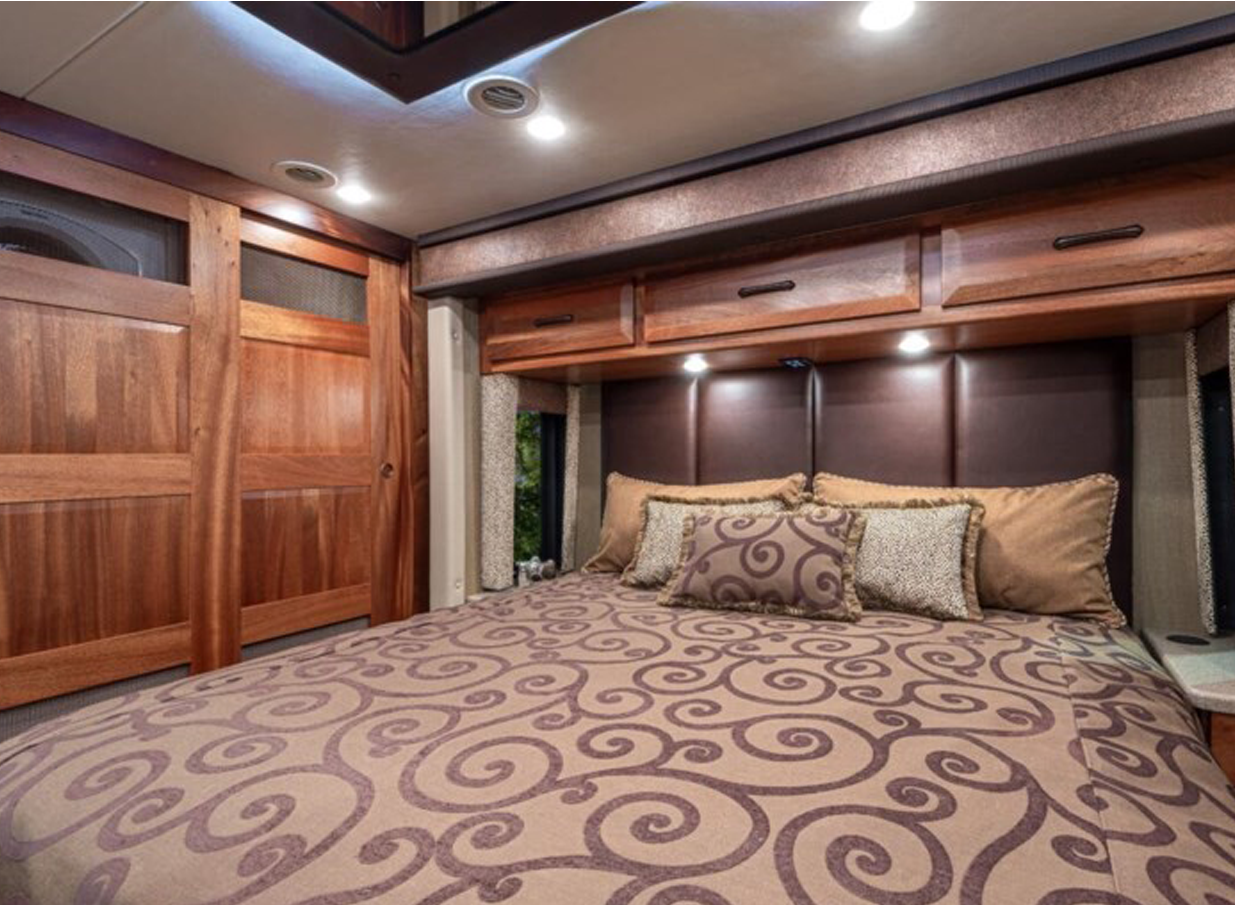

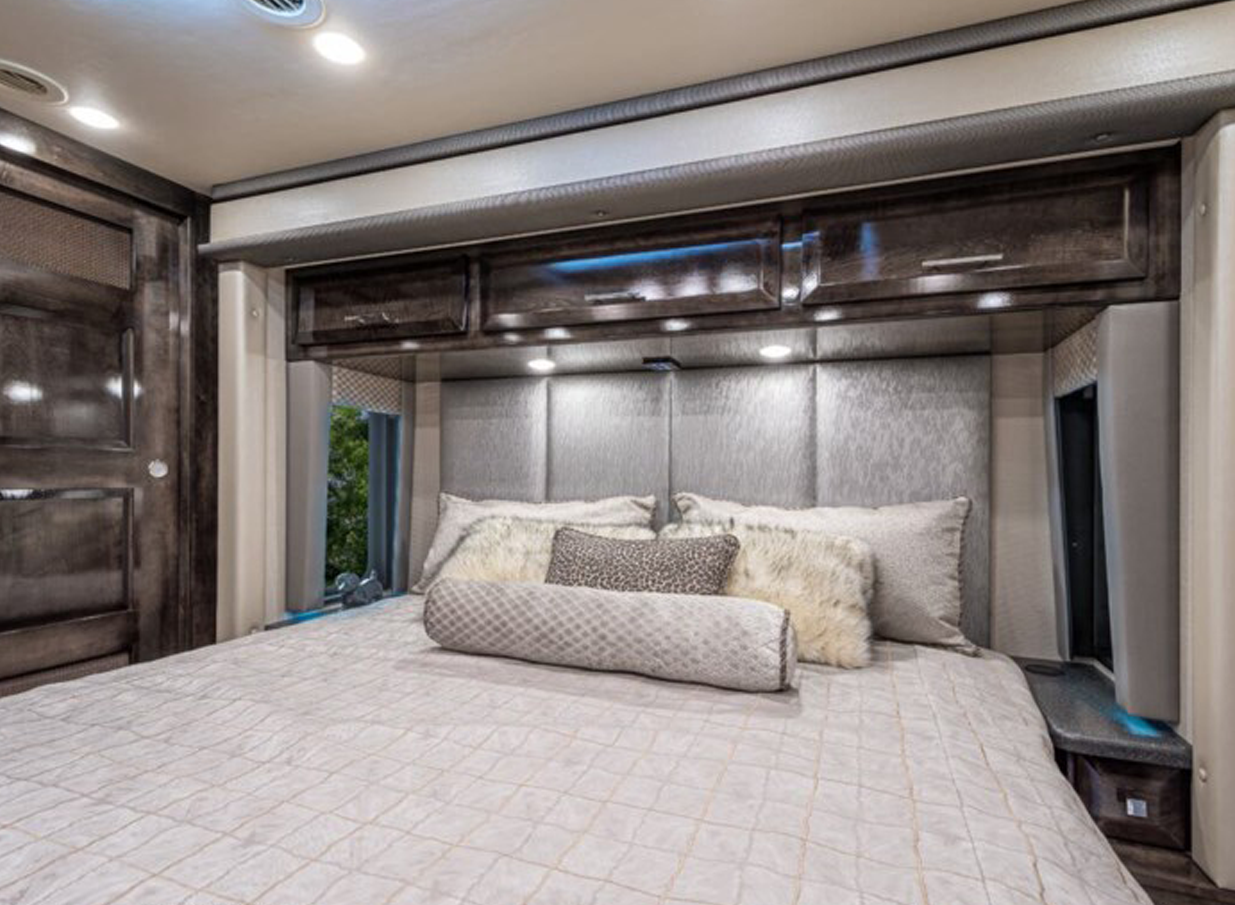

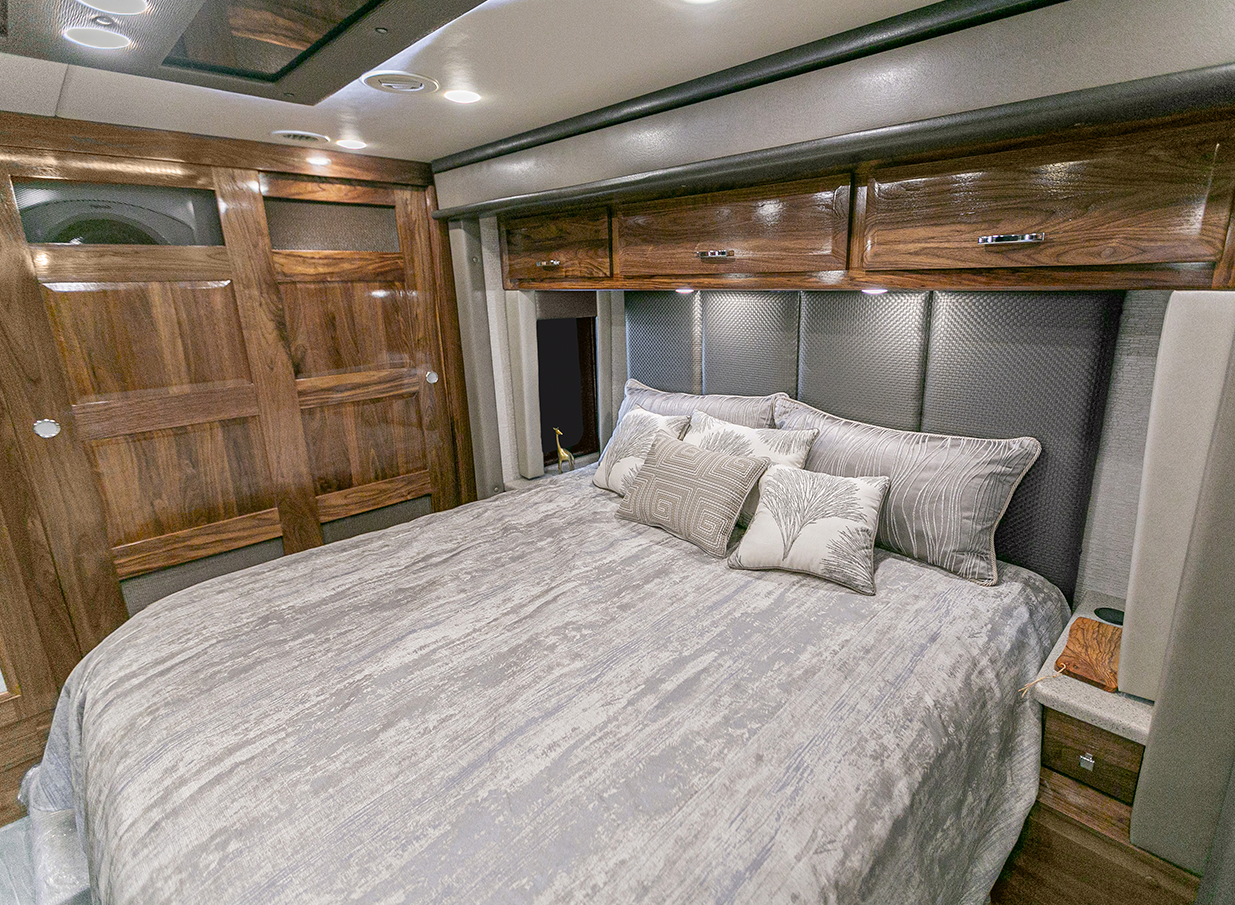

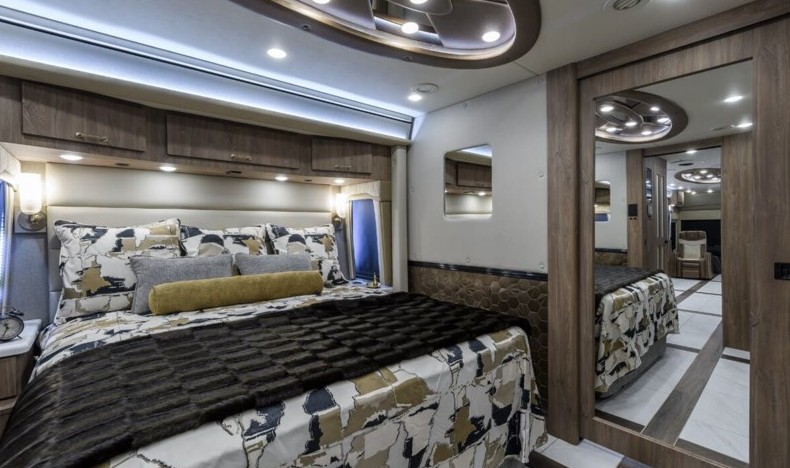

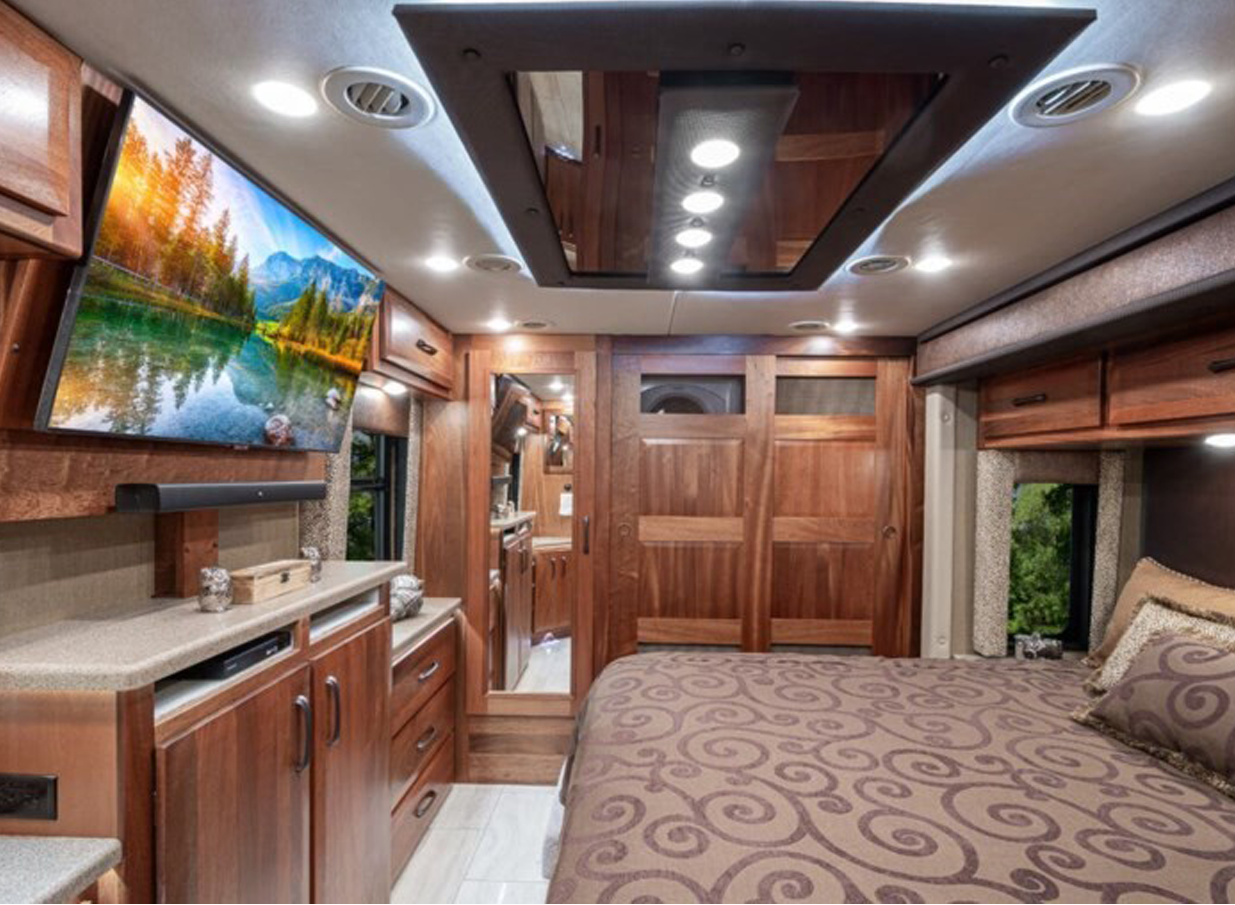

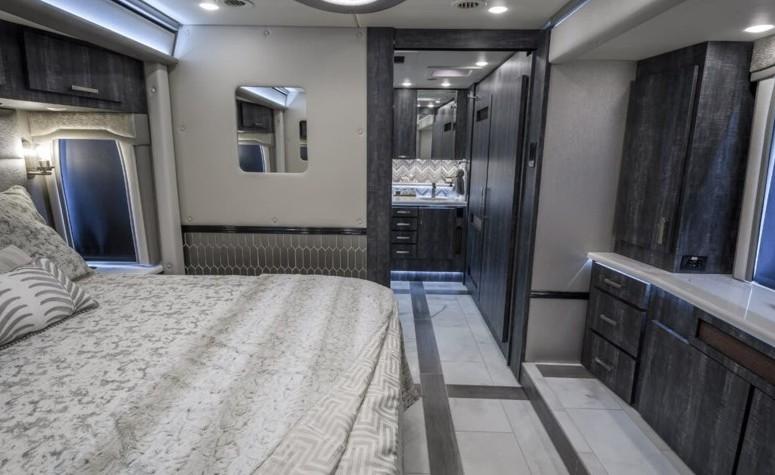

BEDROOM

Luxury King Size Mattress
Windows in Bed Slide Sidewall Below the Overhead
Wireless Night Stand Phone Chargers (2)

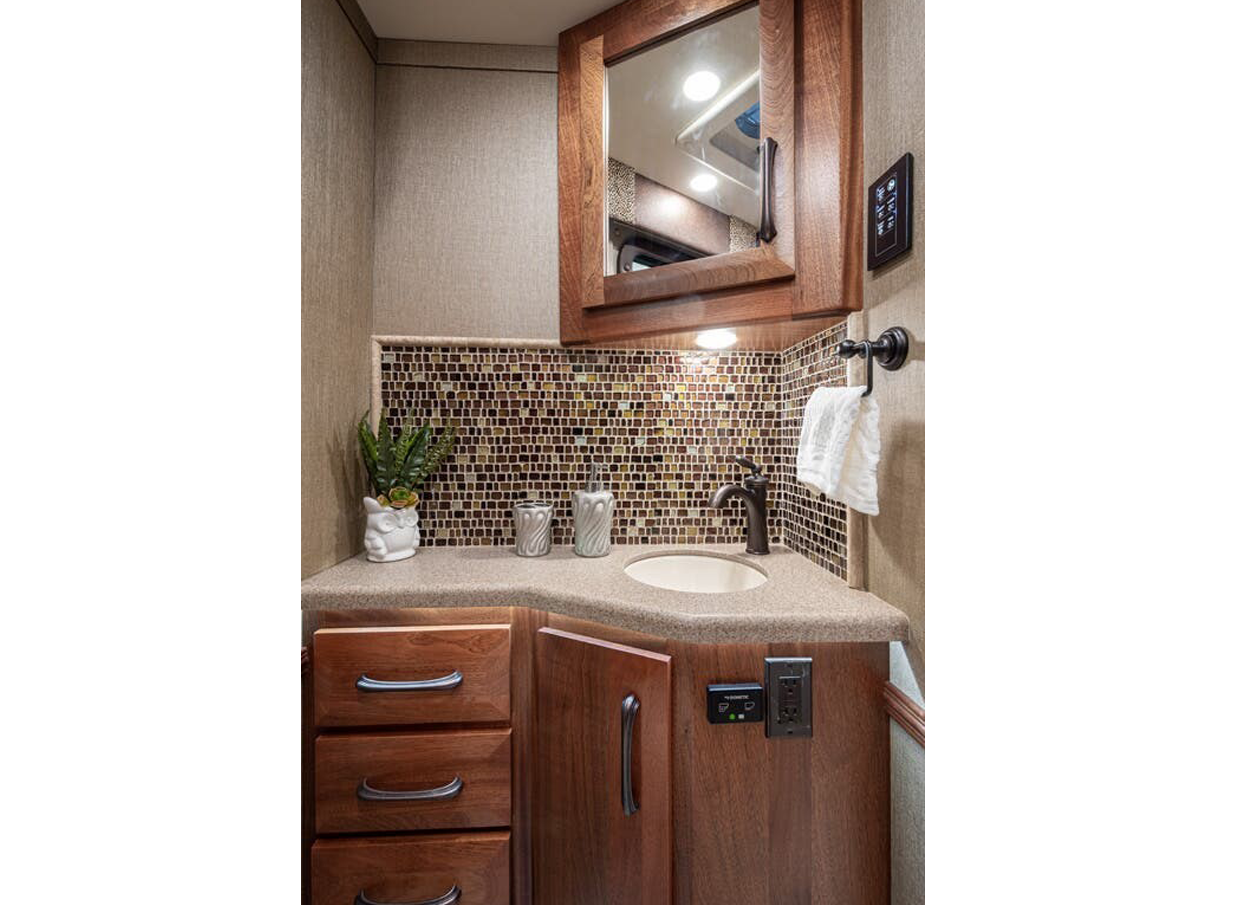

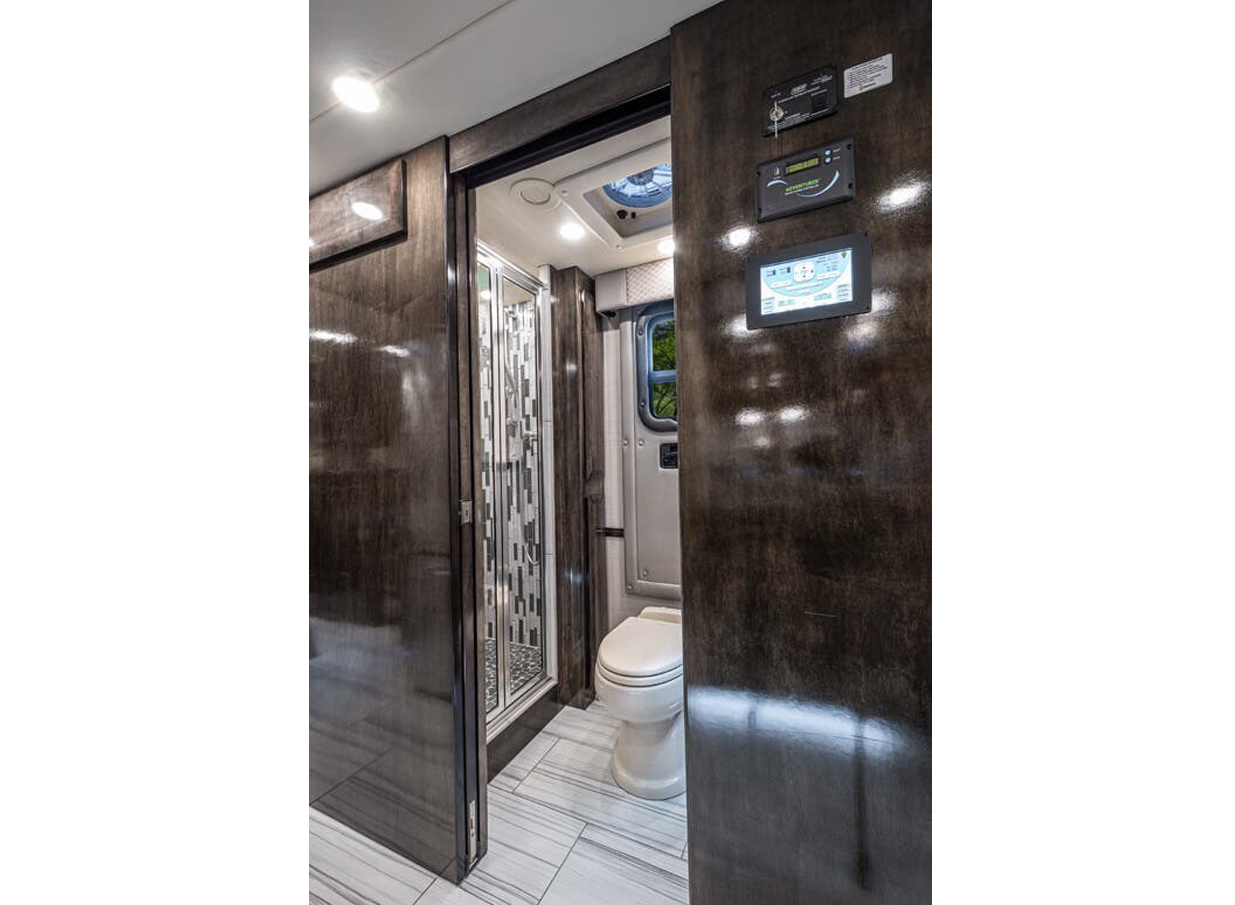

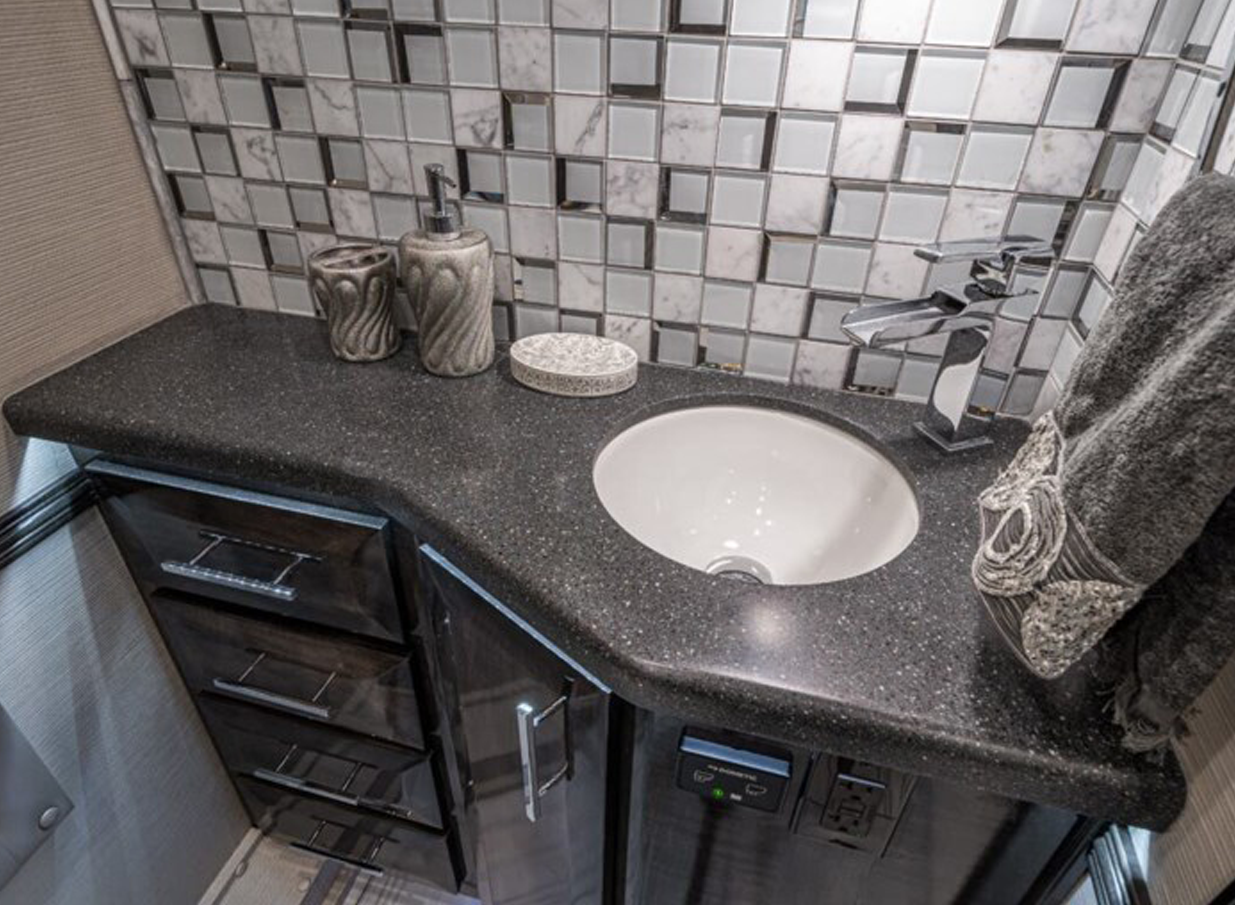

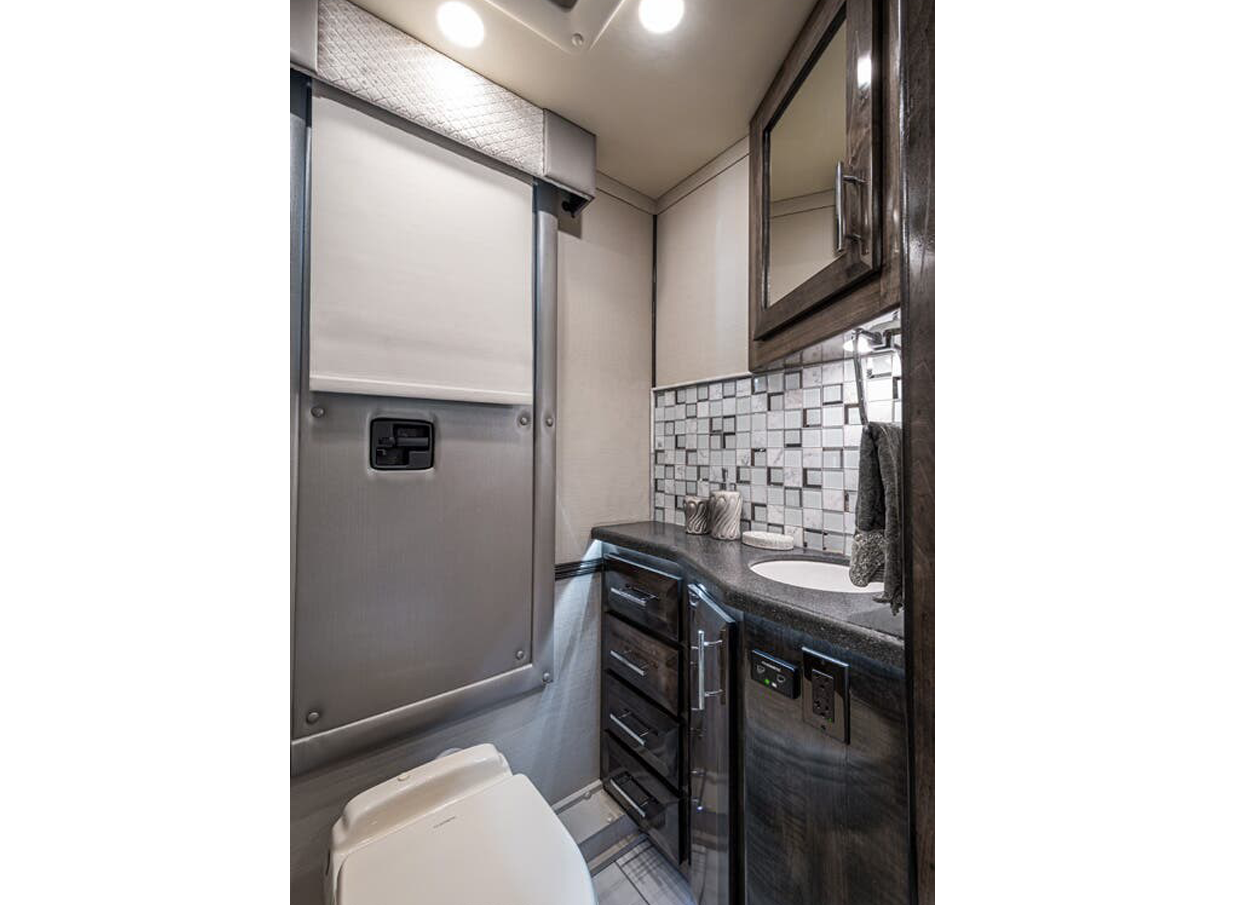

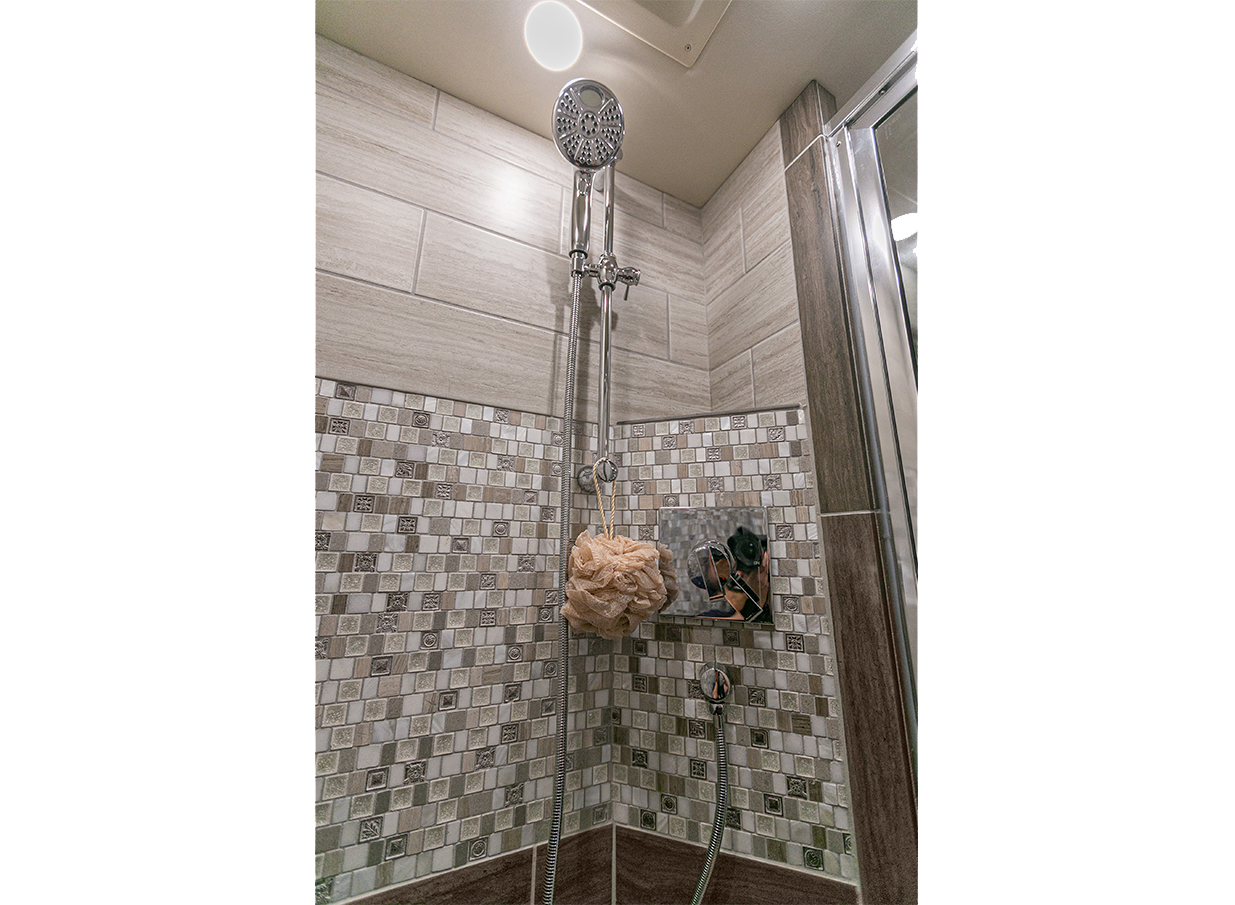

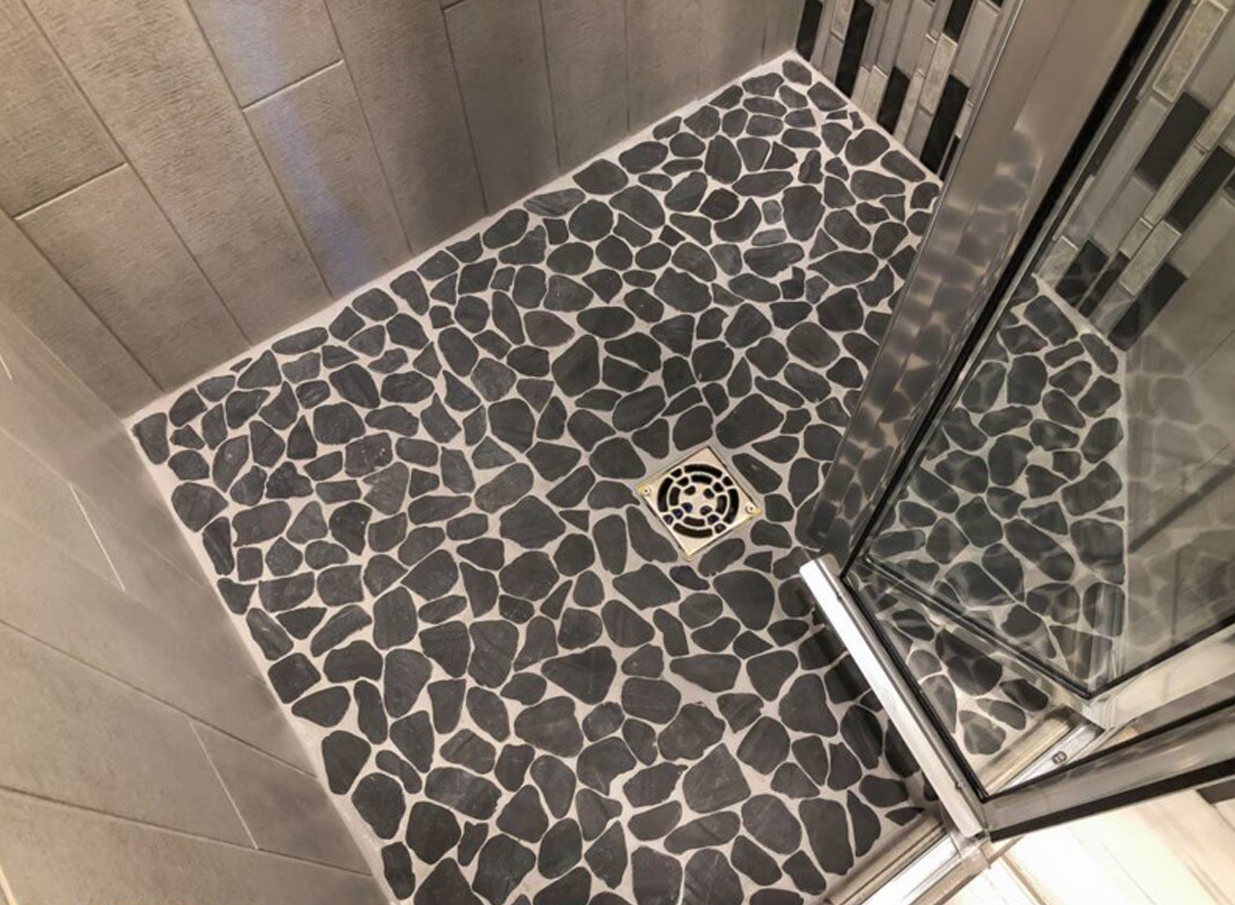

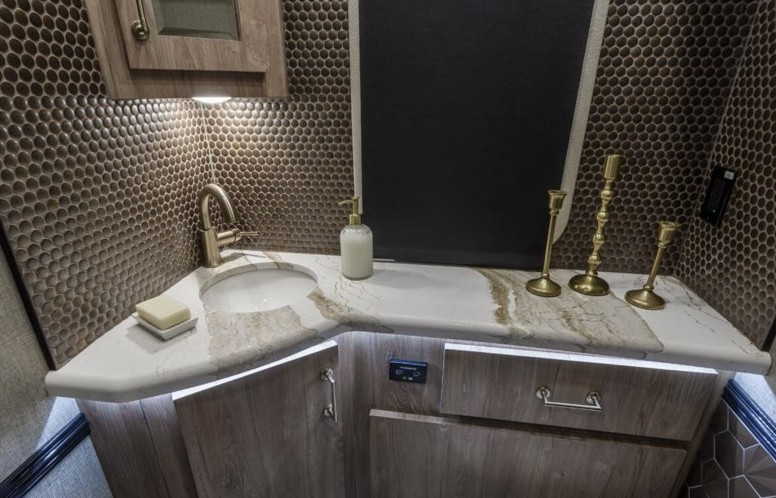

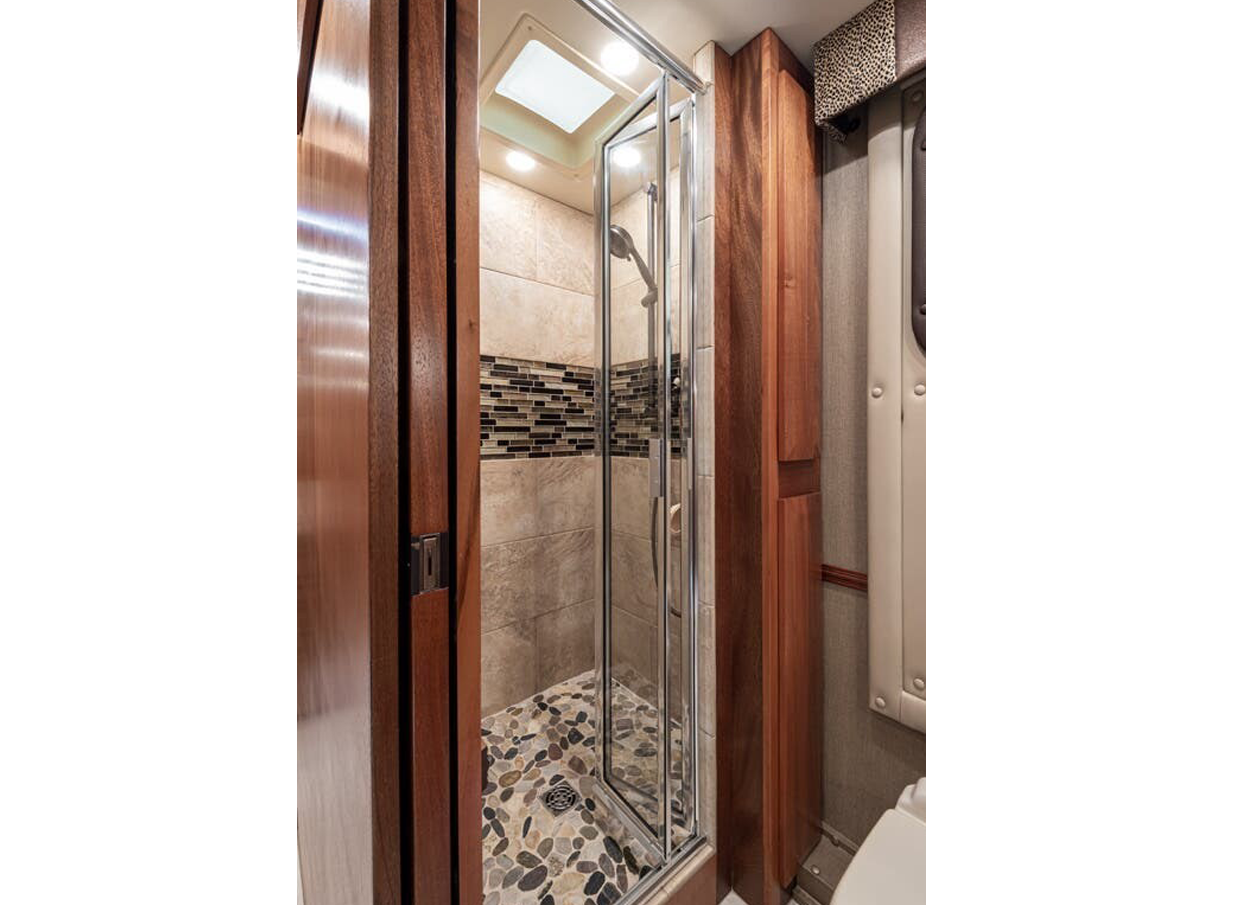

BATH • SHOWER

Reversible Variable Speed Electric Exhaust Fan in Bath and Toilet Room with Decorative Interior Covers
Massaging Spa (Floor Plan Dependent)
Body Sprayer in Shower

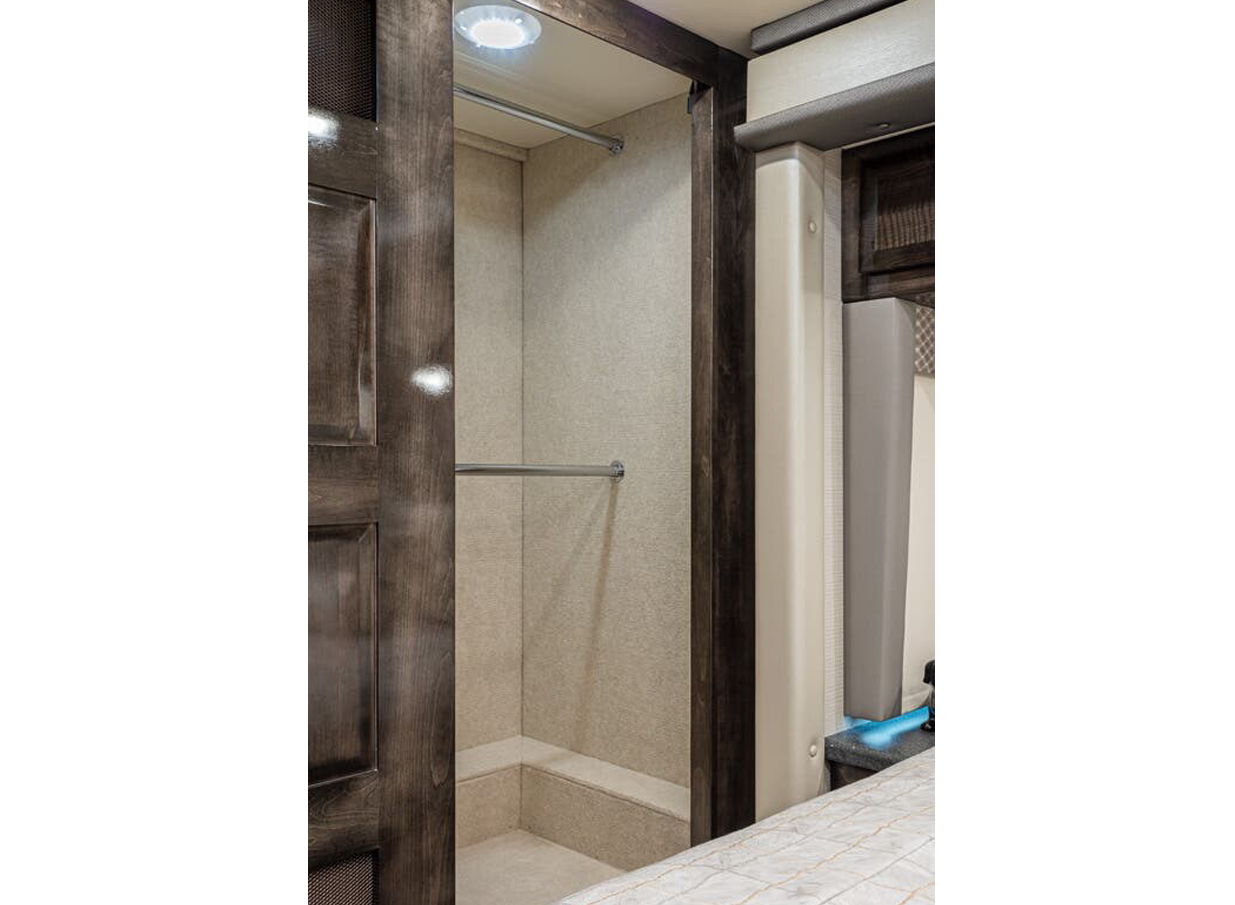

Built-in Shower Bench
Showermiser Hot Water Recirculation System
Tile Wall from Chair Rail Down in Bathroom

HEATING • COOLING • ELECTRICAL

Onan 12.5 Kw Diesel Generator in Quiet Box
12-Volt Battery Disconnect
Dual 3000-Watt Xantrex Inverter/Charger
50-Amp Shoreline Connection
Air-Conditioning and Heating with Offset Returns for Superior Quiet Operation
Air-Conditioning, Ducted with 3 Roof Airs 15,000 BTU’s with Heat Pumps
Auto Temp. Start the Generator
Low-Battery Auto-Start for Generator
Six 4D House Batteries/ Two Engine Batteries, Group 31 with 950 CCA- Each
50-Amp Automatic Transfer Switch with Integrated Surge Suppression
Gold Heat Floor Tile Heating System (3 Zones with Scheduling Capability)
Soft Start on Roof Air-Conditioning Units

CAPACITIES AND MEASUREMENTS

Fresh Water - 120 Gallons
Waste Tank - 160 Gallons
Fuel Tank - 200 Gallons
DEF Tank - 15 Gallons
Interior Height - 84"
Exterior Height - 13'2" (Top of Roof A/Cs)
Wheelbase - 316"

CHASSIS RATINGS

GVWR: 54,000lbs
Front GAWR: 20,000lbs
Rear GAWR: 20,000lbs
Tag GAWR: 14,000lbs
GCWR: 74,000lbs

WARRANTY

Coach: 2 Year/24,000 Miles
Chassis: 5 Year/100,000 Miles
Engine: 5 Year/100,000 Miles
Transmission: 5 Year/200,000 Miles
Chassis Frame & Cross Members: 20 Year Transferable

OPTIONS

Five Professionally Designed Interior Selections with Three Custom Wood Cabinetry Options (Natural Walnut, African Mahogany, and Polished Stone)
Eight Xtreme Scheme Exterior Color Selections
Six Spacious Engineered Floor Plan Selections, all with Four Foretravel Exclusive Fore‐Slides Technology
Outside Stainless Steel Trim Package (New Black Stainless Option Available)
Ottoman with Integrated Cup Holder
Head Hunter Mach 5 120V Water Pump (Bunk Floorplan Only)
Aqua Hot Hydronic Heating 600D (Bunk Floorplan Only)
LG Combination Washer / Dryer (Bunk Floorplan Only)
Additional House Batteries (2)
Pressure Washer
Stationary HD Satellite (Directv or Dish Network)
Magne Shade for Driver, Windshield, Entry Door, and Passenger Window (Foretravel Logo on Windshield)
Magne Shade Screen Door
One large drawer in place of Dishwasher


Foretravel, Inc. reserves the right to change or correct product specifications/pricing at any time without incurring obligations

Bold denotes new 2026 Foretravel REALM F605 Specifications

More
*Construction highlights, features & options are subject to change without notice and some standard features do not apply to all production units and or floor plans. All weights and measurements are approximate and may change without notice. All warranties are subject to exclusions & limitations; contact manufacturer for complete details. Maintenance program valid through network of authorized Spartan service facilities only. Contact Spartan for complete details and coverage information. Verify before purchase, The information contained on this website is believed to be accurate at the time of publication. However, during the model year, it may be necessary to make revisions and Foretravel reserves the right to make all such changes without notice, including prices, colors, materials, tile, equipment and specifications. For more details contact one of our Exclusive Dealers today.
MODEL ABOUT SERVICES Dealer Inventory
