- Cummins X15 605hp Engine
- Electric Floor Heat
- Pneumatic Pocket Doors
- Slumber Ease Luxury King Bed
- Custom Laminate Cabinetry

FLOORPLANS
Current ih-45 floor plans
KEY FEATURES
The result of 50 years of experience.

SPECIFICATIONS, FEATURES & CONSTRUCTION HIGHLIGHTS
CHASSIS FEATURES
ABS anti-lock braking system w/automatic slack adjusters
Air disc brakes on all wheels
Air hose for tire service
Air quick connect in storage bay
Alcoa aluminum wheels w/ Dura-Bright protection
Allison 6 speed transmission MH 4000R w/ retarder
Alternator - 435-amp
Automatic traction control (ATC)
Auxiliary 12v air compressor
Chassis - TravelRide II by Foretravel
all air ride with:
4 outboard-mounted air bags (drive axle)
2 air bags (IFS front axle)
2 air bags (tag axle)
Engine - Cummins ISX 600 HP
Fuel filter/water separator

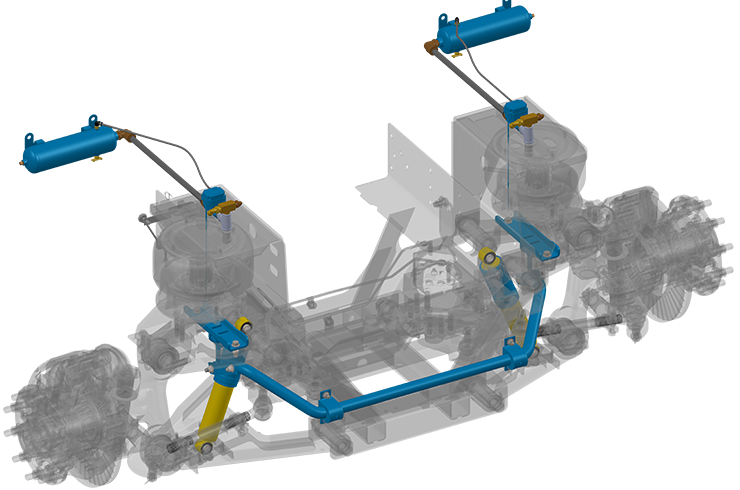

Front axle - IFS (independent front suspension)
HWH - computerized air leveling system
HWH - active air system
Ridewell tag axle
Rear axle ratio: 4.30:1
20,000# / 2,700# tongue Rated receiver hitch
Michelin Tires: 365/70R22.5 Front 315/80R22.5 Rear
EXTERIOR FEATURES
Awning, roof-mounted, electric patio w/ lights (2)
Awning, shells
Topper Awnings on Slideouts
Auto motion sense storage bay lights
Cargo tray, electric sliding (2)
Carpeted storage bays
Consolidated components bay
Docking lights, LED (4) with switch in dash & bedroom
Exclusive Foretravel wheel Lock Nuts
Dual-pane tinted & insulated windows
Easy view one-piece windshield
Electric dump valves
Electric entry step (Executive)
Electric utility reels - water & power
CosmoLite roof – One Piece, Stain and UV resistant
FRP sub floor (one-piece)
Flush kit
Fuel fill - on both sides of coach
Electric gray water bypass for holding tank
Ground accent lighting ( Color Changing )
Heated/remote chrome mirrors w/LED turn signals
Fresh water plumbing supply manifold
LED Porch light
Marker lights, LED
Xenon low beam headlights
LED high beam headlamps
Fog lights, LED
Paint protection below windshield
Painted exterior, full body paint w/ clear coat finish
Side hinge storage doors
Remote storage door locks
Roof AC drains
Stainless steel lined utility bay
Trailer wiring
Utility Station:
Fresh water connection
Network connection
Water fill switch
Hot & cold water faucet
120v receptacle & soap dispenser
50 amp shoreline connection
Water pump switch
Cable TV
Portable satellite connection
DASH & COCKPIT FEATURES
12 volt accessory receptacle
Dual 1 amp USB charge receptacle
Battery boost switch / auto-charge
Camera, motorized back-up with control at dash
Cameras, mirror mount w/ color back-up monitor
Dedicated driver monitor for rear and side cameras
CB at dash, hand held
Compass & outdoor temperature
Co-pilot seat, Villa residential 6 way power w/footrest & headrest
Dash AC fan controls for co-pilot
Generator auto start/stop
Infotainment system with GPS, AM, FM, CD Sirius/XM, Bluetooth, USB, and iPod compatibility
Passenger monitor with DVD / GPS / Satellite viewing
Map lights, pilot & copilot
Pedals, throttle & brake power adjust
Pilot seat, Knoedler air ride
Silverleaf 12” digital glass dash
Steering wheel, power tilt & telescoping
Steering wheel, Smart Wheel, w/Radio Controls
Windshield / privacy shade & sunblock, electric
APPLIANCES • ELECTRONICS • LIGHTING • AUDIO-VIDEO
HDMI & CAT6 shielded A/V cabling
CAT6 network cabling
Cook top, 2-burner Induction
5.1 surround sound system in LR
Stereo sound system in BR and Patio
Single Blu-ray player
Universal Remote Control (2)
iPad with A/V and Silverleaf control
Interior LED Lighting:
Accent under counters & window trim
Floor lights
Reading lamps in bedroom
Microwave, Residential
Refrigerator, Residential, 120v, w/ice & water in door.
Stationary HD Satellite
Satellite system, HD DVR receiver
Satellite system, 2nd HD receiver
Siverleaf Total Coach Control panel
Road i-Q camera system
Tire Pressure Sensors, Remote
TV antenna – automatic domed Winegard Rayzar
Washer/dryer connections
INTERIOR LIVABILITY FEATURES
Powered step-well cover with two switch locations
China toilet
Color-coordinated Foretravel Designed throw pillows (sofa & bed)
Foretravel Designed window treatment w/ electric day/night shades
Electric exhaust fan in bath & toilet room w/auto rain sensor
Filter, drinking water & ice maker water
Floor Heat, electric (with approved flooring)
120v outlet w/dual USB charge ports in LR and BR
Kitchen pantry
Lighting, multiplex system
King Bed – Slumber Ease System
Slide-out rooms, flush w/ sidewalls when retracted
Slide-out rooms, pneumatic sealed
Natural Quartz countertops:
Kitchen & bath
Desktop (floorplan dependent)
Dinette table
Nightstand tops
Stainless steel kitchen sink w/covers
Tile floor (kit, bath, D & P area)
Vacuum, built in
Handcrafted cabinetry
SAFETY FEATURES
All coaches built to RVIA specifications
Tyron® BeadāLock Tire Blowout Protection (front tires)
Fog-Maker Engine Fire Suppression System
Vorad Collision Avoidance System
Auto headlights and wipers
Carbon monoxide detector
Daytime running lights
Fire extinguishers (2)
GFI protected circuits
Lighted entry-door assist handle
Electronic Safe
Security system
Smoke detector
CSA Approved / Transport Canada Approved
HEATING • COOLING • ELECTRICAL
12.5 kw diesel generator in quiet box
12 volt battery disconnect
2800 w inverter/charger
(2) w/integrated AC/DC surge protectors
50 amp shoreline connection
Air conditioning & heating w/ offset returns for superior quiet operation
Air-conditioning, ducted with 4 roof airs
Auto temp. start for generator
50 amp automatic transfer switch w/ integrated surge suppression
Electrical surge-suppression system
Heat pumps on roof AC’s
Aqua Hot Hydronic heating
Low-battery generator auto-start
CAPACITEIS AND MEASUREMENTS
Fresh Water 135 gal
Holding Tank 145 gal
Fuel 200 gal
DEF 15 gal
Height 13’2”
