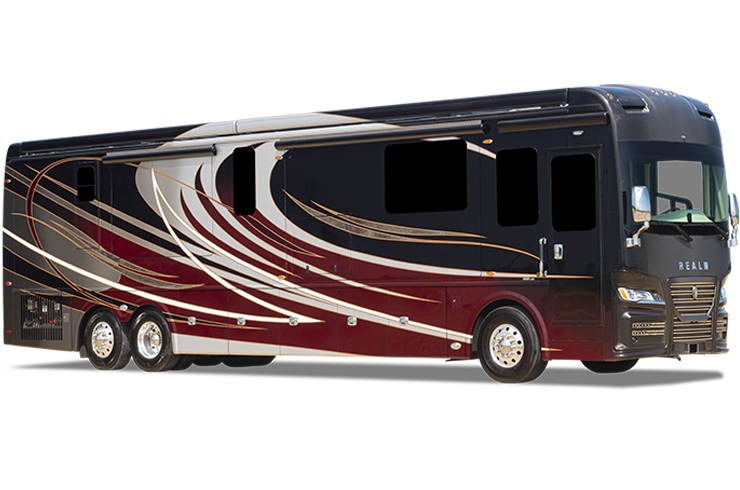

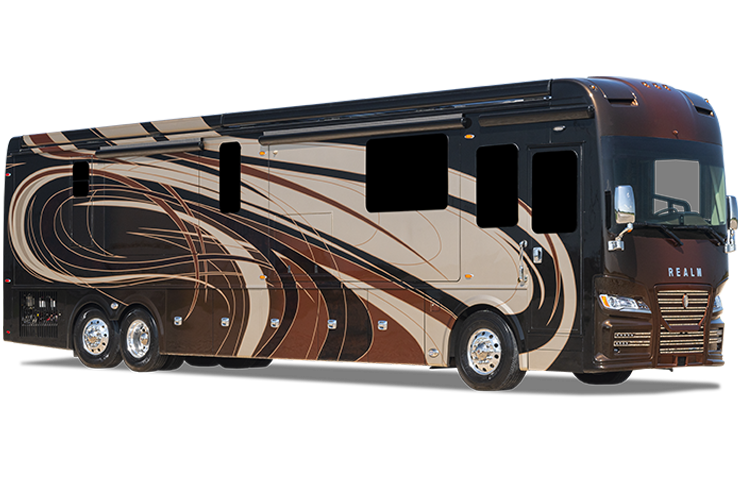

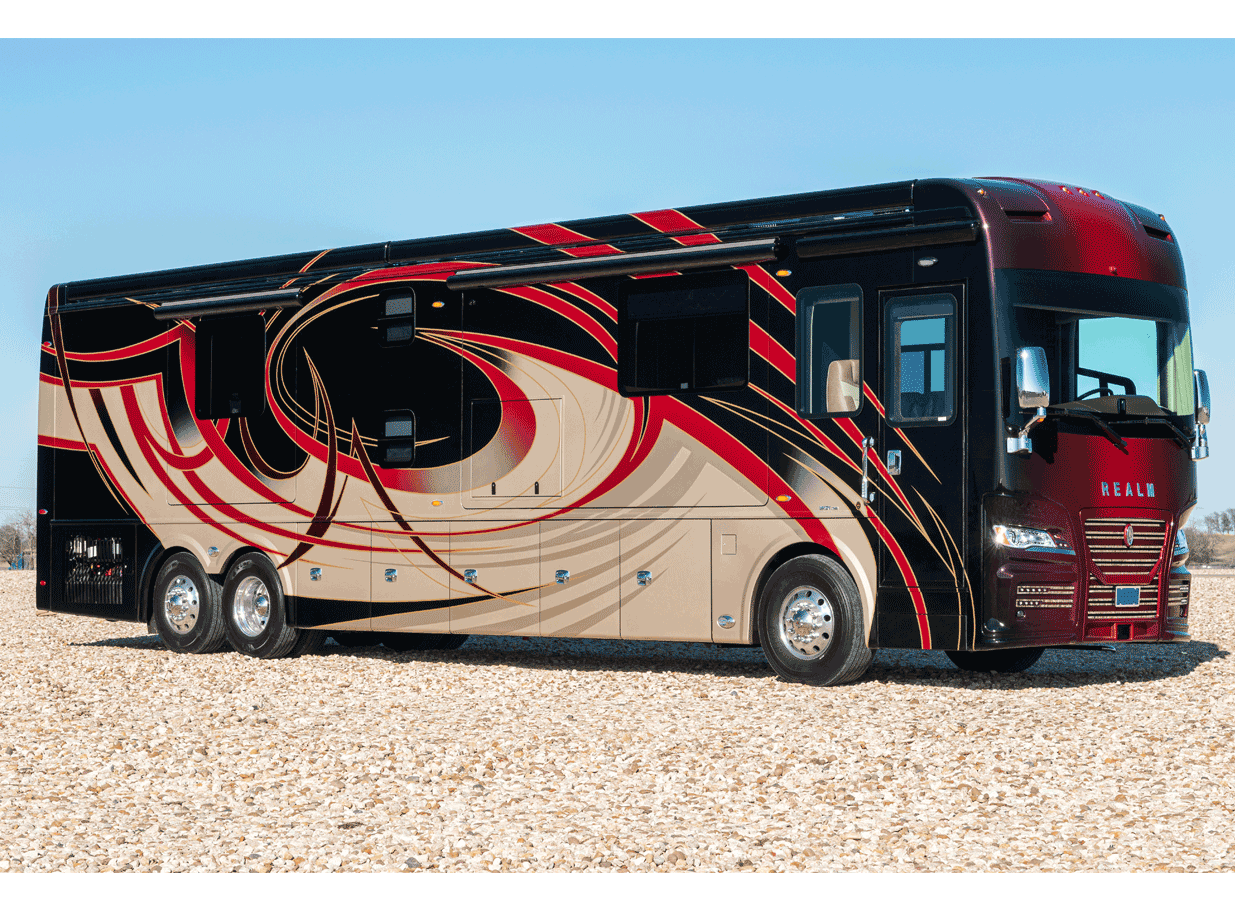

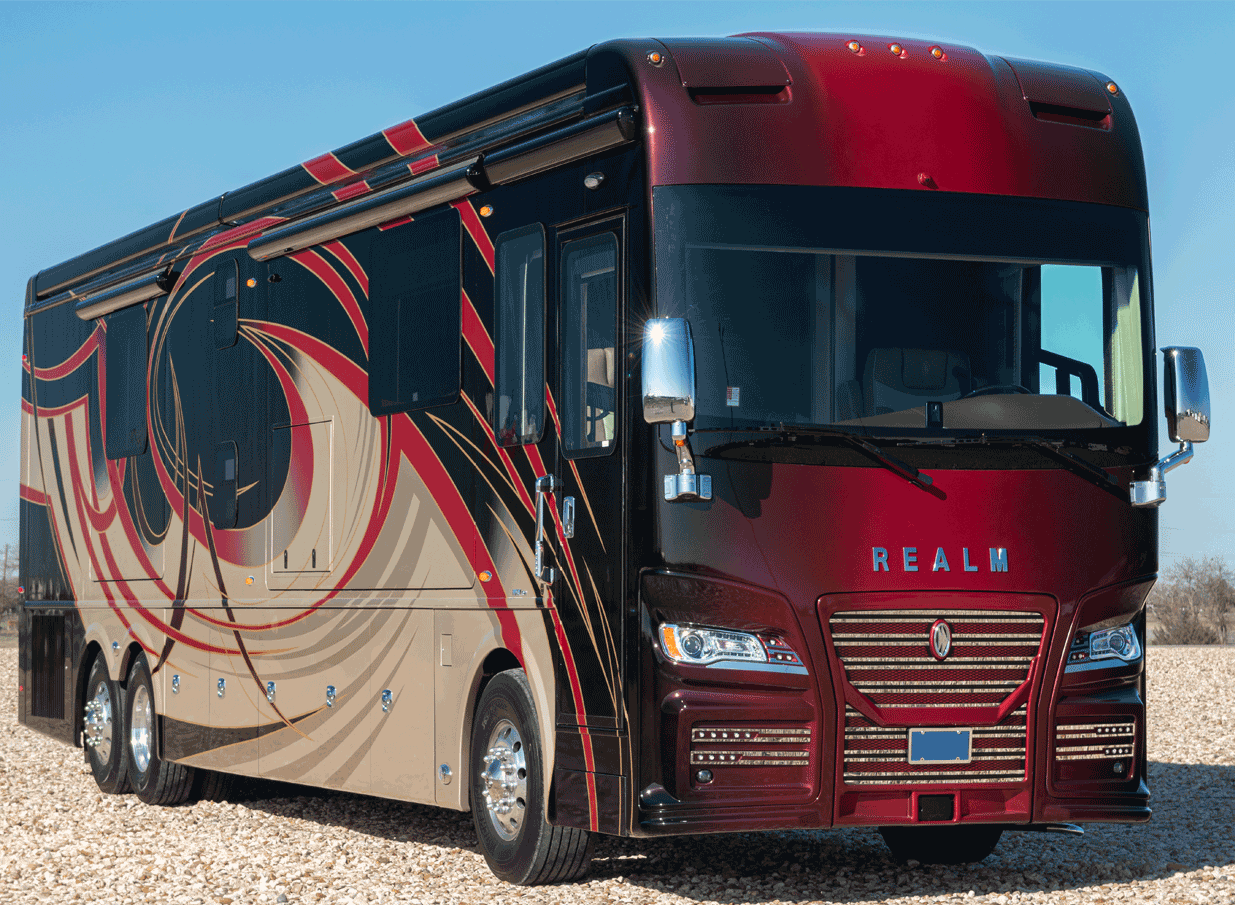

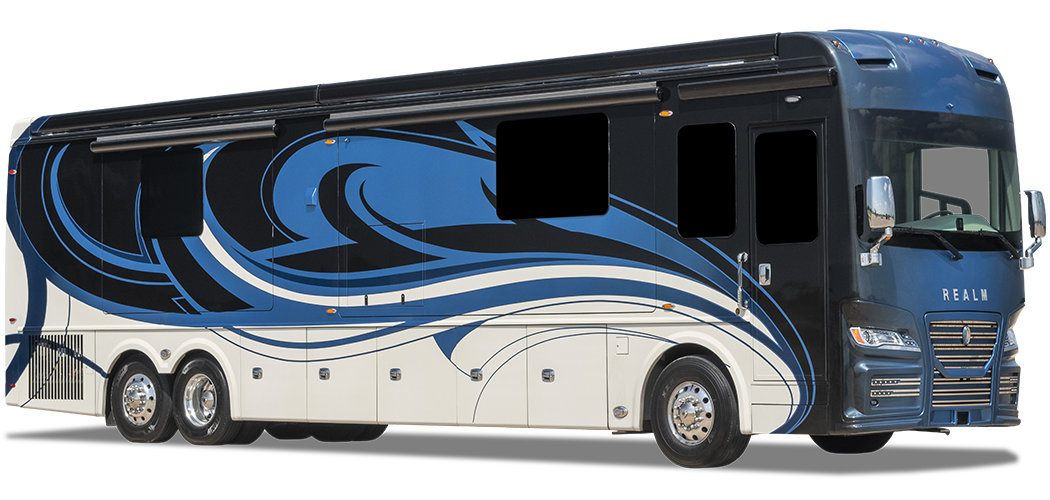

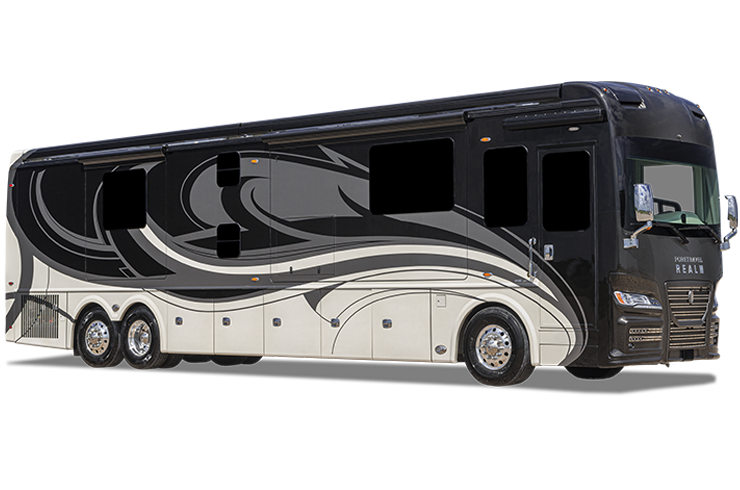

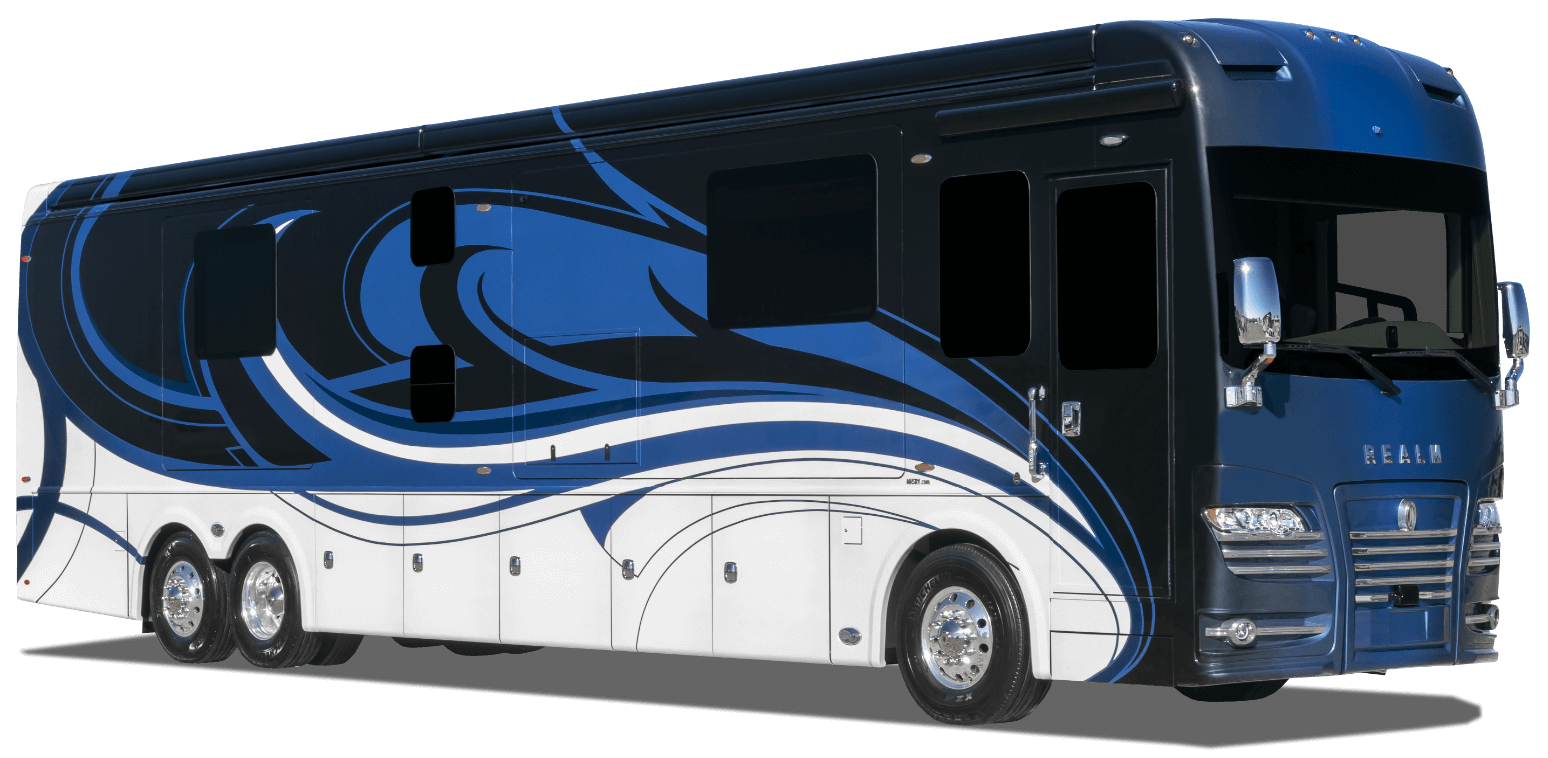

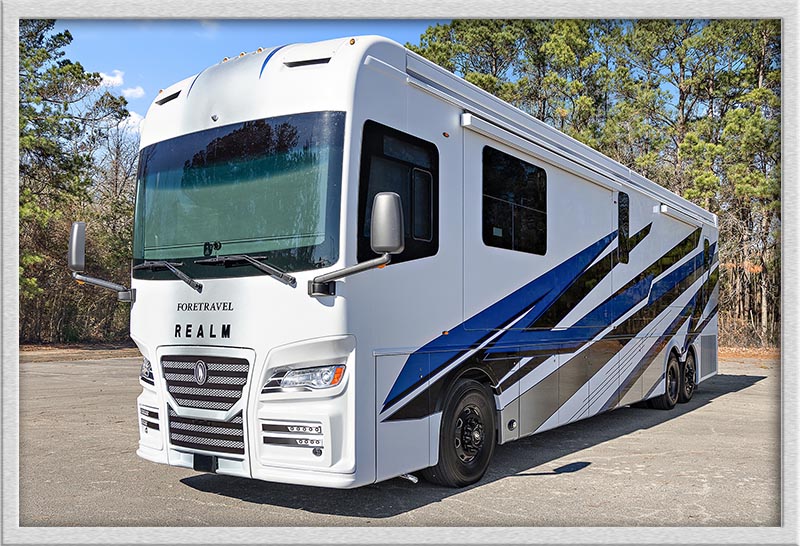

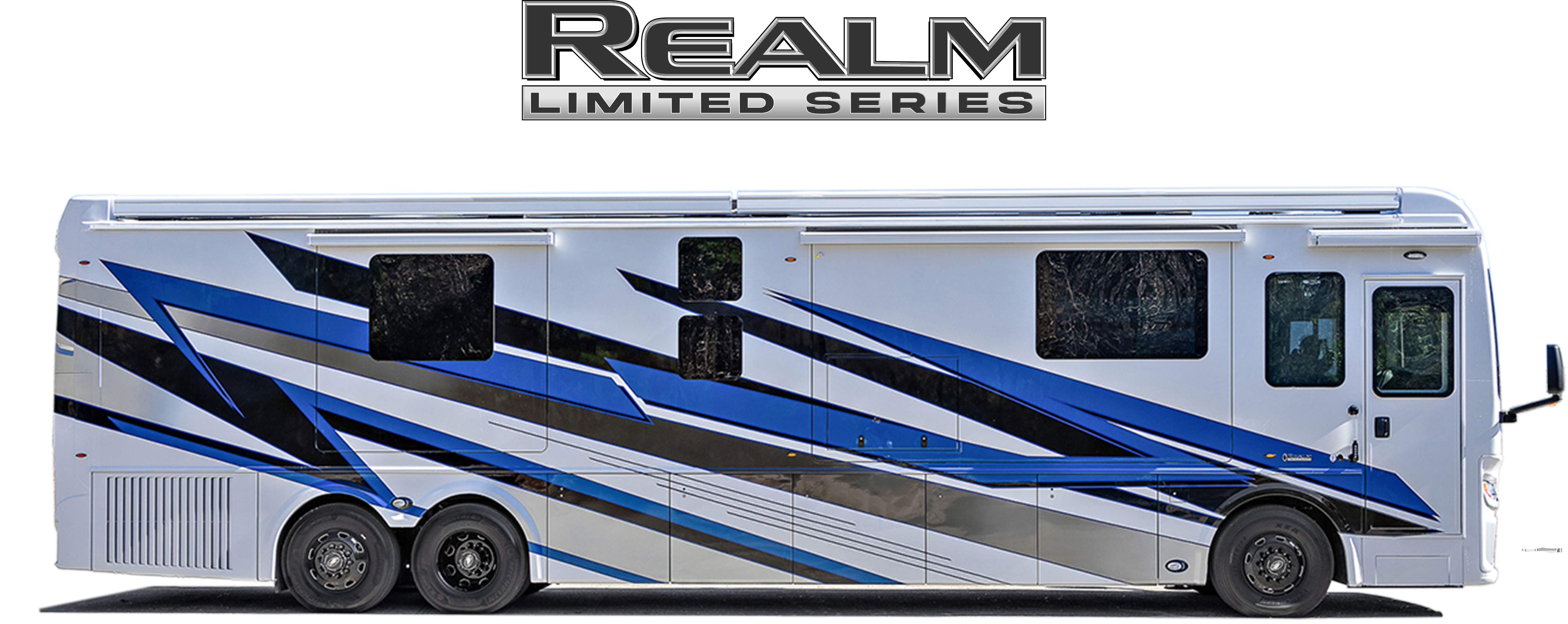

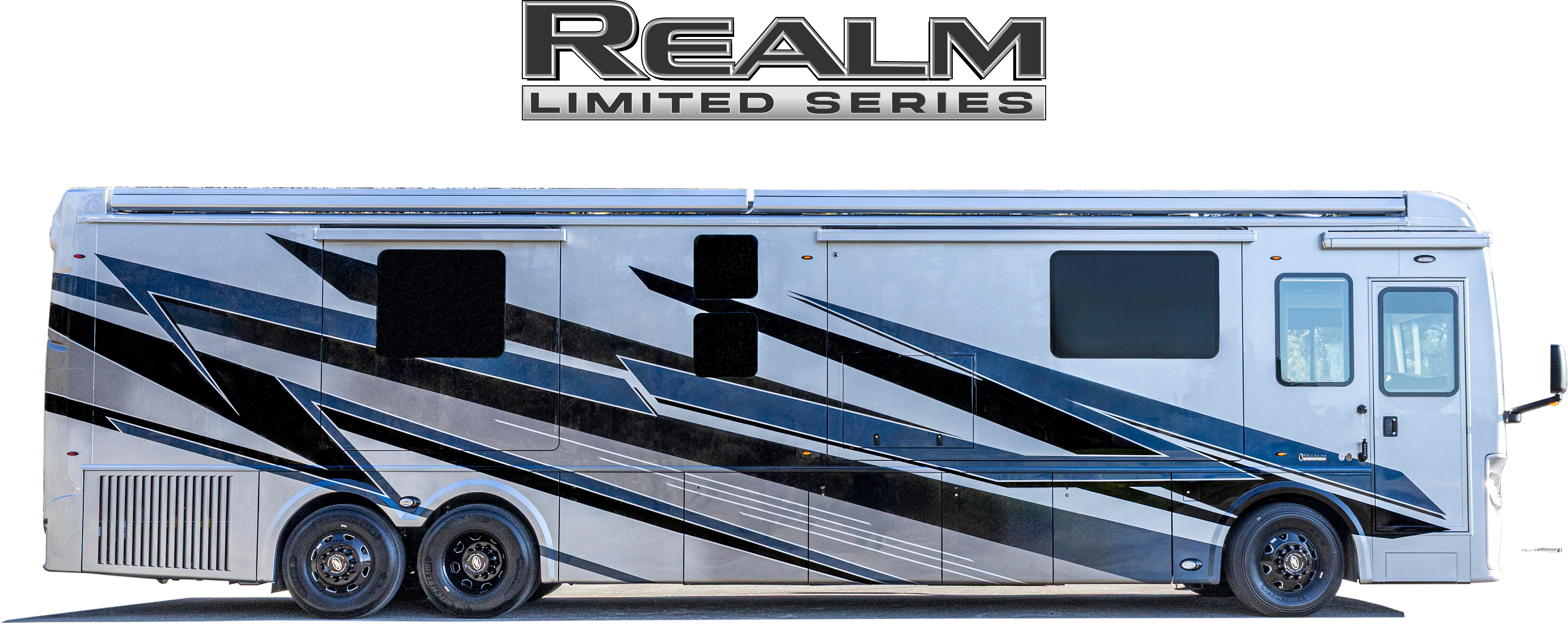

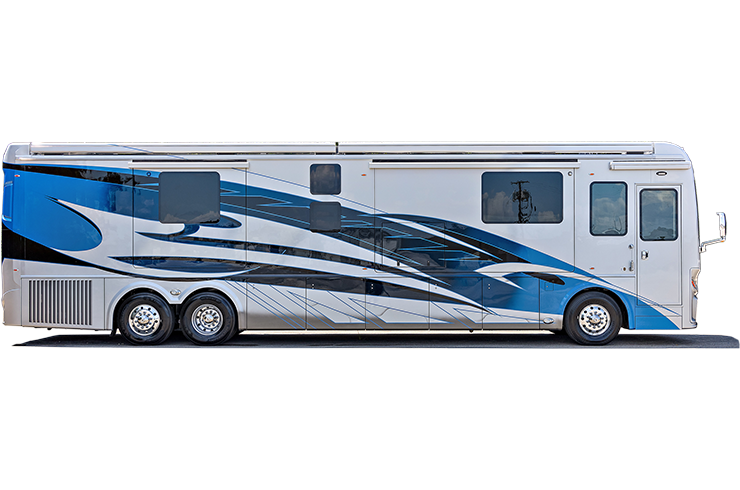

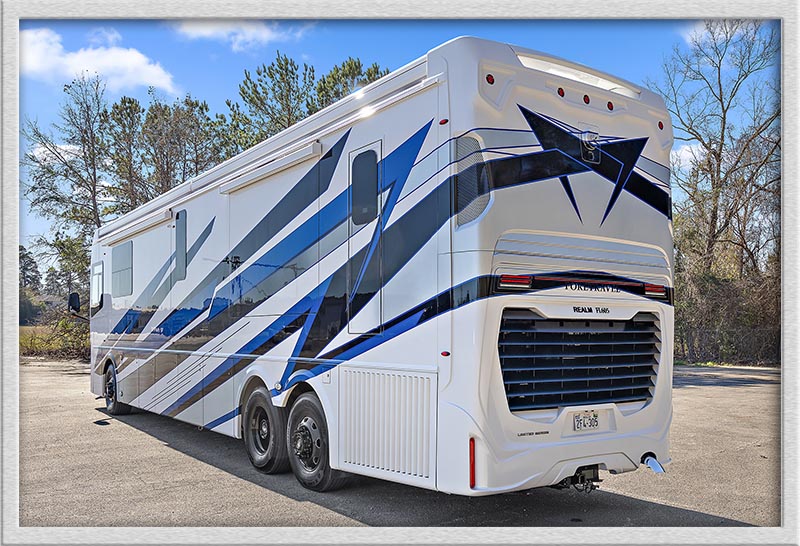

2024 Foretravel Realm FS605 Specifications

Spartan K4 Chassis

Cummins X15 605 HP Engine

• Peak HP 605 @ 1,800 RPM

Allison 6 Speed Transmission MH 4000

• Peak Torque 1,950 ft/lbs. @1,200 RPM

Cummins Connected Diagnostics

Valid Air Suspension w/ VDC Control

HWH Four Point Hydraulic Leveling Jack System

Spartan Safe Haul

Three Stage Engine Brake with On/Off Switch

ABS Anti-Lock Braking System with Automatic Slack Adjusters

Electronic Suspension Control System w/ Self Leveling Feature

Rain Sense for Windshield Wiper Controls

Air Disc Brakes on all Wheels

Air Hose for Tire Service

Air line with Quick Connect

Alcoa Aluminum Wheels with Dura-Bright Protection on All Aluminum Wheels

270-amp: Leece-Neville Alternator

Automatic Traction Control (ATC)

Auxiliary 12V Air Compressor

Fuel Filter / Water Separator

Side Mounted Radiator

Electric Engine Block Heater with 120V outlet in Engine Bay

Heated Automatic Air Reservoir Drains with Lanyard

Remote Engine Oil Fill and Transmission Level Check

Front Axle - IFS (Independent Front Suspension)

Performance Choice™ - Anti-Sway Bar with Selectable Drive Modes

Rear Axle Ratio: 4.30:1

Passive Steer Tag Axle with 17 Degree Turn Radius

20,000-lb. Towing Capacity/ 2,000-lb. Hitch Tongue with 7/4-Pin Plug

Michelin Front 365/ 70R 22.5” Rear 315/ 80R 22.5”

3 Year Spartan Scheduled Maintenance Included

No Deductible 24/7 Roadside Assistance First 3 Years

Complimentary Spartan Care Kit

EXTERIOR FEATURES

Foretravel Exclusive Fore-Slide™ Flangeless Pneumatic Seals on All Slide Rooms

Entry Door Awning

Passenger Side Patio Awnings, Two Roof Mounted Electric Patio Awnings with LED Lights on Passenger Side

Driver Side Patio Awning Shells, Two Roof Mounted Patio Awning Shells

Slide-out Topper Awnings - Painted Base Color

Outdoor Entertainment Package in Slide Room

380-Watt Solar Panel Package

Storage Bay:

     Lights in Storage Bay                                                                              Two Electric Sliding Cargo Trays

     Freezer on Slide Out Tray                                                                      Carpeted Storage Bays

     Push Button Bay Doors with Electric Locks                                      Newly Redesigned Electronics Bay

Dual-Pane Tinted and Insulated Windows

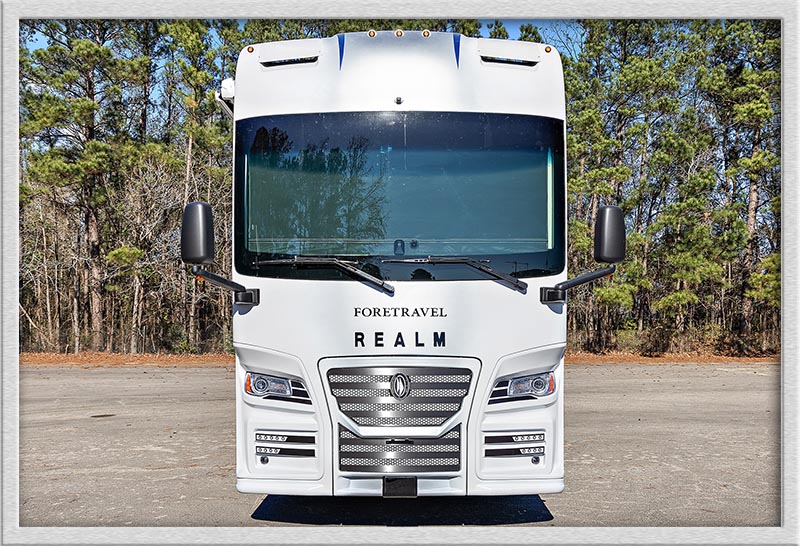

Easy View One-Piece Windshield

Electric Executive Entry Step

Cosmolite Roof - One Piece, Stain and UV Resistant

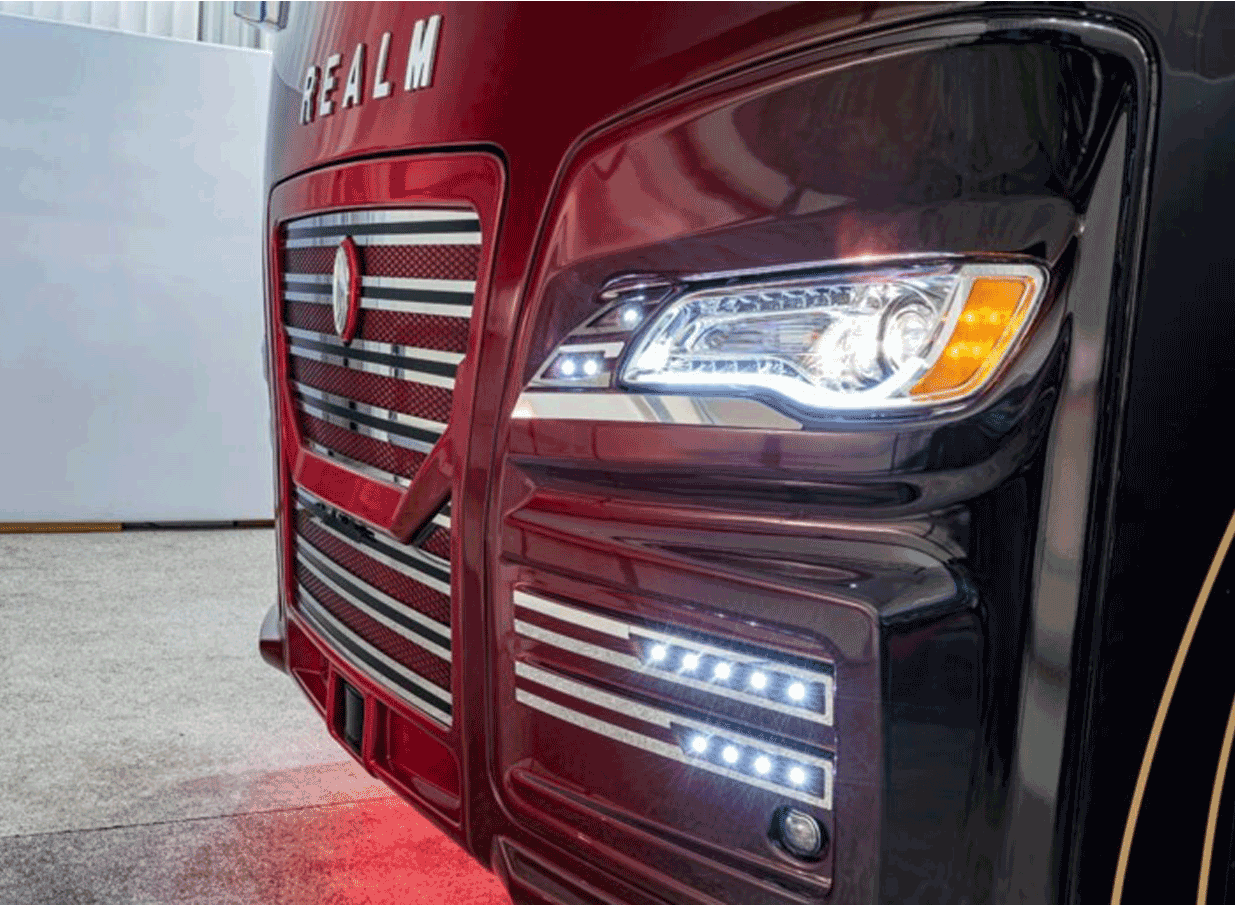

LED Lights:

     Four Docking Lights                                                                                Fog Lights

     Color Changing Ground Accent Lighting                                            High Beam Headlamps

     Halogen Low Beam Headlights                                                            Porch Light

     Marker Lights                                                                                          Foretravel Projector Courtesy Puddle Logo Light on Bottom of Entry Door

FRP Sub Floor (One-Piece)

Heated/ Remote Chrome Mirrors with LED Turn Signals

Fresh Water Plumbing Supply Manifold with Newly Redesigned Stainless Steel Water Manifold Cover Panel

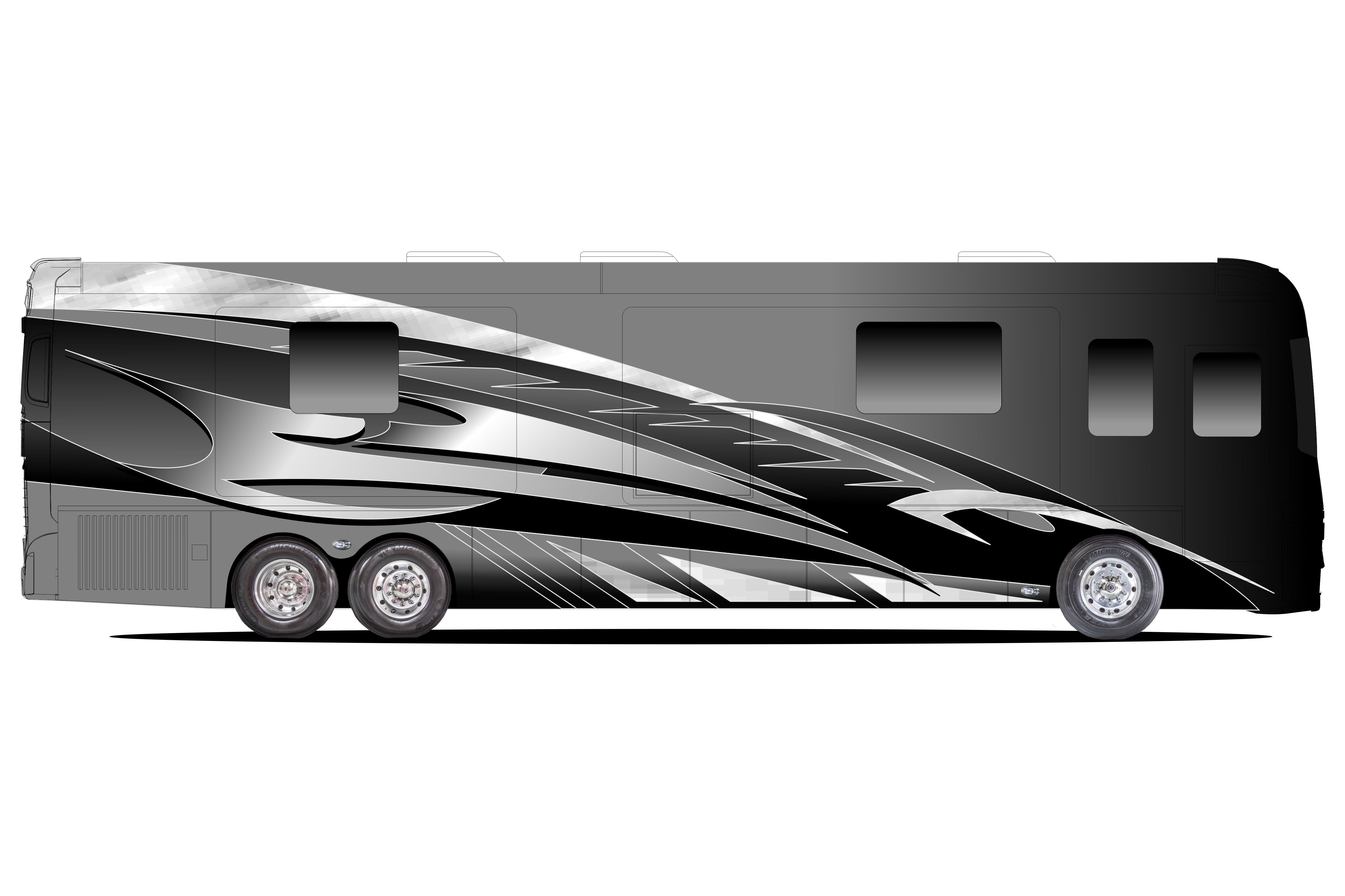

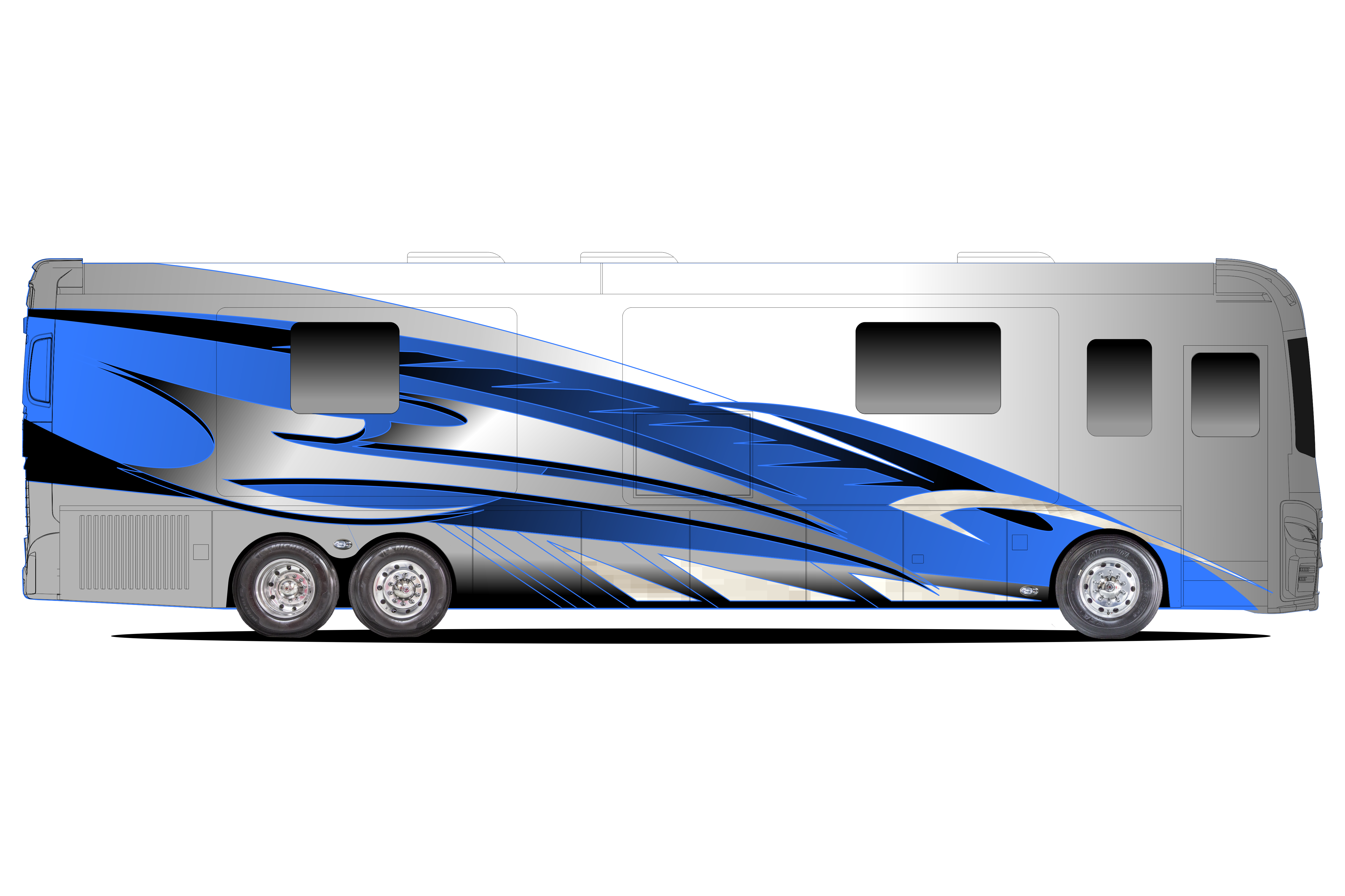

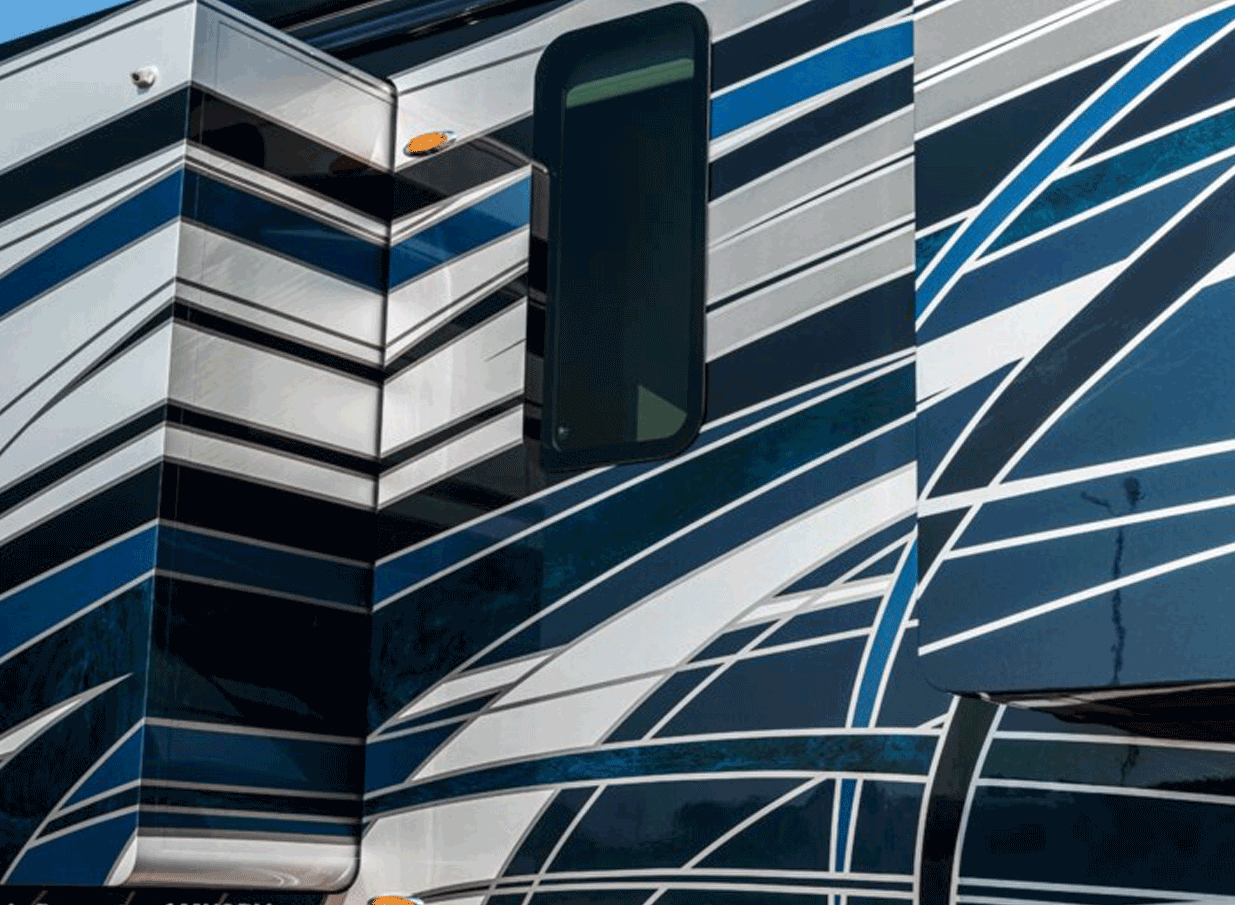

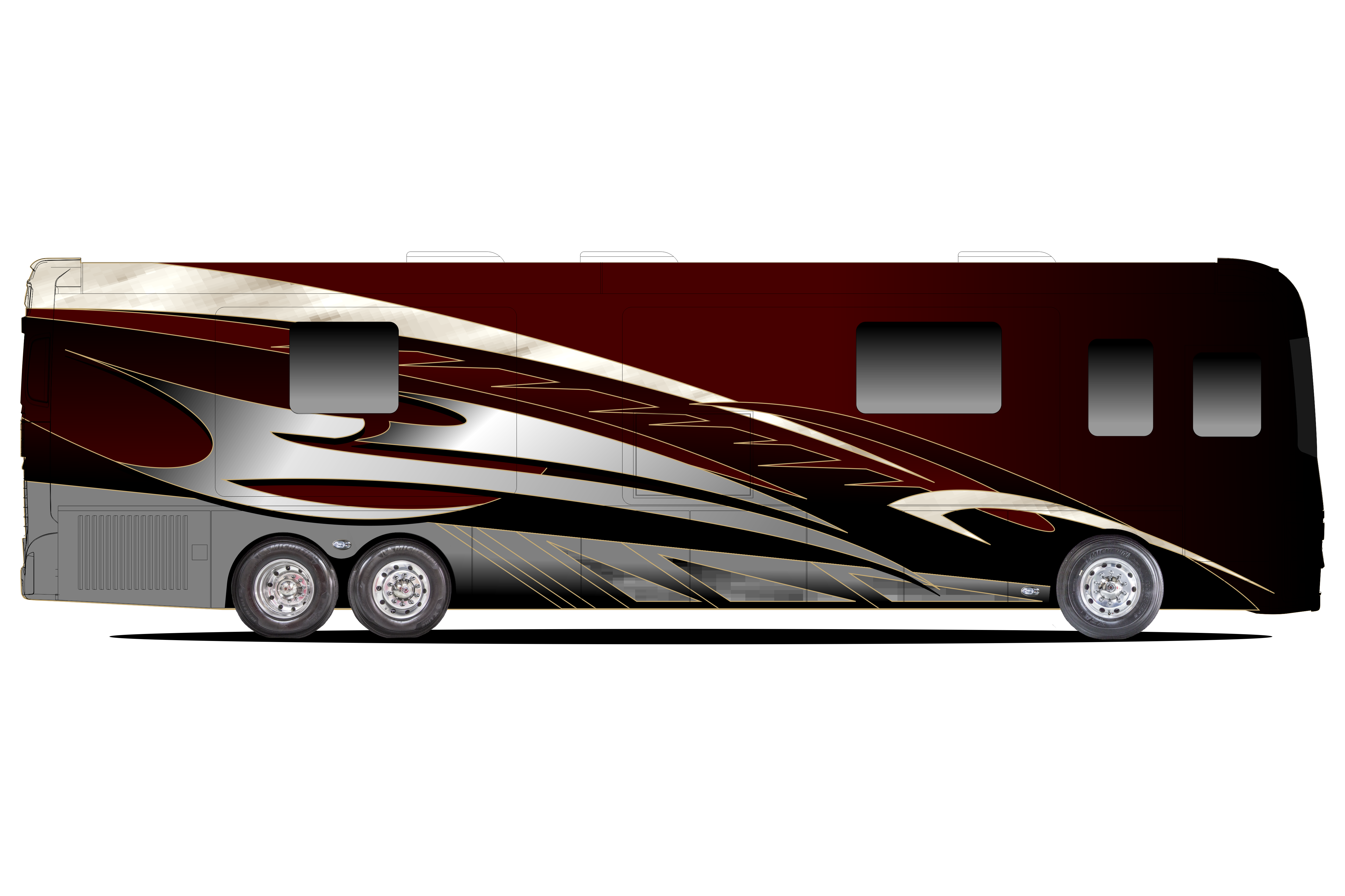

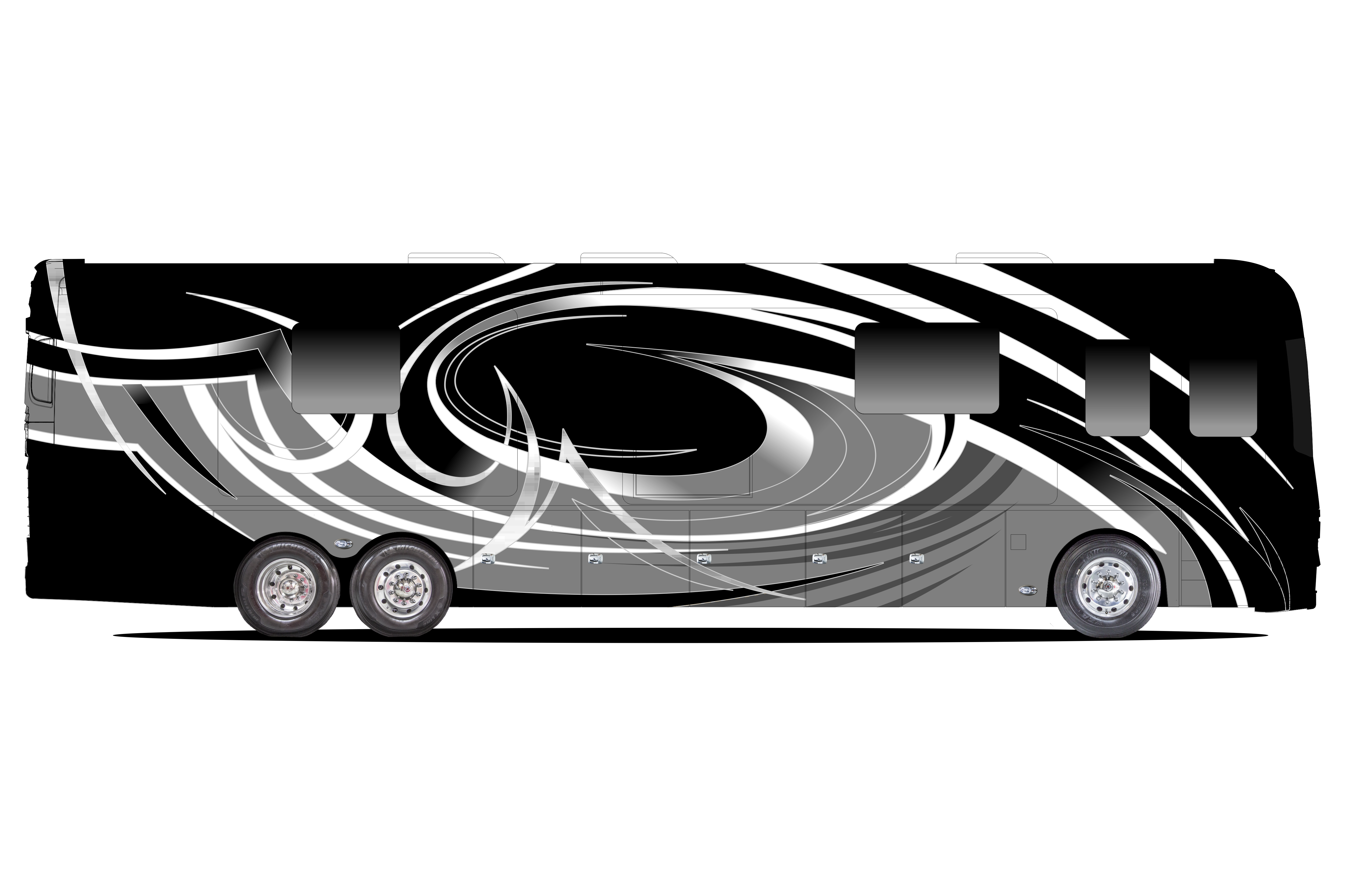

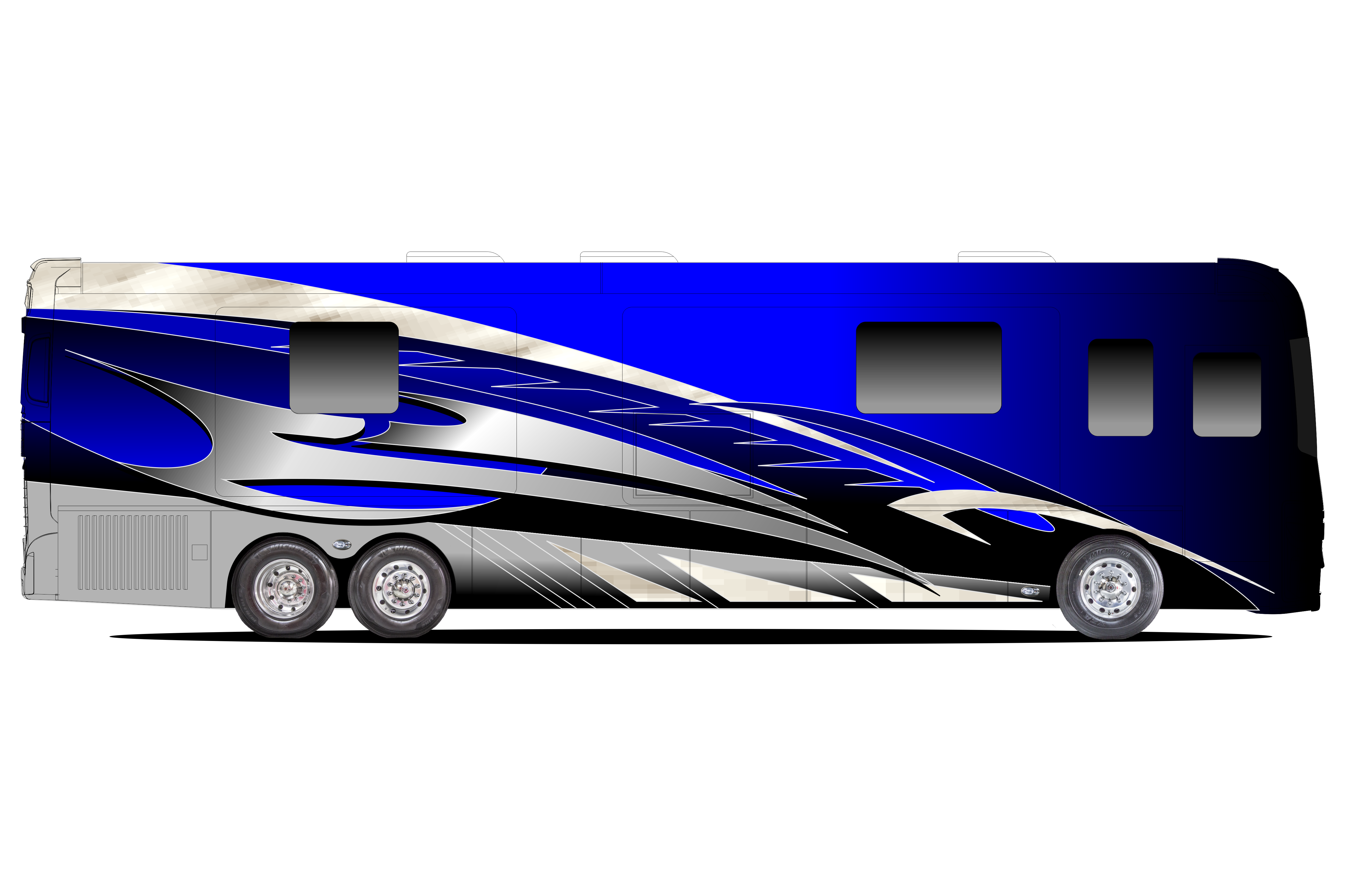

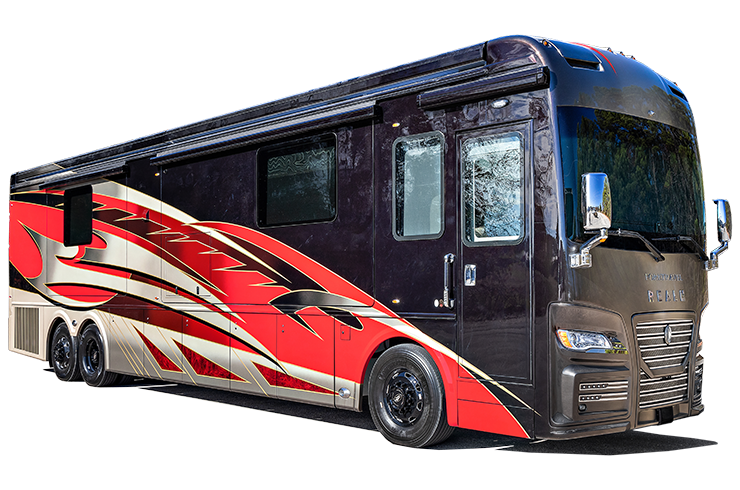

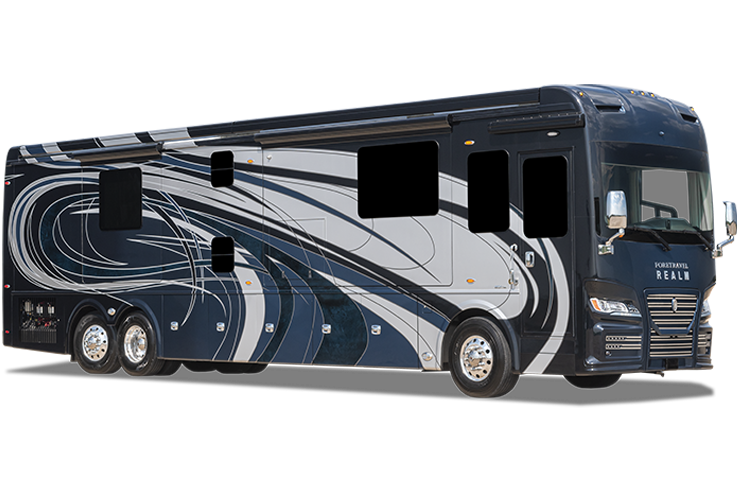

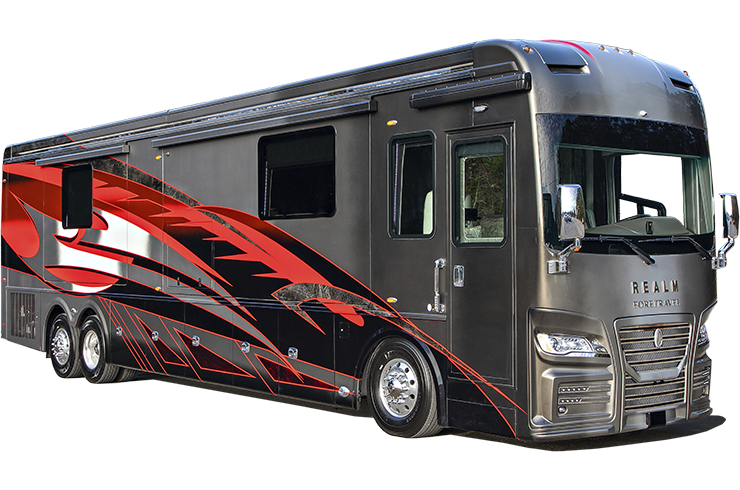

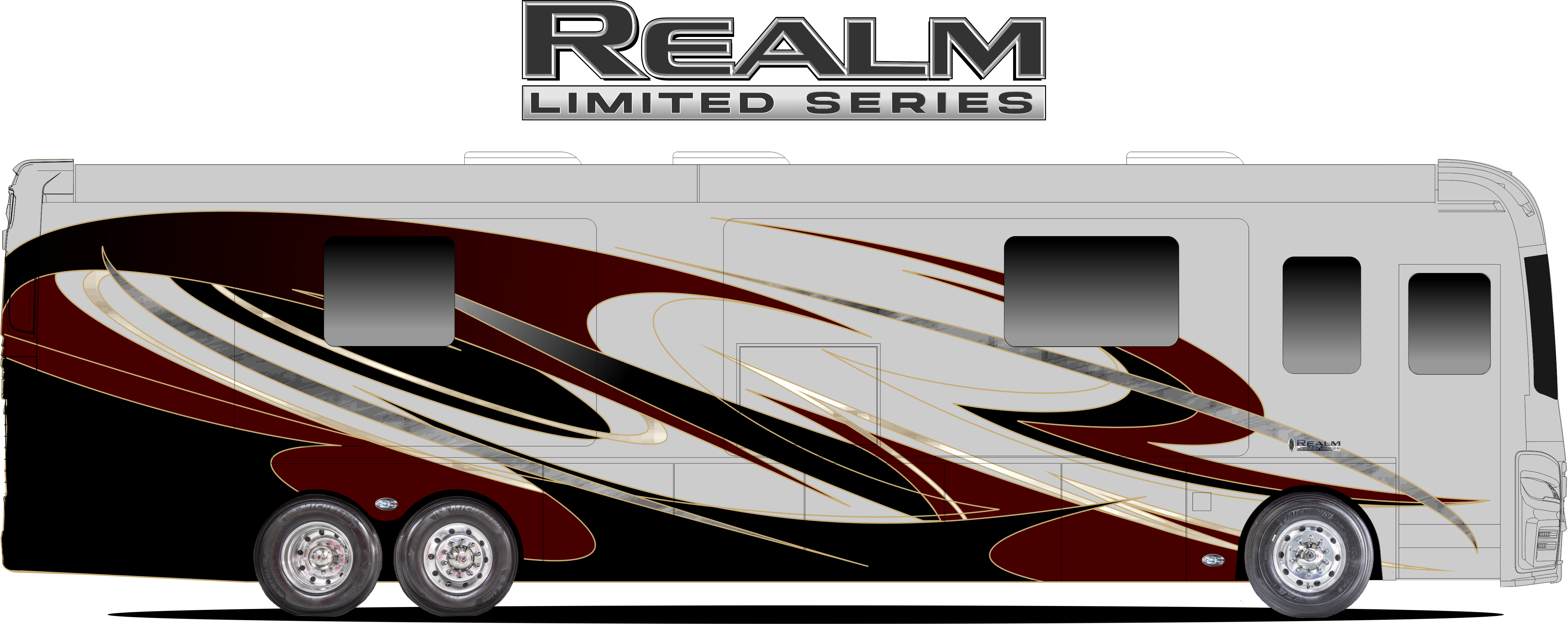

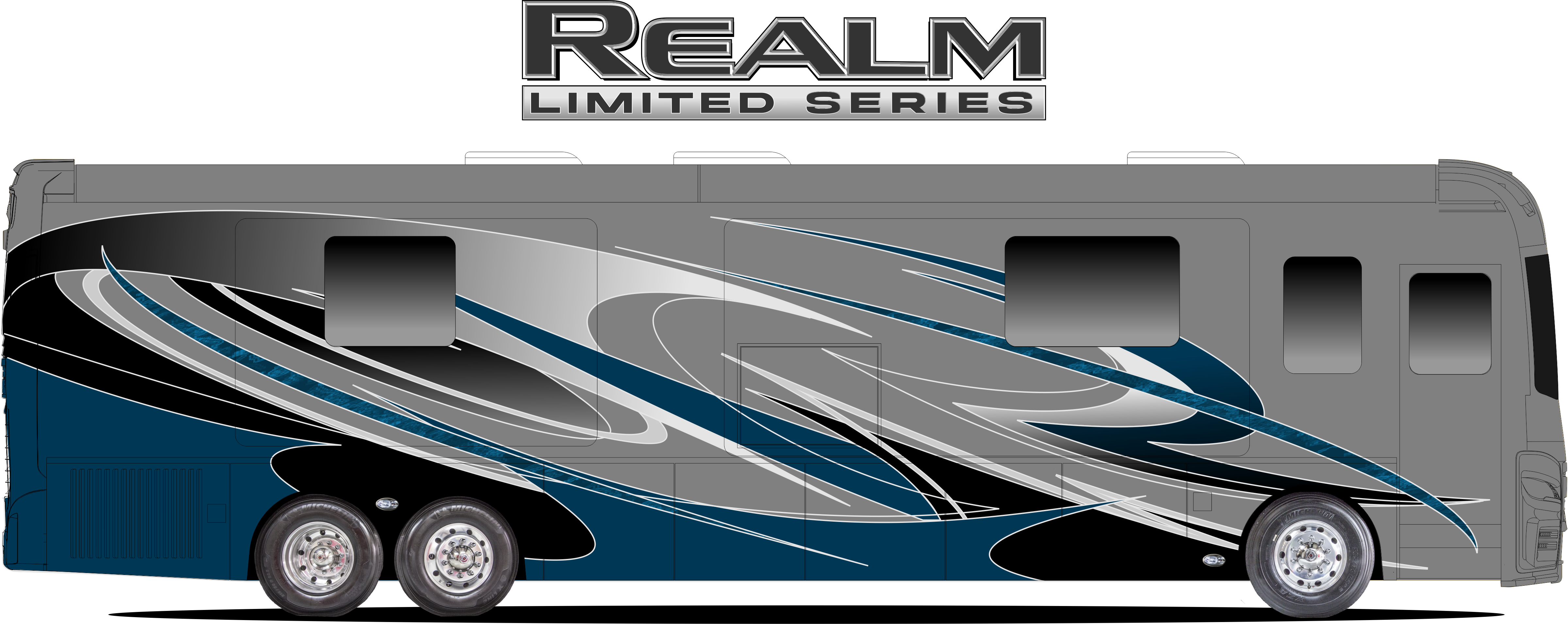

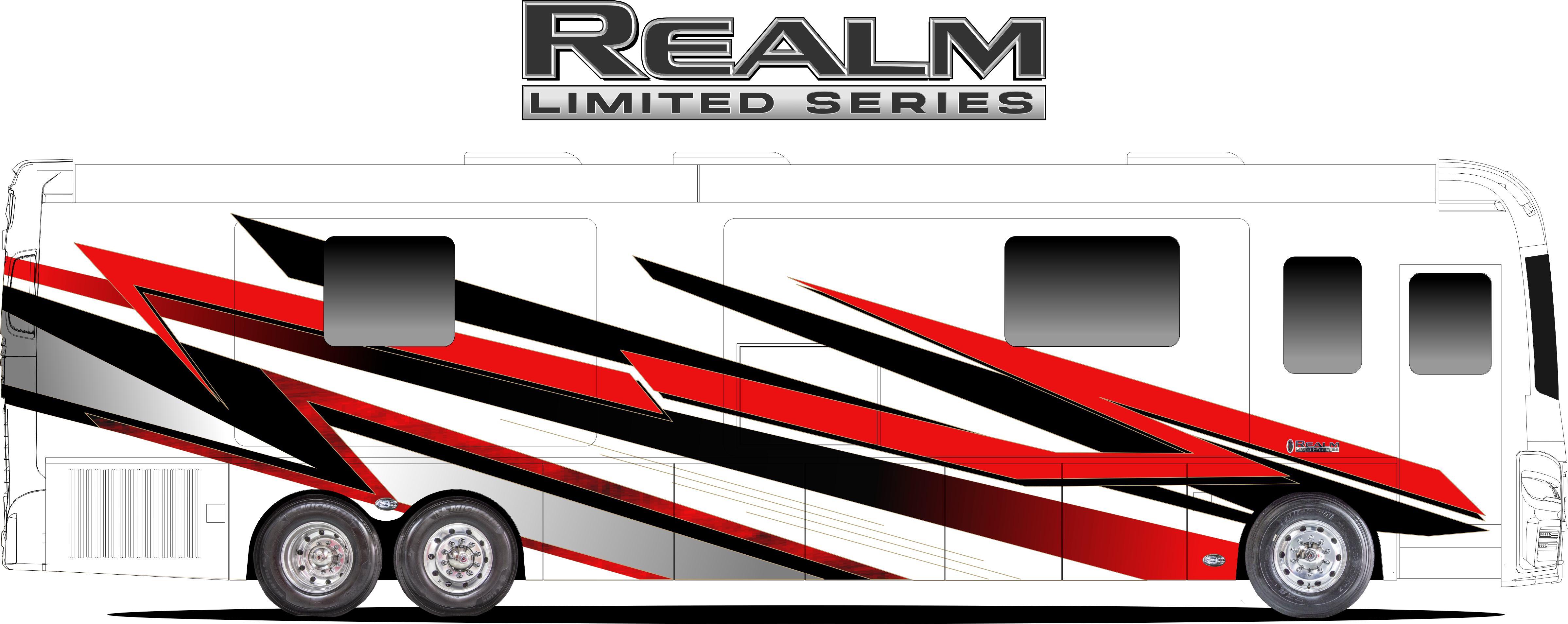

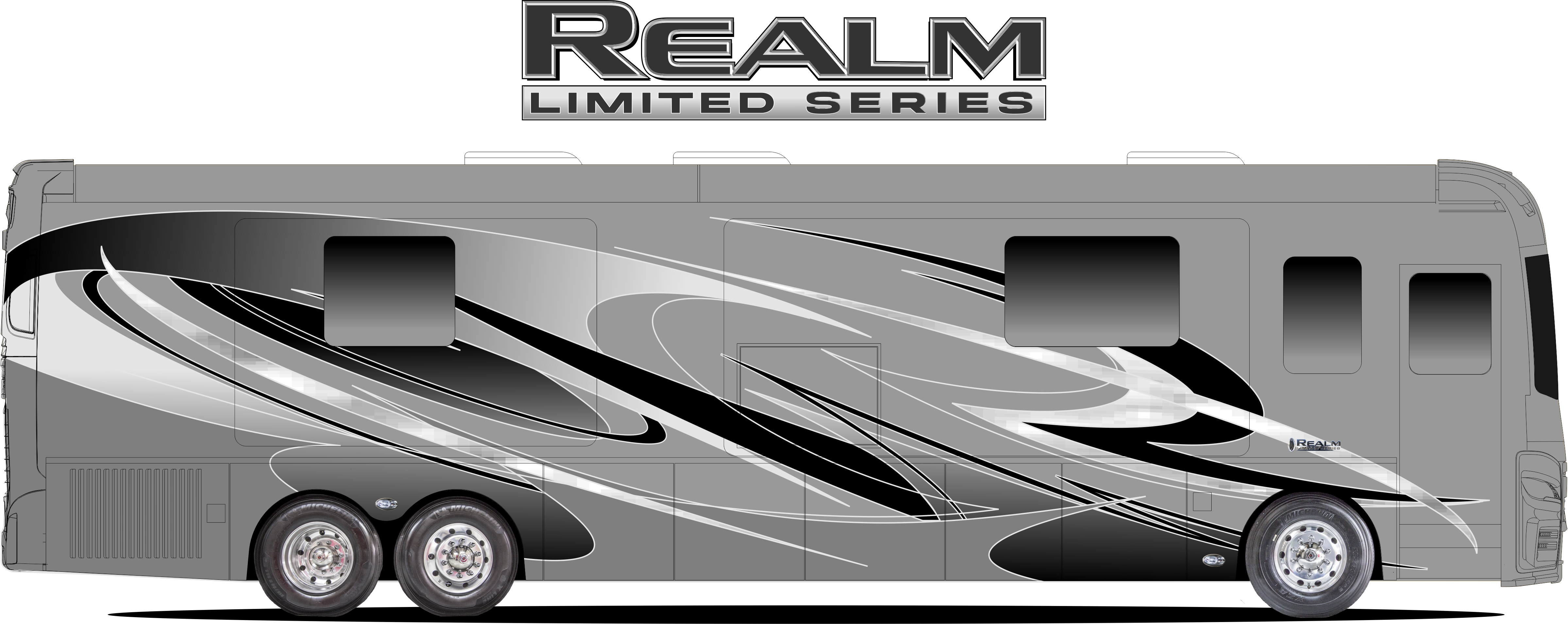

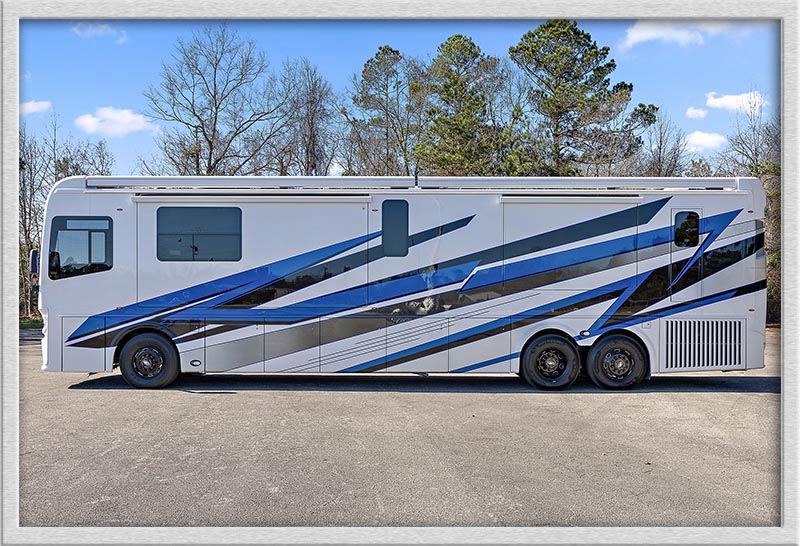

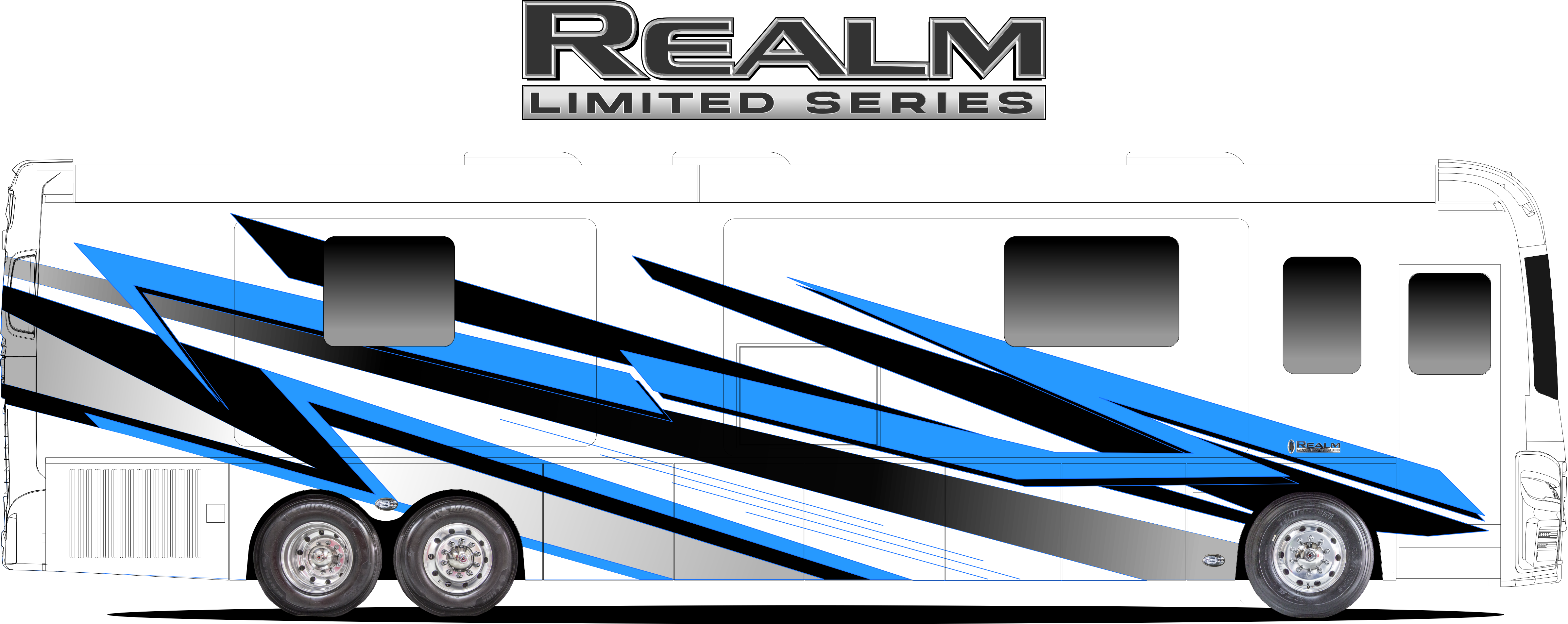

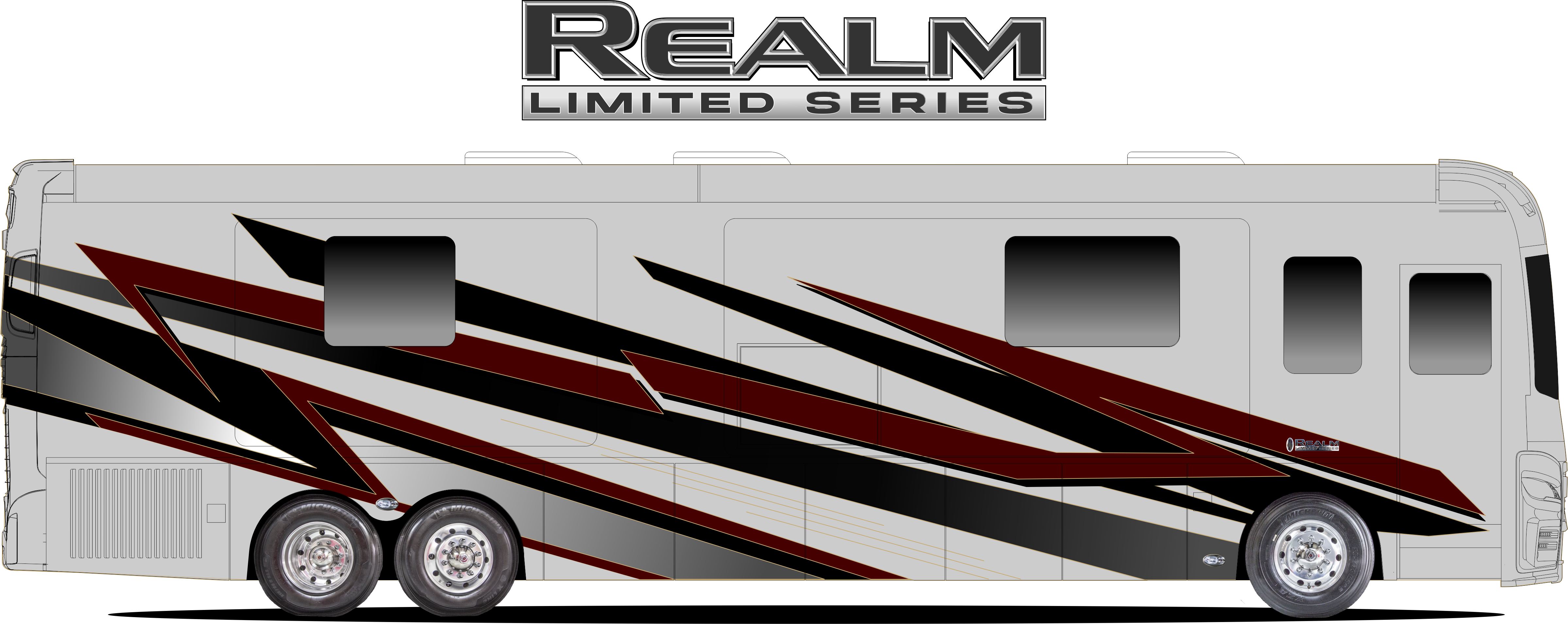

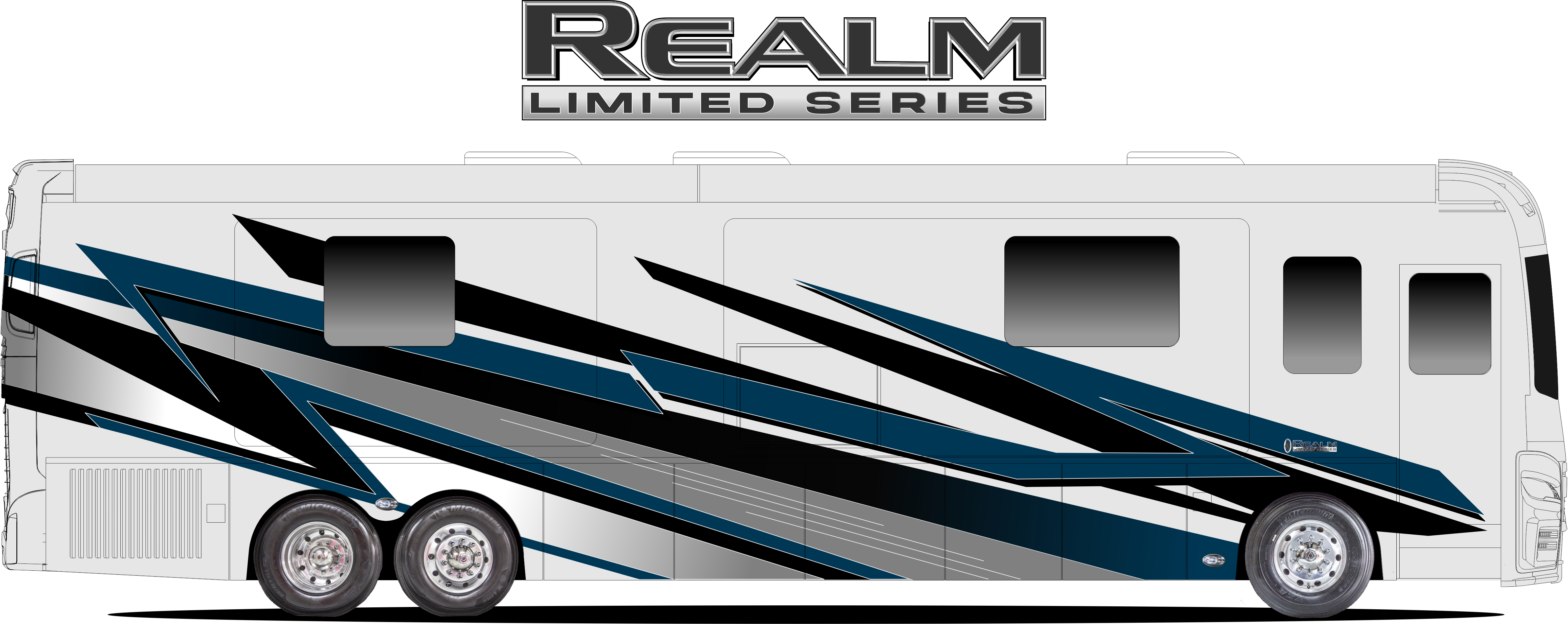

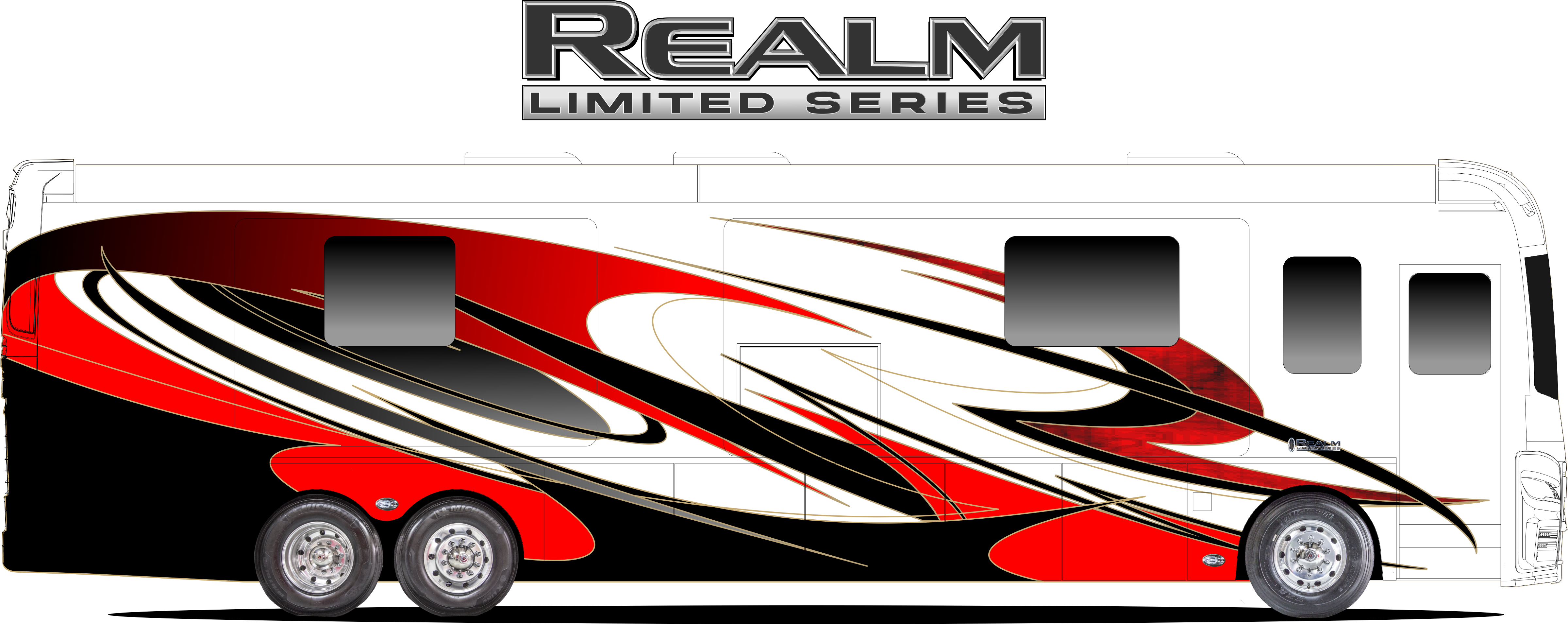

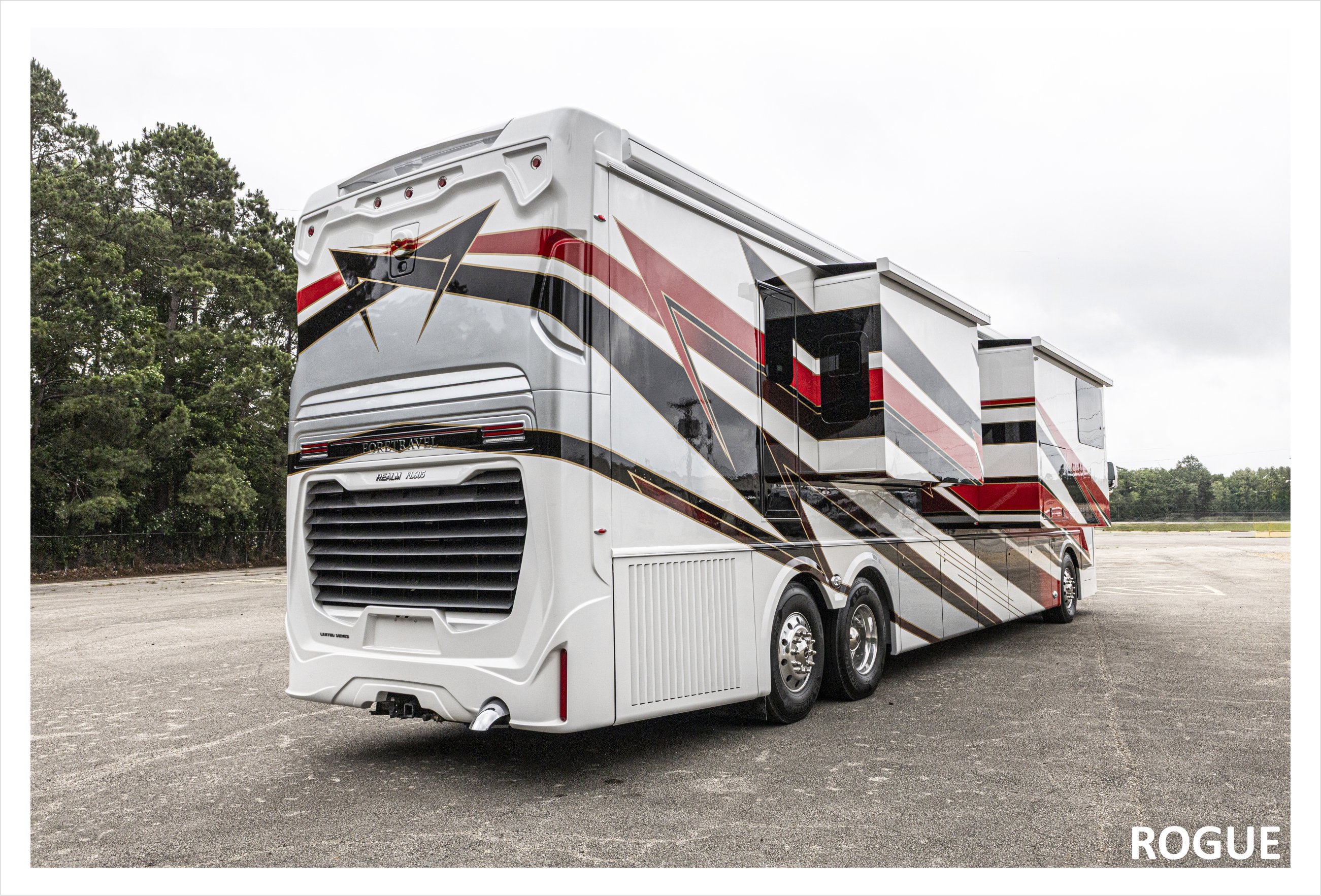

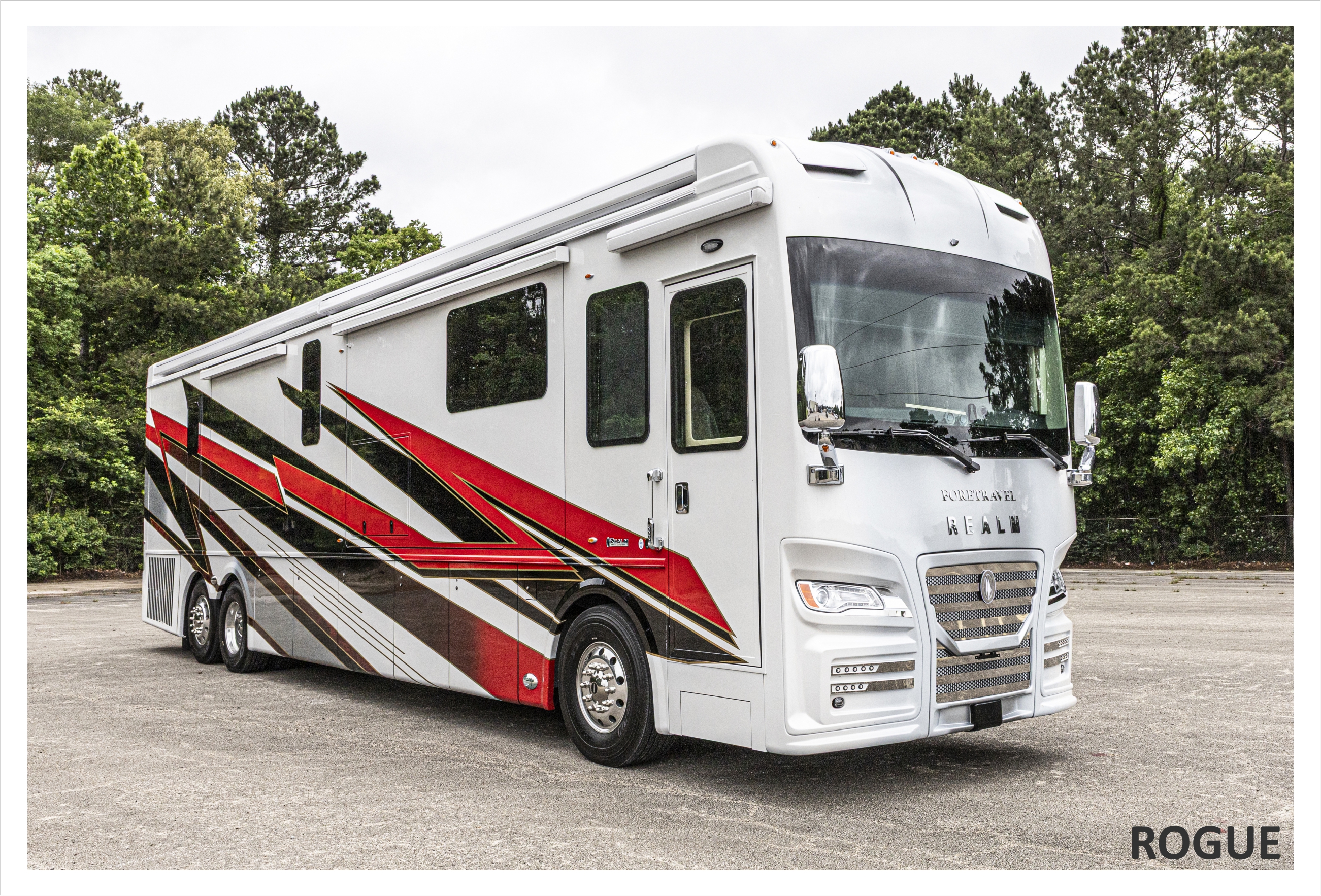

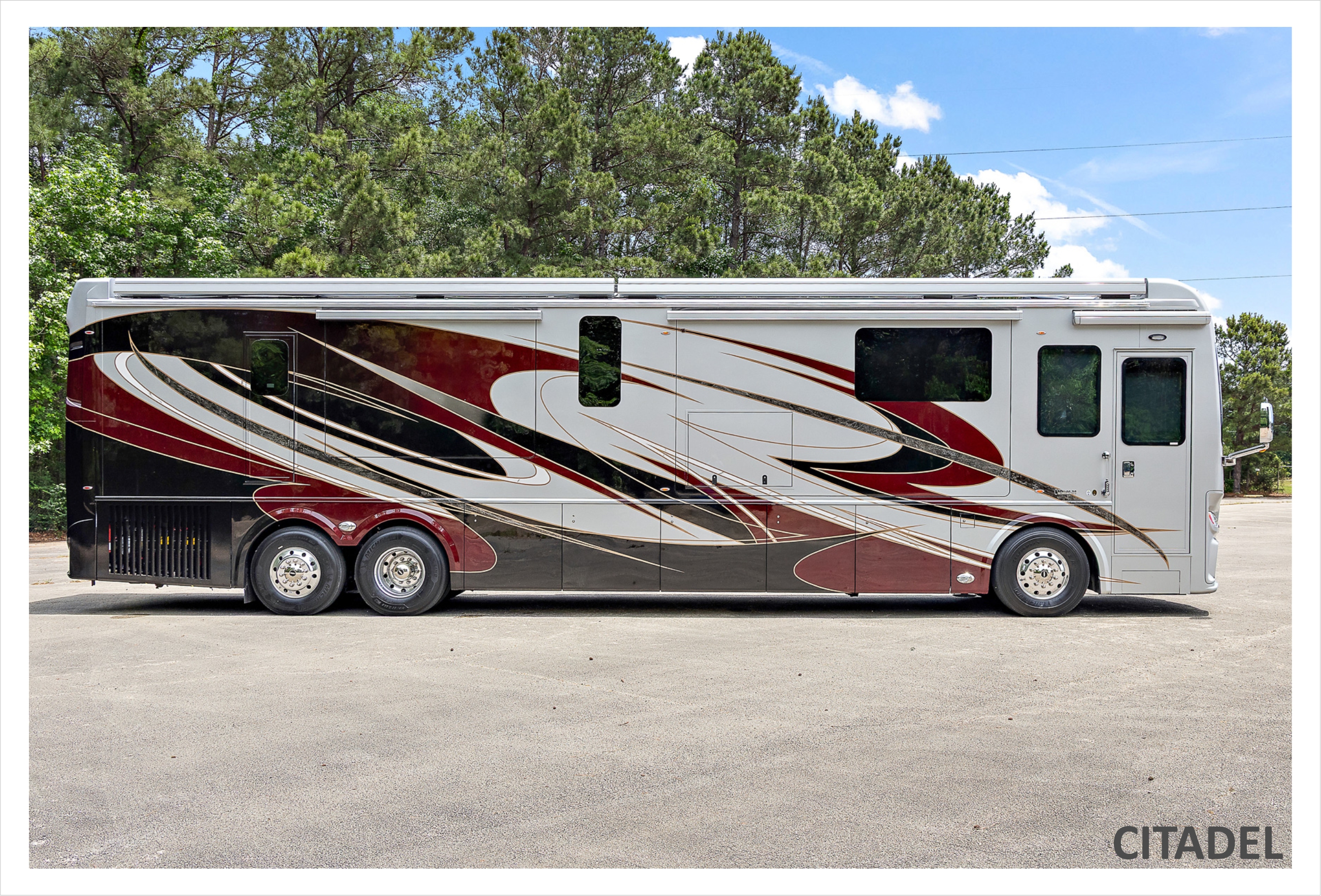

Xtreme-Scheme™ Paint Designs with:

     Paint Protection Below Windshield - Armor Coat

     Full Body Exterior Paint with Multiple Clear Coat Finishes

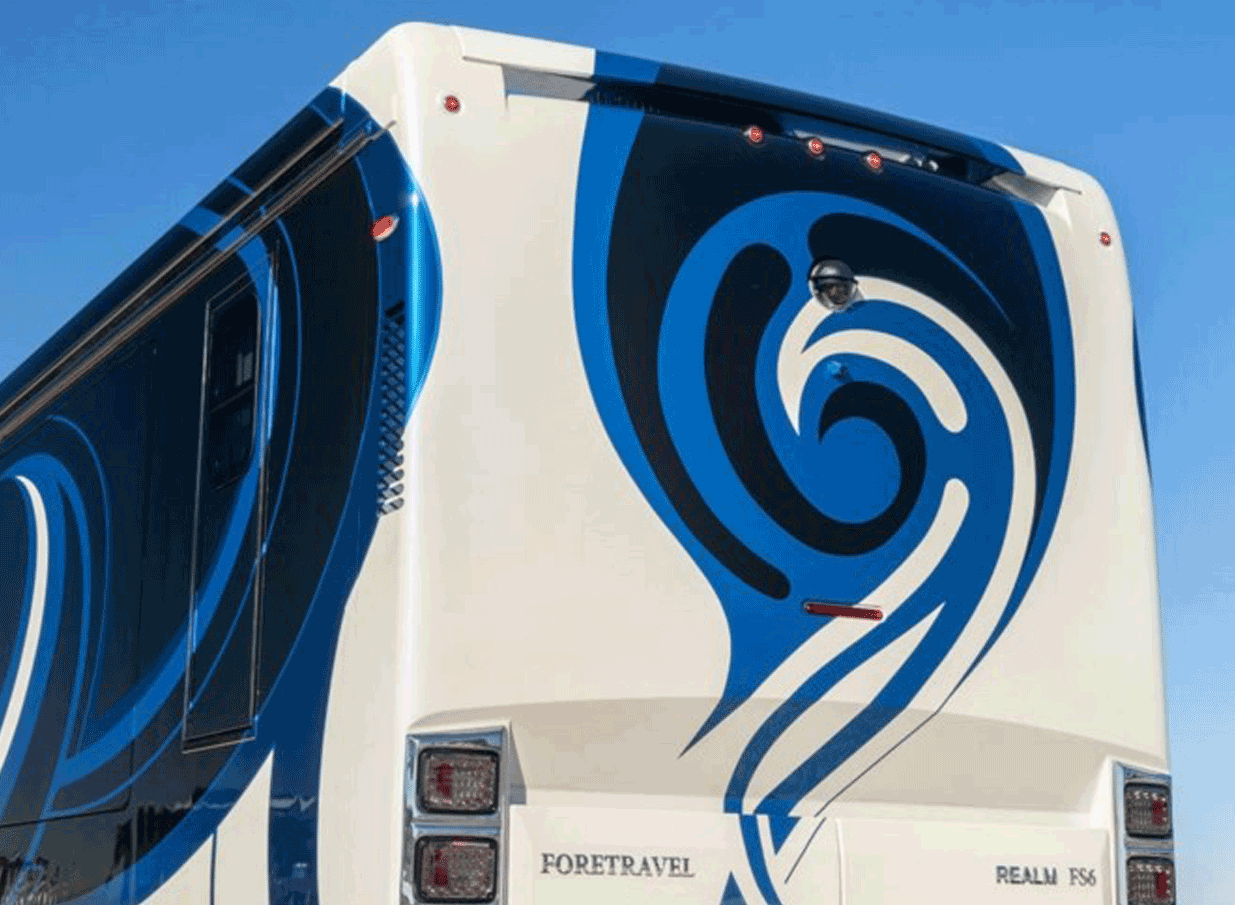

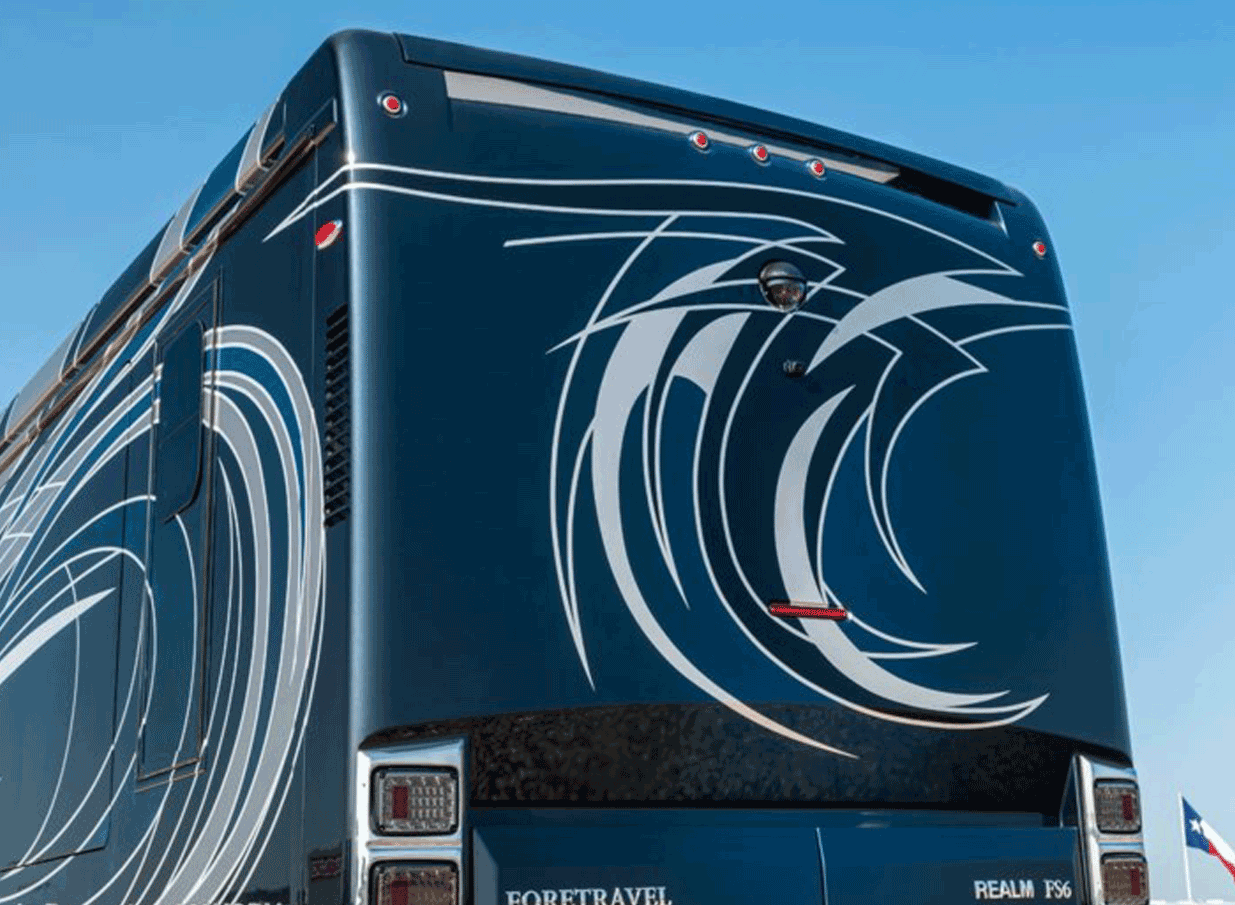

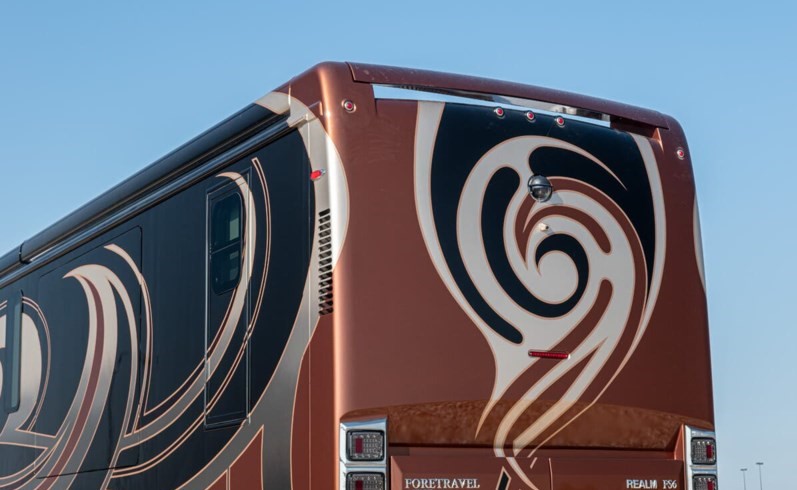

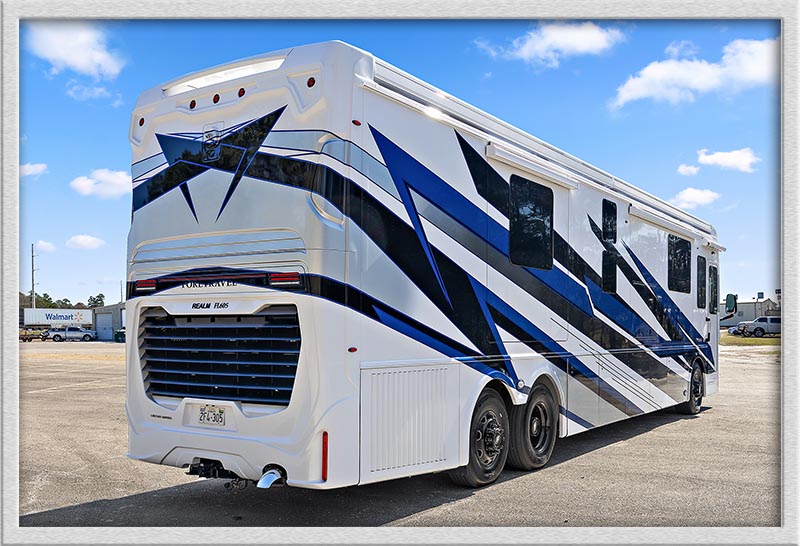

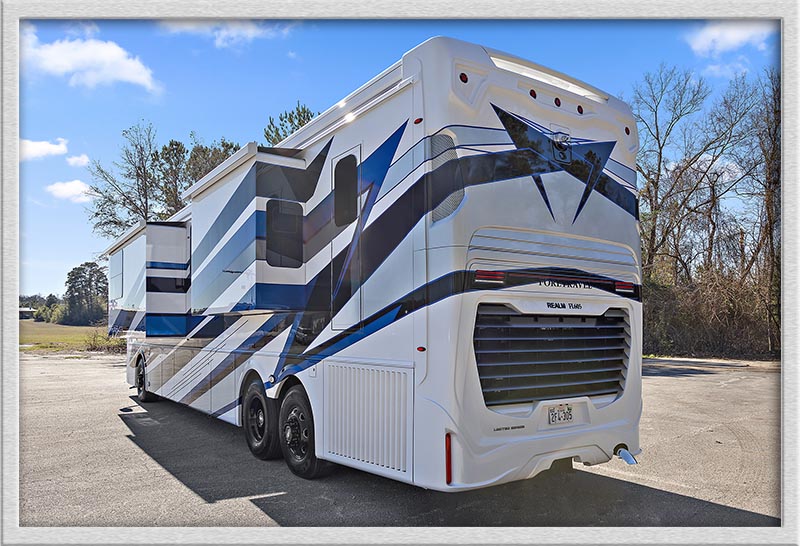

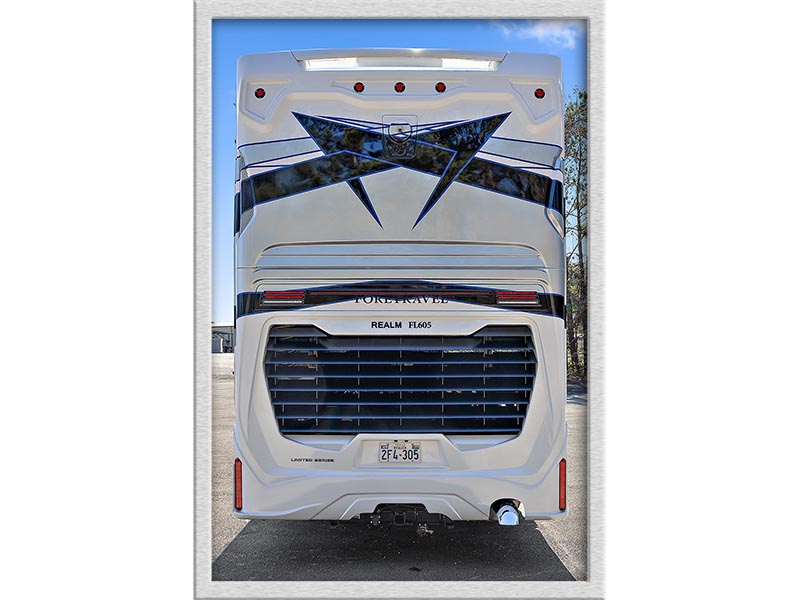

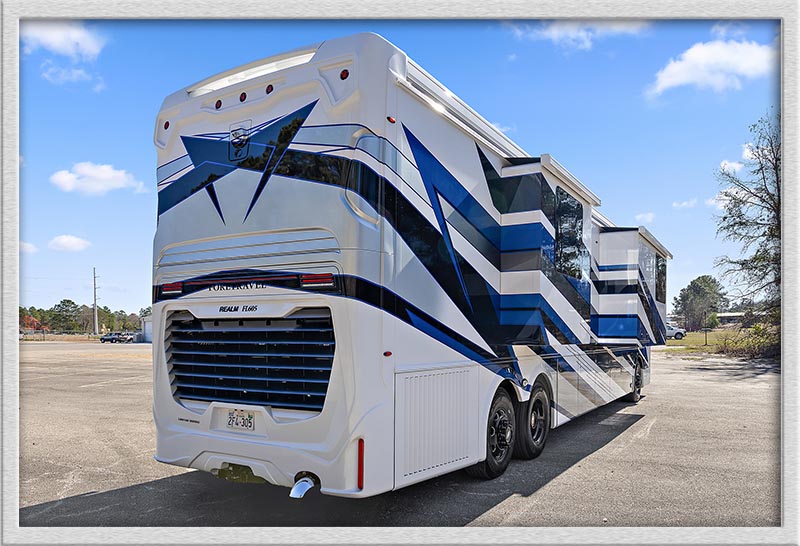

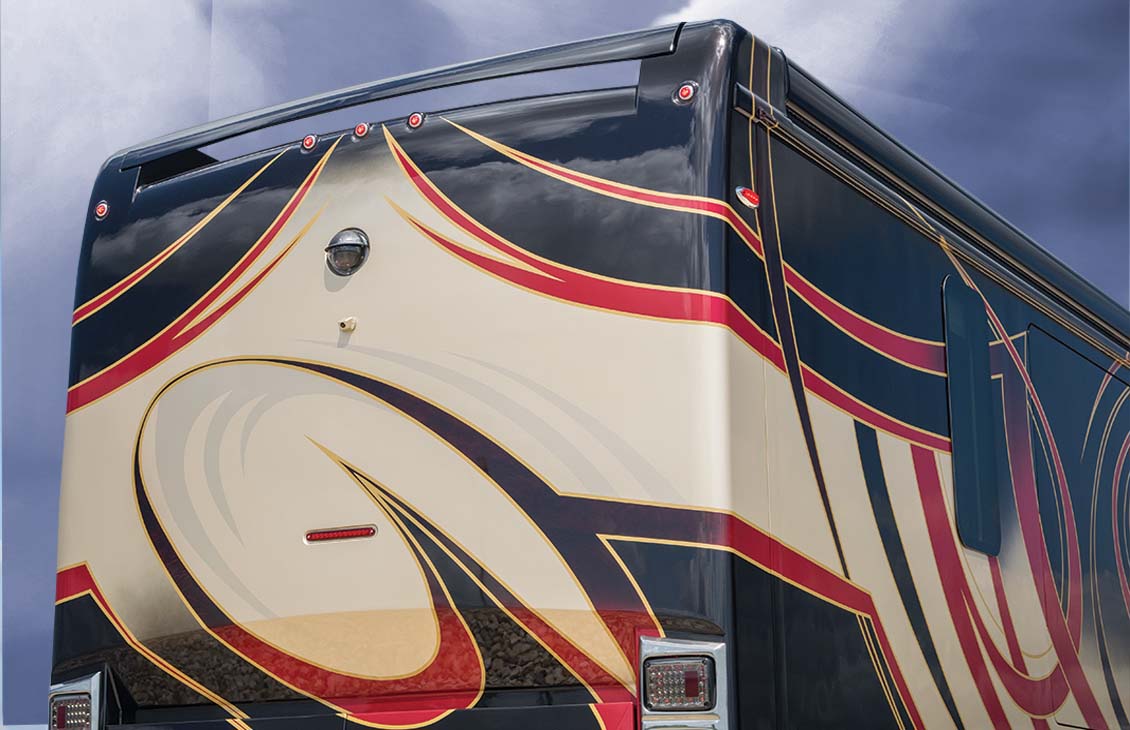

New Redesigned Rear Cap

Roof AC Drains

Trailer Wiring - 7 Pin Connector

Dual Fuel/ DEF Fill Locations (Newly Increased Fuel Venting for Ease of Filling)

Improved Spartan Service Center Bay with Better Accessibility to Maintenance Items

Utility Station:

     50 Amp. Shoreline Connection                                   Fresh Water Connection                                                                                            Water Pump and Water Fill Controls

     Laser Etched Stainless Steel Utility Bay Panels        Tank Level Monitor Screen                                                                                    Single Waste Tank with Electric Valves and Grey Water Bypass

     Cable TV Connection                                                     120v Receptacle                                           Sewer Connection Above the Cargo Floor in Utility Bay

     Electric Utility Reels - Water and Power                   Water Faucet with Soap Dispenser          LED Accent Lights in Stainless Steel Panel

DASH and COCKPIT FEATURES

Push Button Ignition

15” Digital Valid Dash w/ VDC Control

Dimmable Accent LED Lights below the Dash

Wireless Charger at Passenger Chair

Wireless Phone Charger at Driver Console

Illuminated Cup Holders

Passenger Magazine Rack with Phone Storage and

     120V/ USB Charger Receptacle

DASH and COCKPIT FEATURES, Continued

Padded Dash Top

2 Dual USB Charge Receptacles

Battery Boost Switch/ Auto-Charge; Generator Auto Start/ Stop

Cameras: 7 Total

• One Total Vision Motorized Back-Up
• Two Side Mounted Integrated in Mirrors
• Four Perimeter 360 Birds Eye View

Dedicated Driver Monitor Camera Display for All Cameras

Dash AC Fan Controls for Co-Pilot

Xcite G4 Infotainment System:

• GPS, AM, FM, Sirius/XM (Subscription Required) Bluetooth, USB, and iPod Compatibility
• Integrated Cockpit Controls
• Integrated Mobileye display
• Increased Display Monitor Size to 9”
• Apple Car Play Compatible

Passenger Touch Screen Monitor with GPS and Camera Display

Map Lights, Pilot and Co-pilot

Suspended Power Adjustable Throttle and Brake Pedals

Villa 6-Way Power Adjustable Driver Chair with Heat, Cool and Massage Feature (With Haptic Warning System)

Villa 6-Way Power Adjustable Residential Co-Pilot Chair, Motorized Footrest with Heat, Cool and Massage Feature

Premiere Steer™ Steering Column Assist System

Power Tilt and Telescoping Steering Column

Tri Touch Smart Wheel with Radio Controls, Cruise, ICC Controls with Phone Control Integration

Electric Windshield/ Privacy Shade and Sunblock

APPLIANCES • ELECTRONICS • LIGHTING • AUDIO-VIDEO

4K 50” LED Smart TV in Livingroom (Front Fold Down, Floorplan Dependent)

4K 65” LED Smart TV (LV2 Floorplan Only)

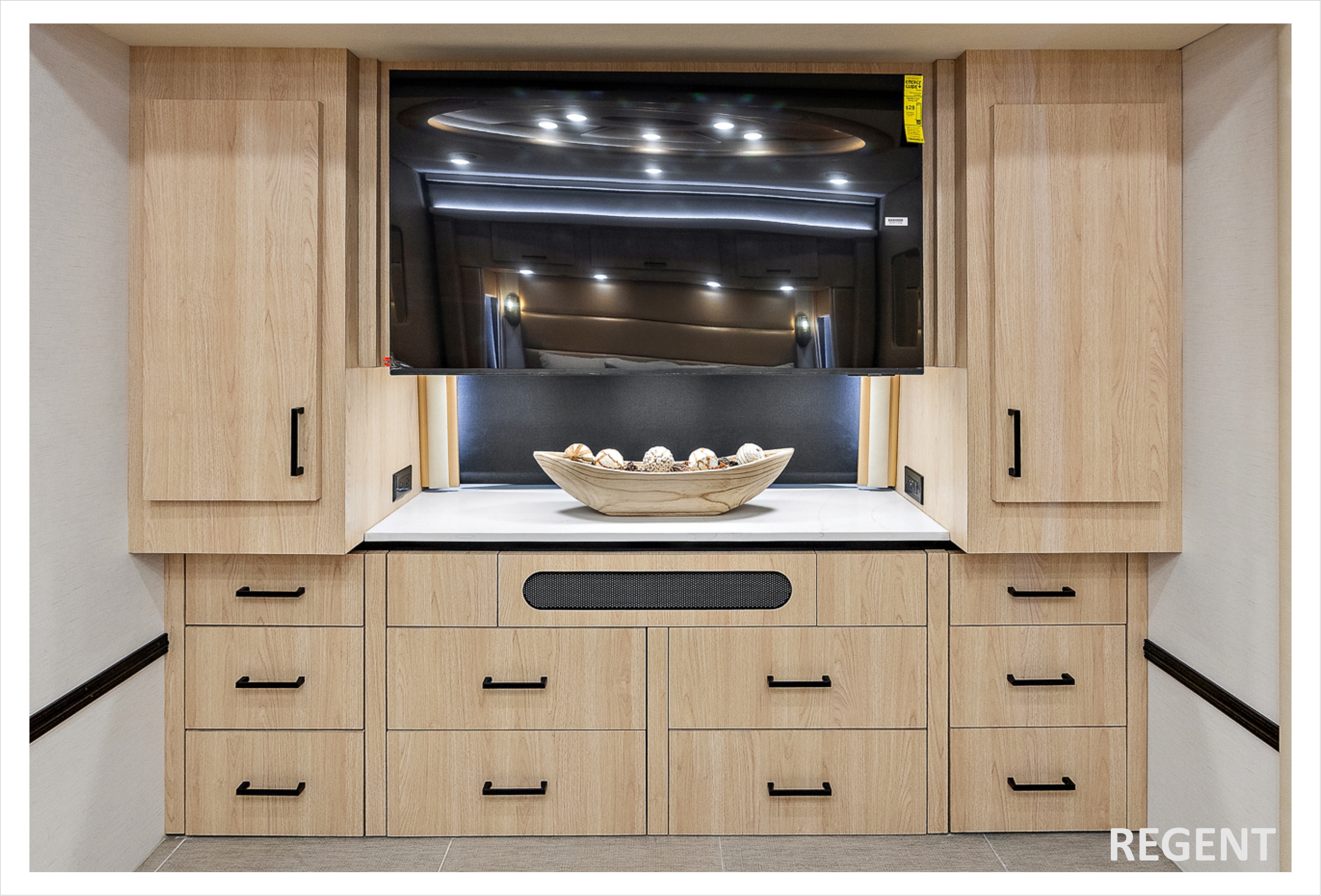

4K 50” LED Smart TV in Bedroom on Lift with Soundbar

4K 43” LED Smart TV Outside in Patio Entertainment Package With Soundbar

1080P 32” LED Above Sofa (Floorplan Dependent)

Silverleaf Total Coach Control System

Touch Pad Behind Drivers Chair for Lighting and Shade Operation

Apple iPad with AV and Multiplex Lighting Control

Wi-Fi Ranger, Converge Model

Consolidated Back Up Controls for Thermostats, Water Pump, Water Fill and RVC Reset

Audio-Video:

     HDMI and CAT6 Shielded A/V Cabling

     5.1 Surround Sound System in Living Room

     Stereo Sound System in Bedroom

     Blu-Ray Player

     Winegard-Rayzar Automatic Domed HDTV Antenna

     Stationary HD Satellite with Component Connection Plate (Directv or Dish Network)

     Consolidated A/V Equipment Between Bunks

Appliances:

     Convection Microwave

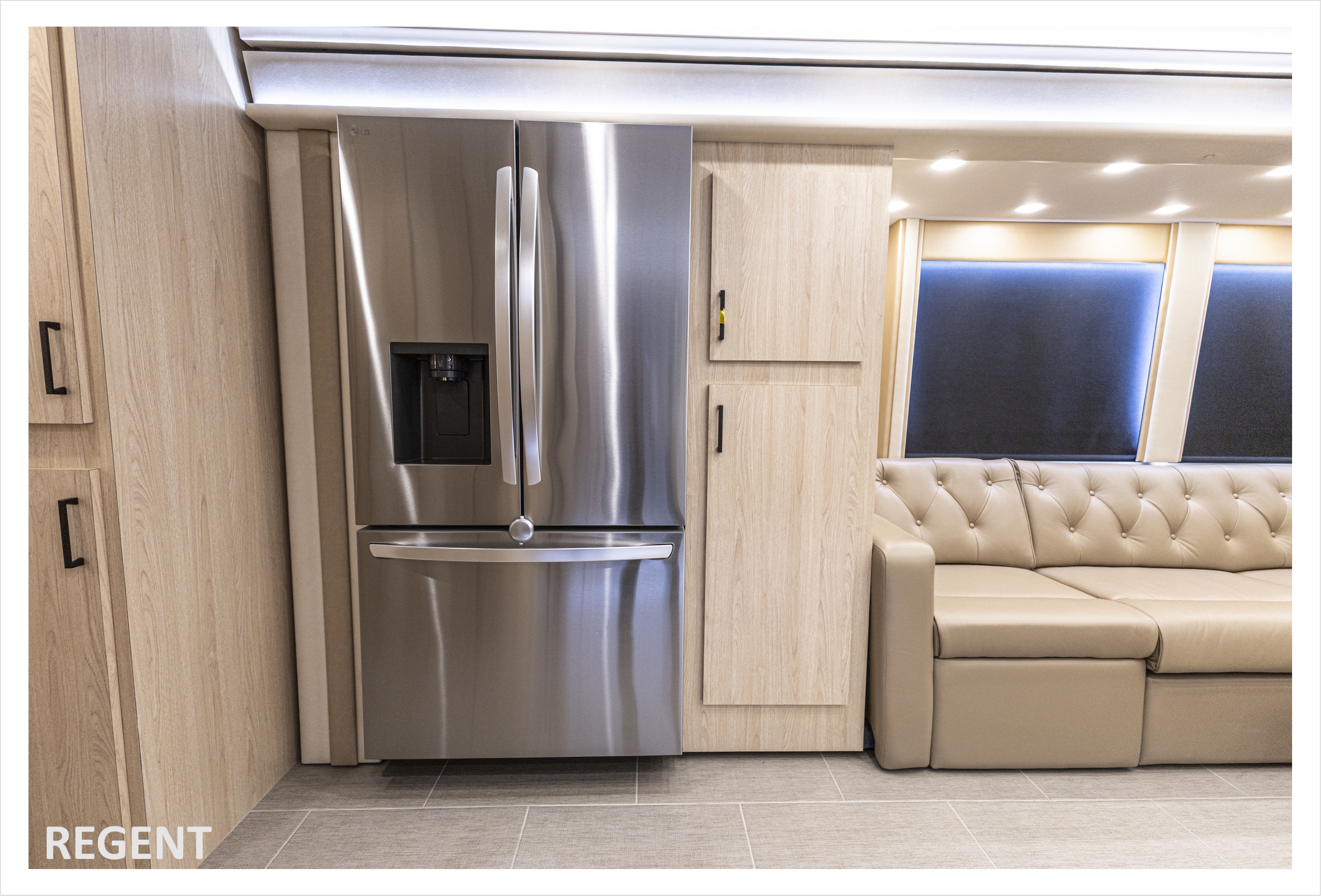

     Residential Refrigerator

     Two Burner Induction Cook Top Recessed with Cover

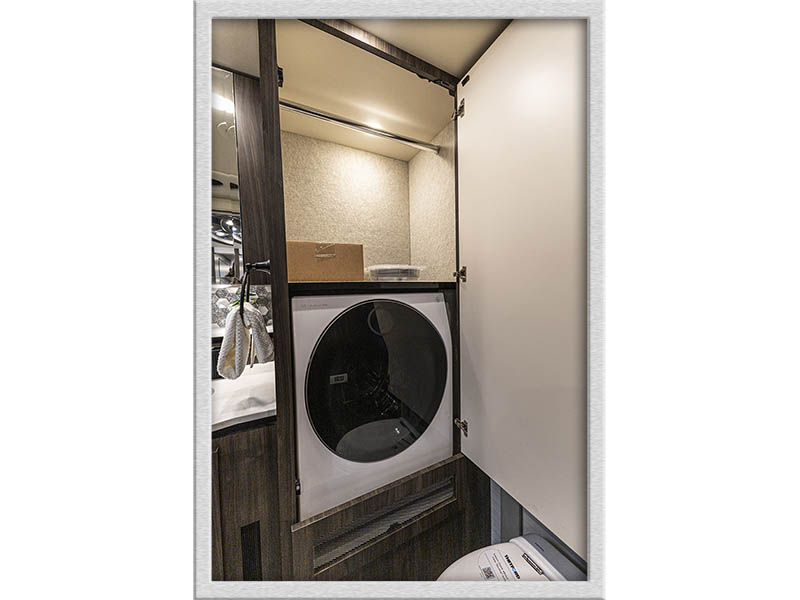

     Stacked Washer/Dryer (Floorplan Dependent)

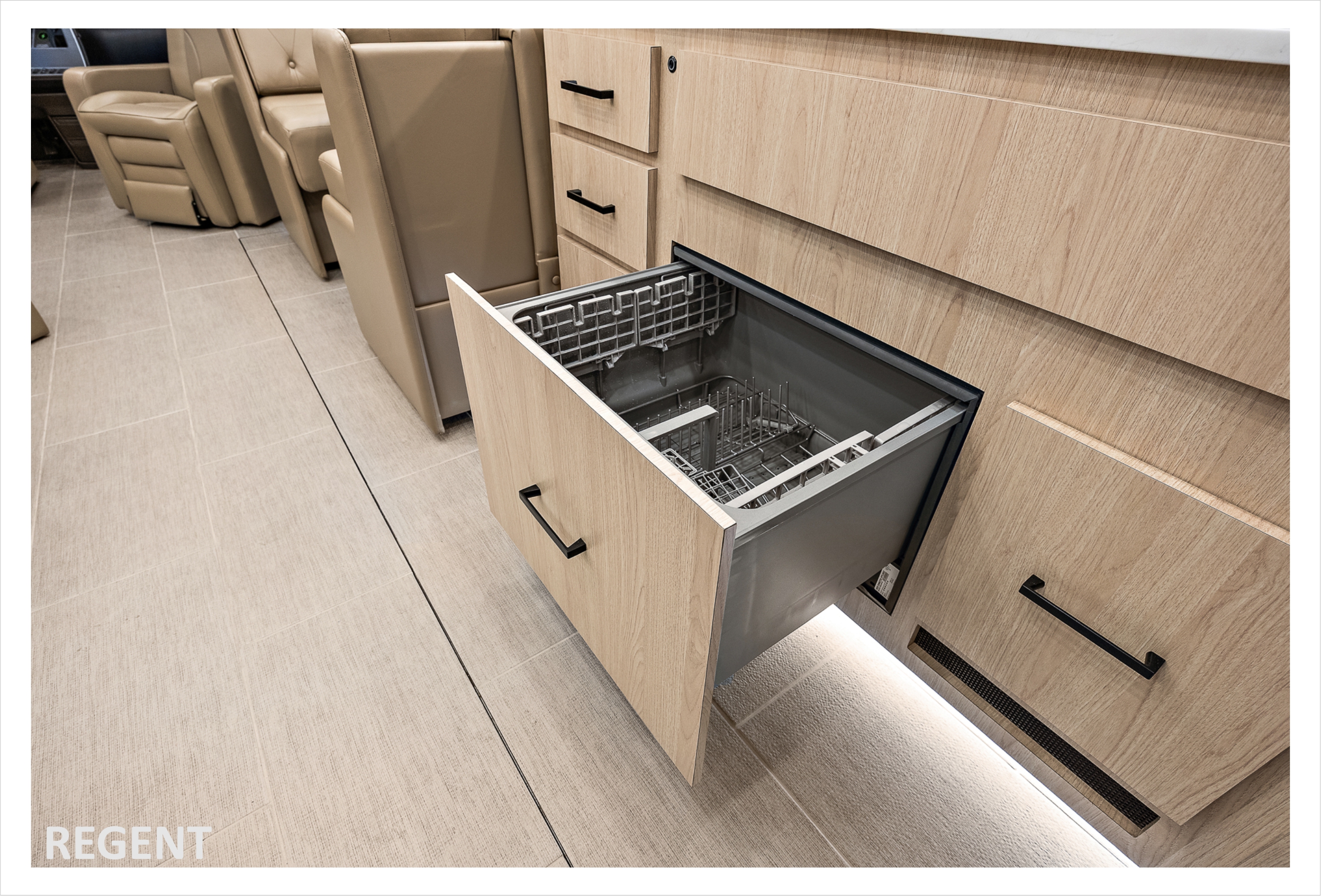

     Fisher Paykel Dish Drawer

Dimmable Interior LED Lighting:

     Under Countertops                    Window Trim                Toe Kicks

     Entry Door                                    Floor                               Reading Lamps

     LED Accent at Toe Kick of Cabinets

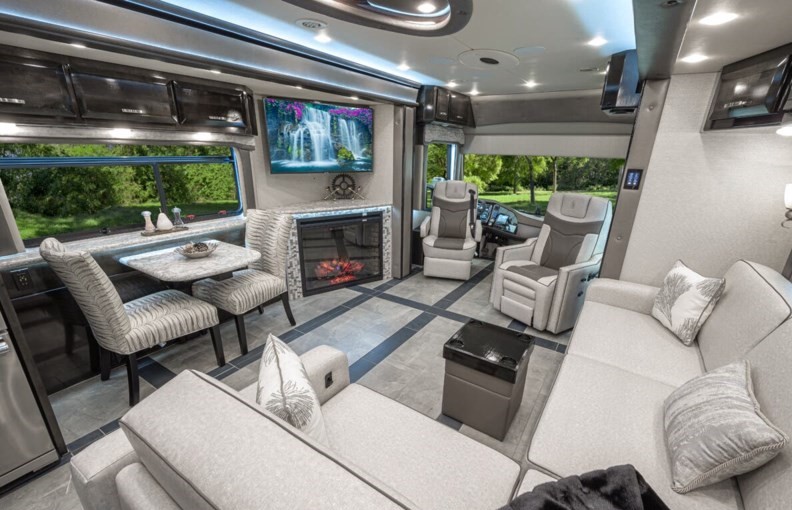

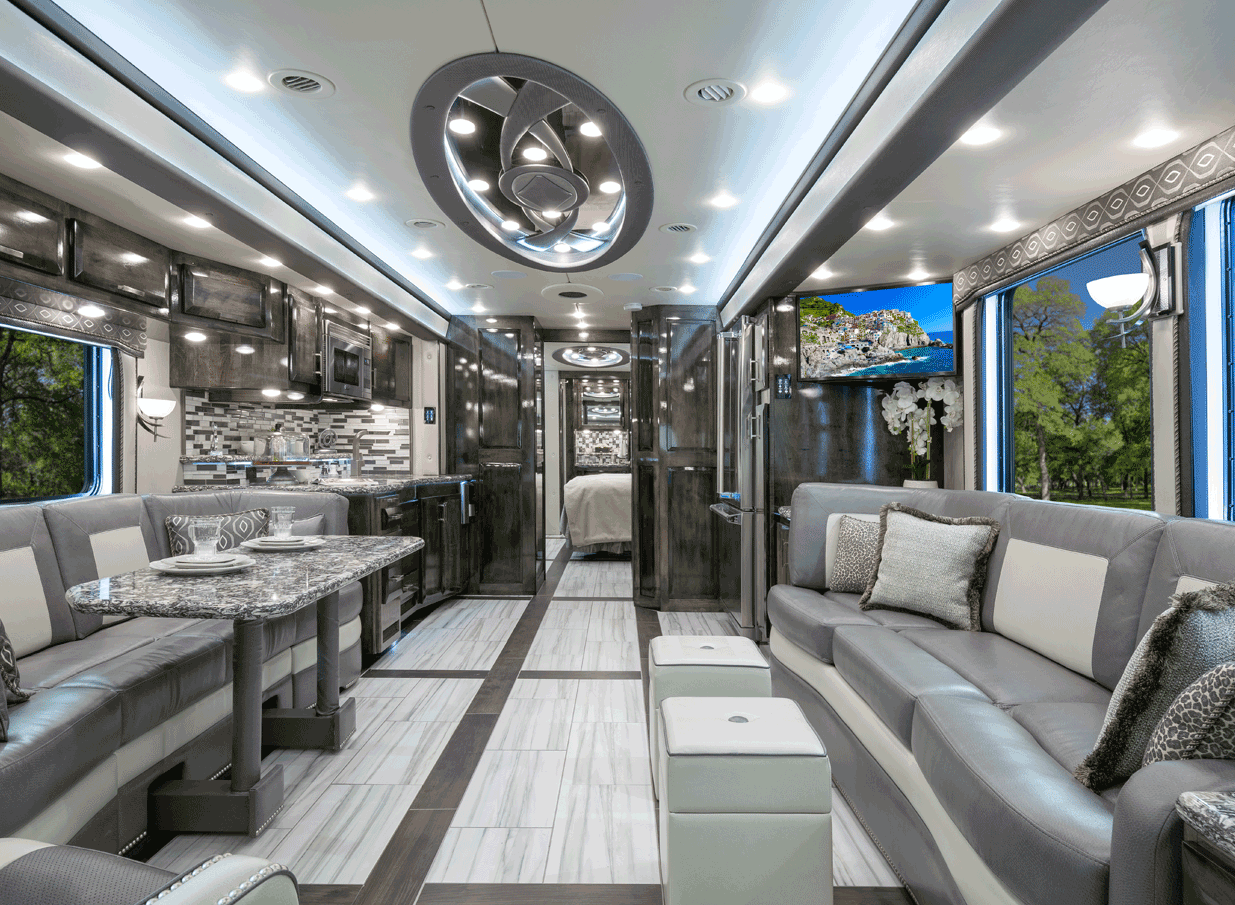

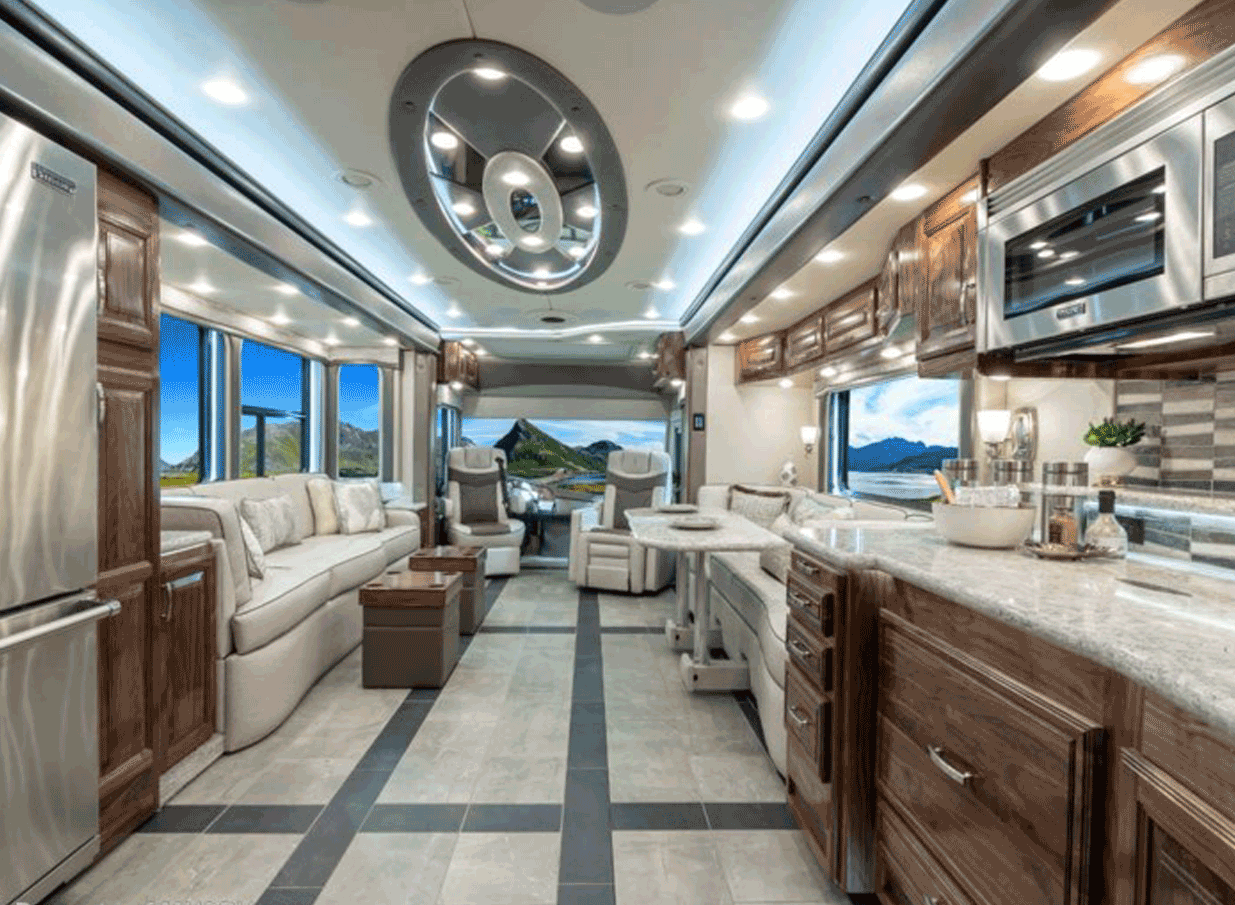

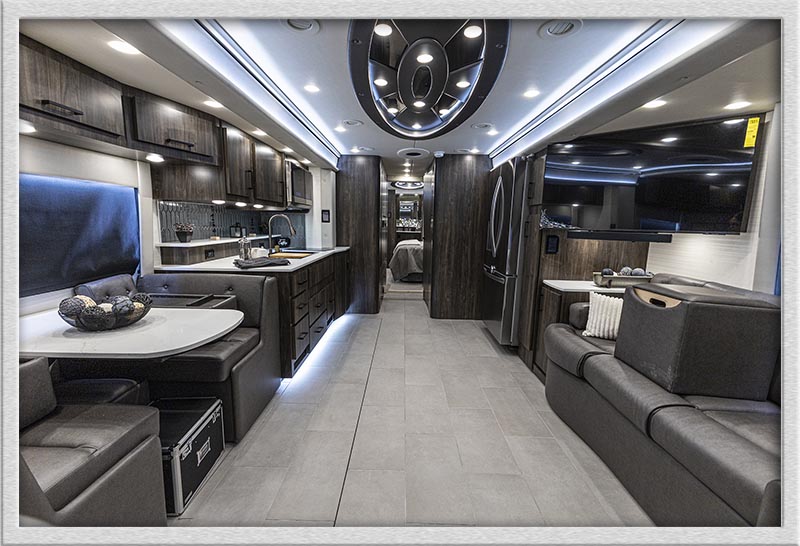

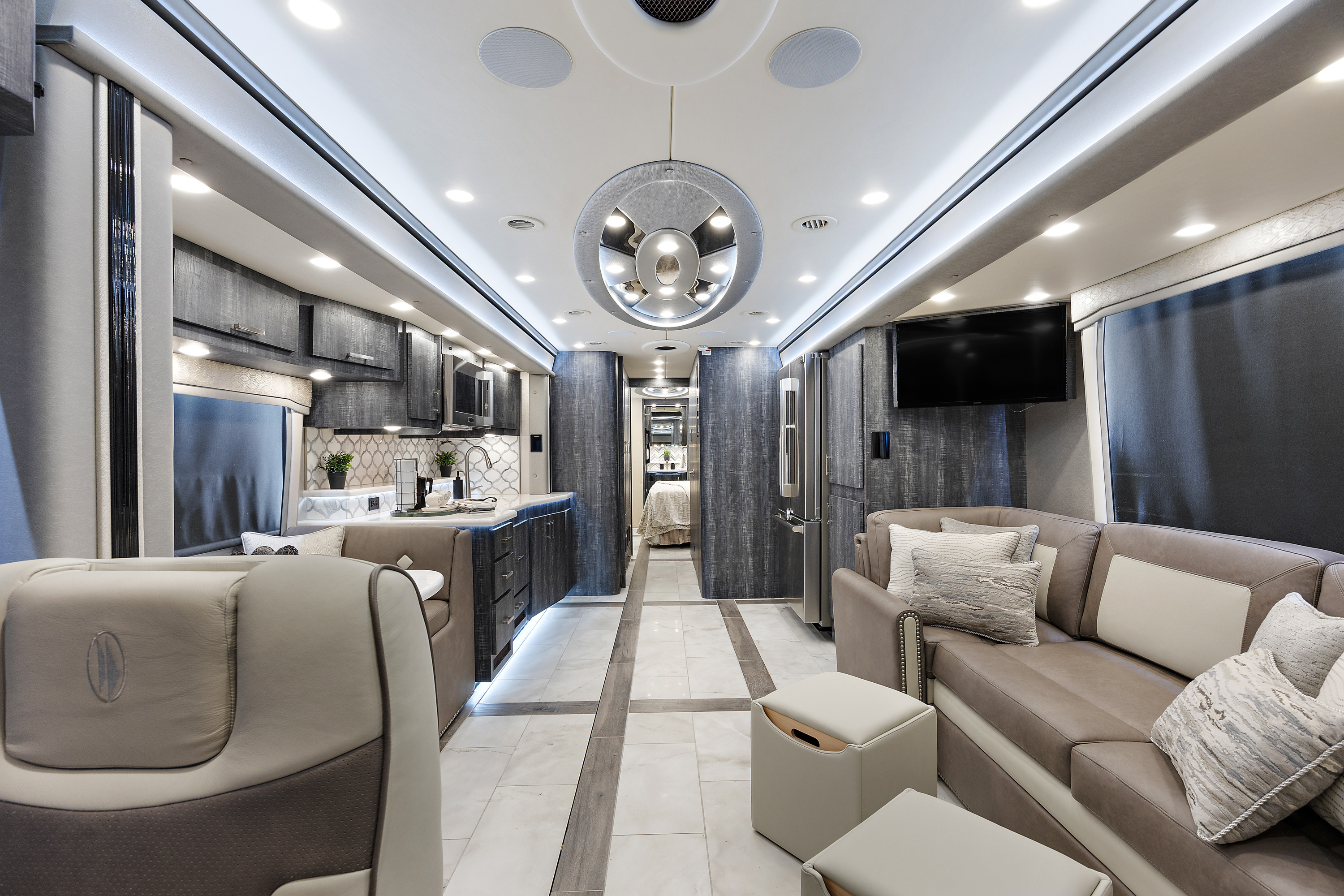

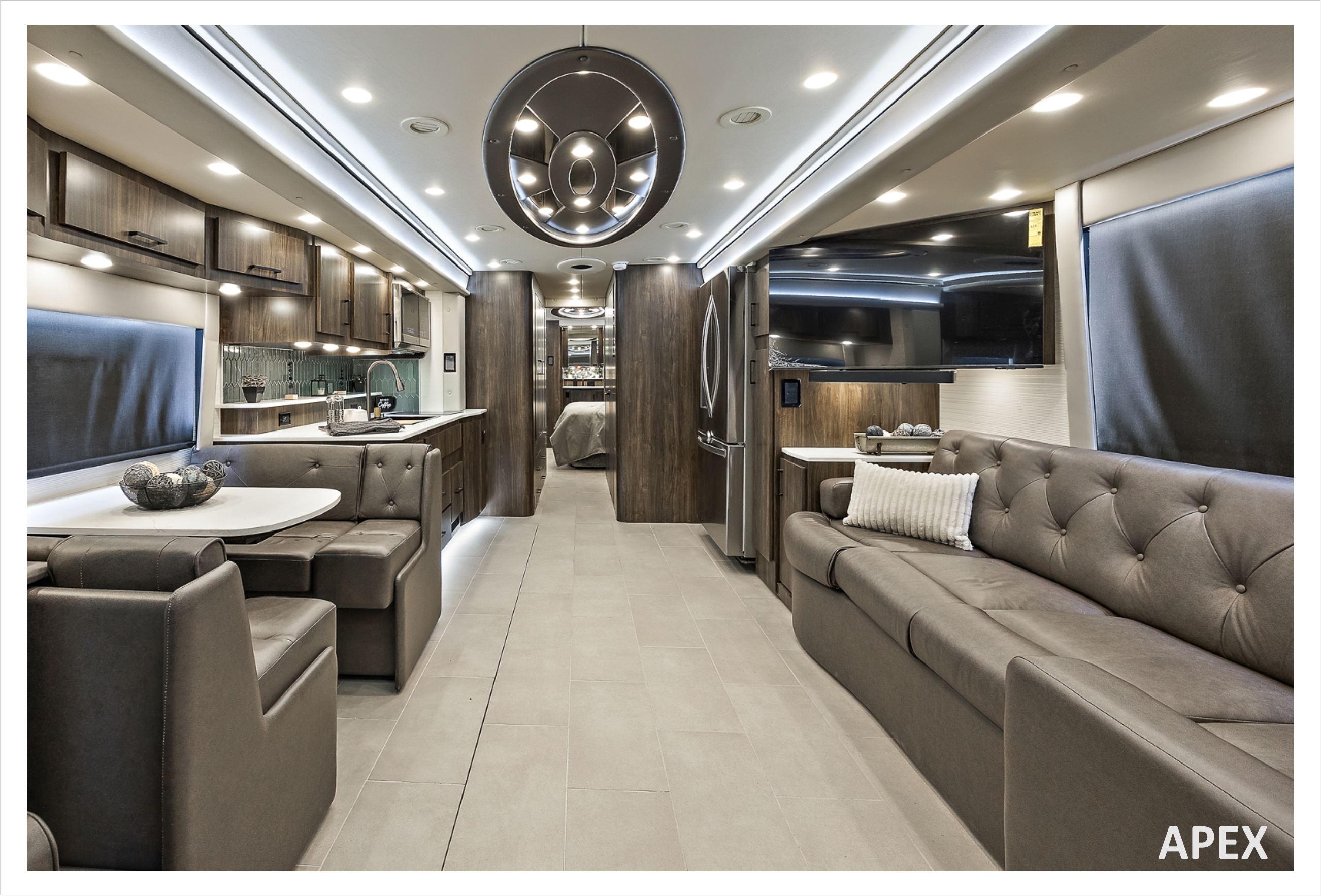

INTERIOR LIVABILITY FEATURES

Hand Crafted Wood Cabinetry

Cambria Natural Quartz Countertops

Filtered Ice and Water Dispenser

Uvia Lite added to Waste Tank (No Chemicals Required) with Integrated Service Indicator on House Panel

Soft Close Pocket Doors (Single Door Only)

Tile Flooring Through-out Coach

Full Flush Floor Front to Rear

120V Outlet with Dual USB Charge Ports in LR and BR

Multiplex Lighting System

Powered Step-Well Cover with Two Switch Locations

Motorized Table (Floorplan Dependent)

Foretravel Professionally Designed Bedding and Throw Pillows

Foretravel Professionally Designed Window Treatment with Electric Day/ Night Shades

Built in Vacuum with Hose Connection

Beveled Mirrors on Medicine Cabinet

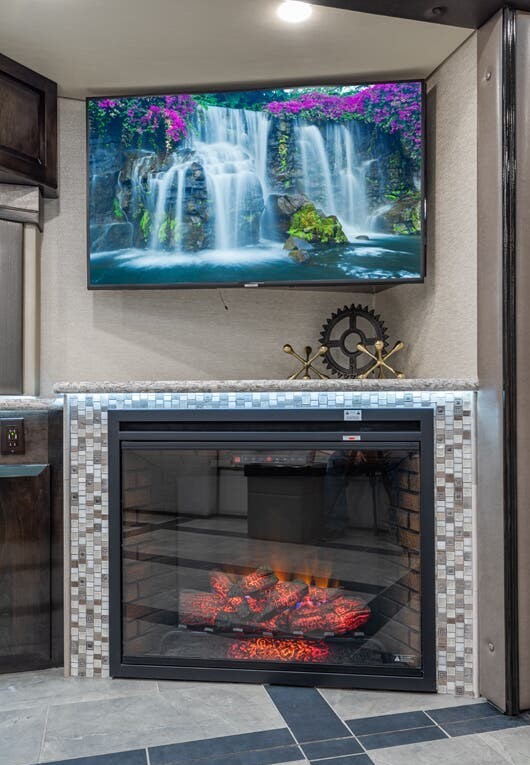

Fireplace (Floorplan Dependent)

Soft Close Full Extension Ball Bearing Drawer Tracks

Leather Coverings on Seating Surfaces

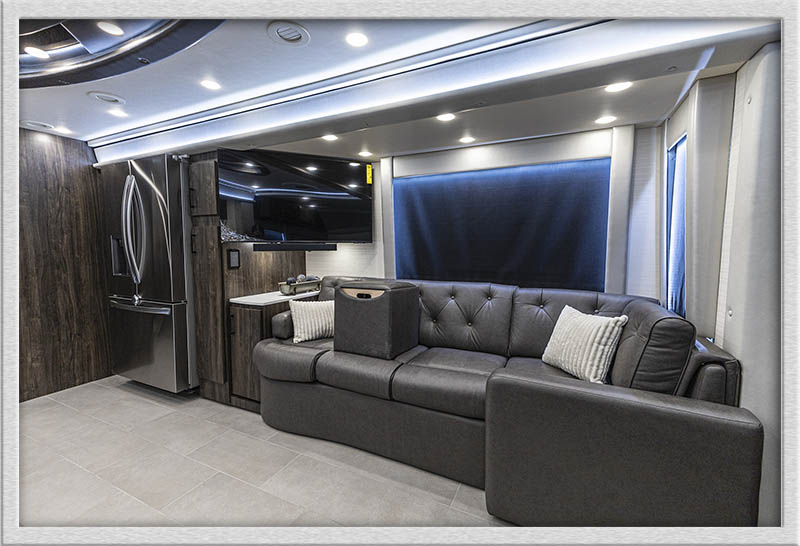

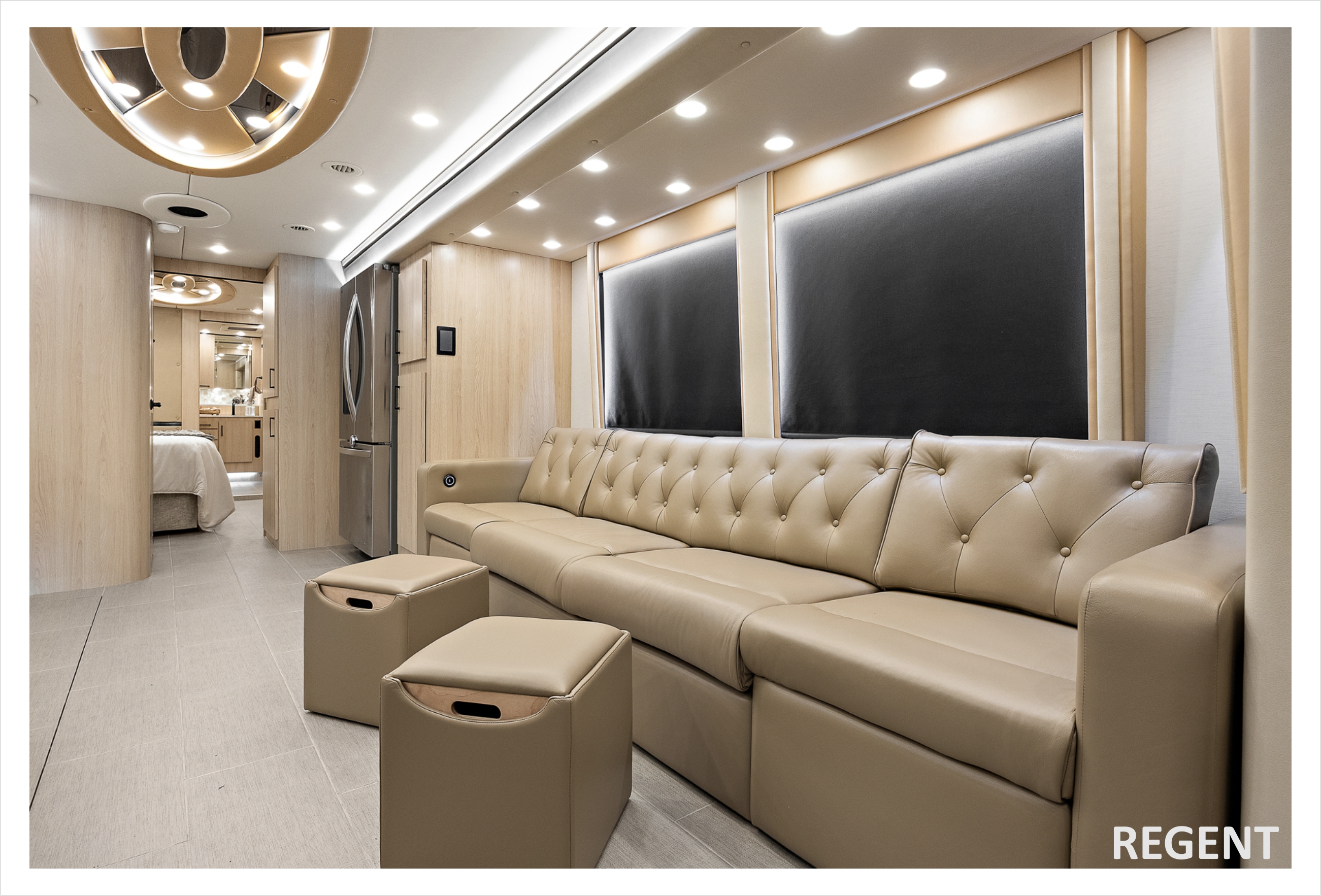

Sofa with Integrated Air Bed

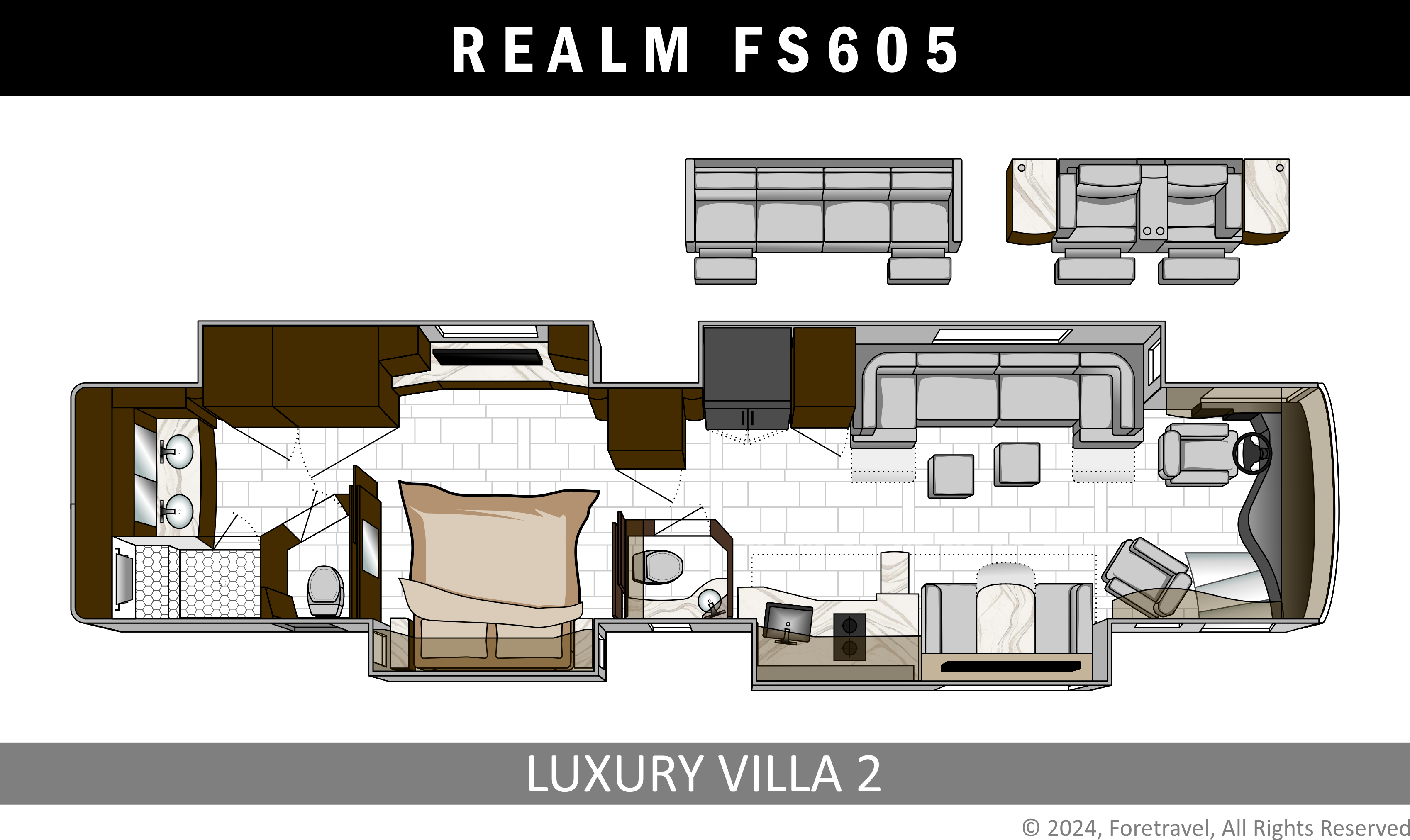

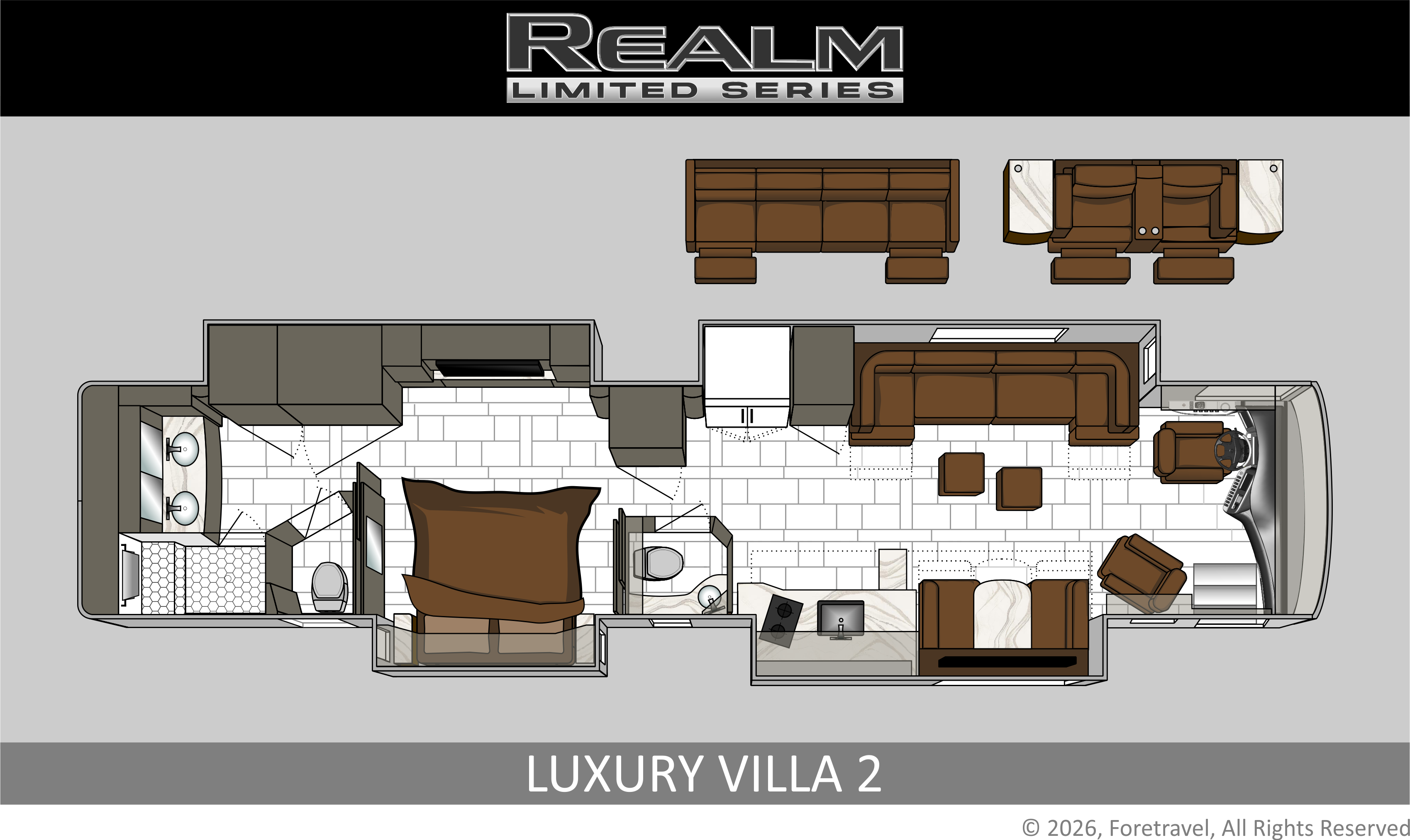

Luxury Villa 2 Living Room Seating Options: Theatre Seating, Double Lounge Chaise and Sofa with Motorized Recliners on Each End

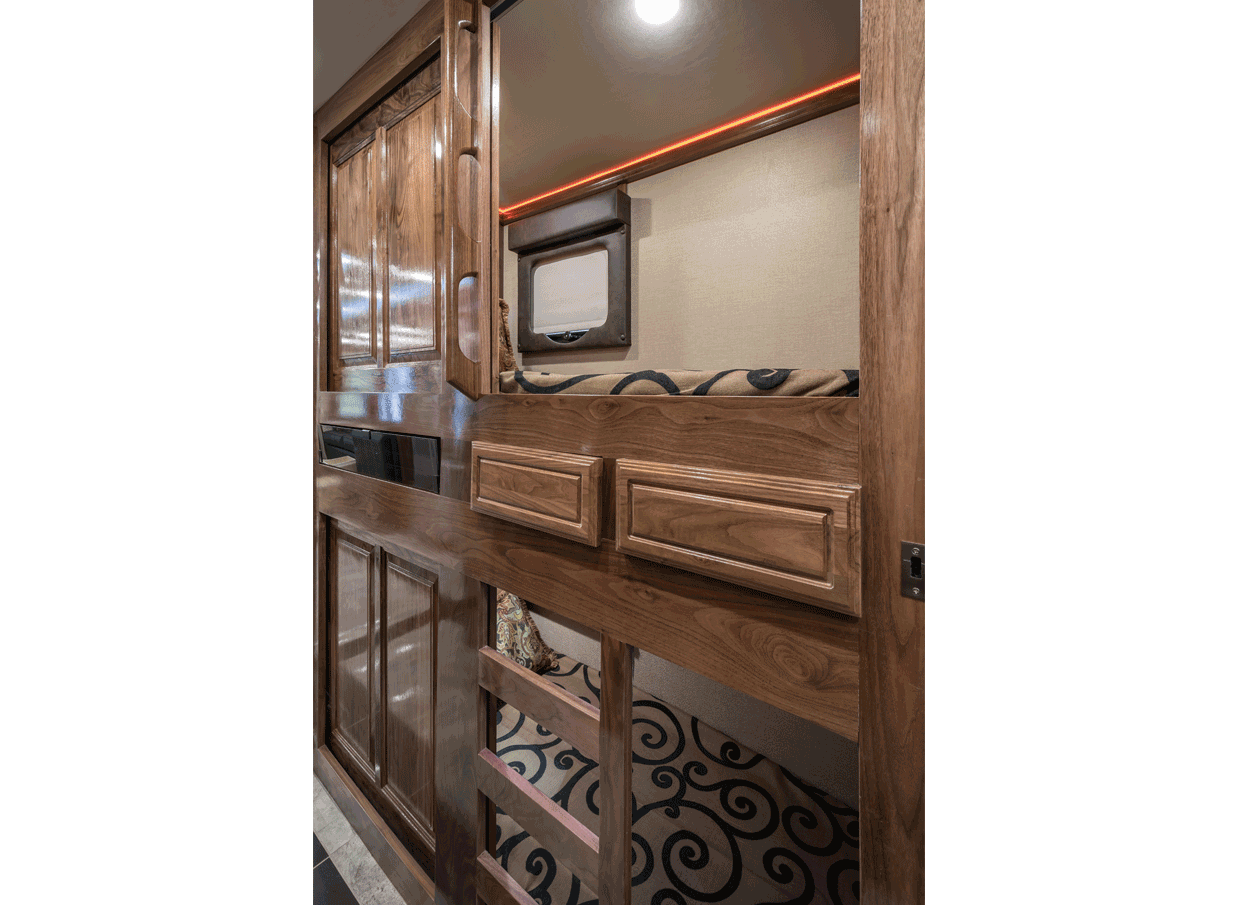

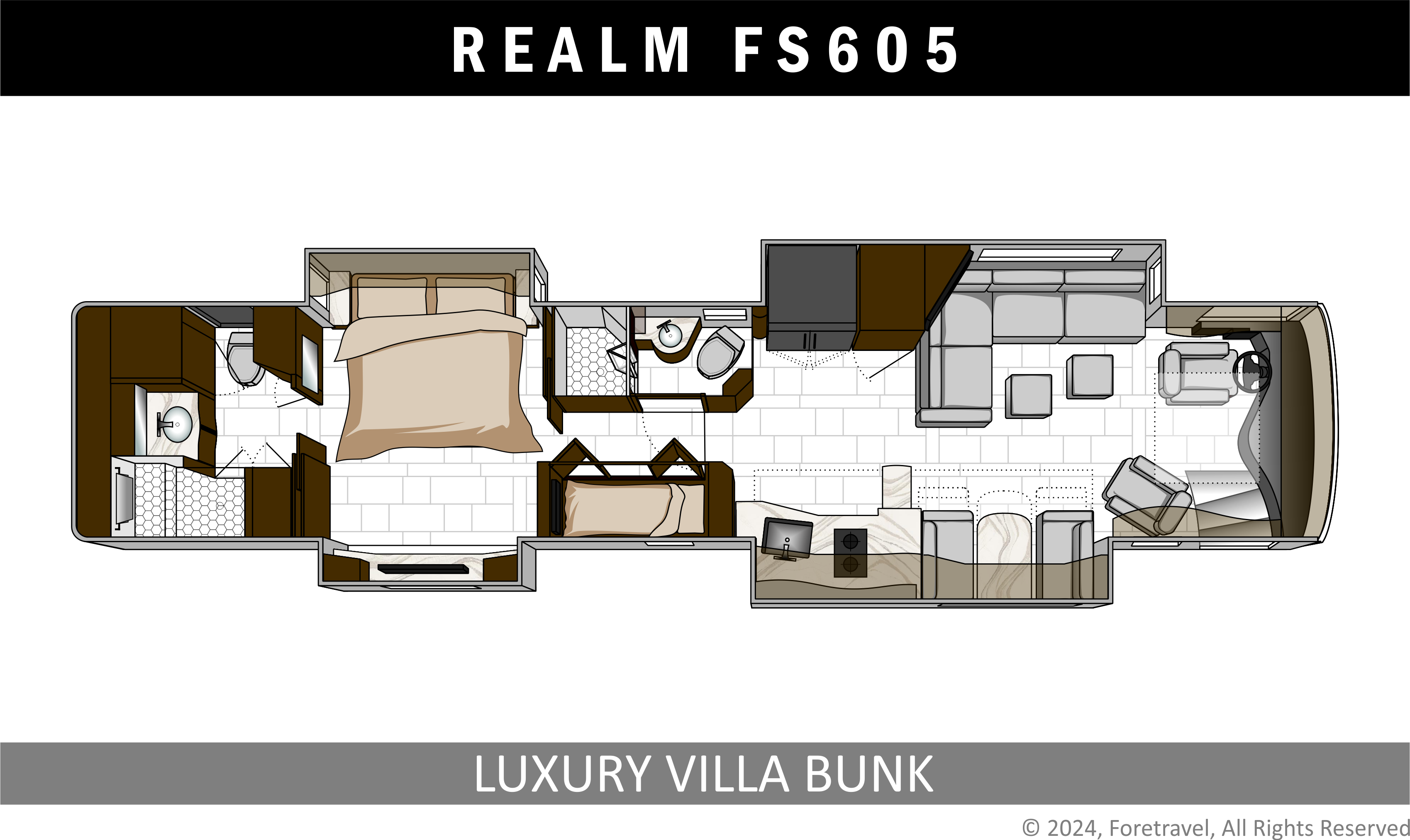

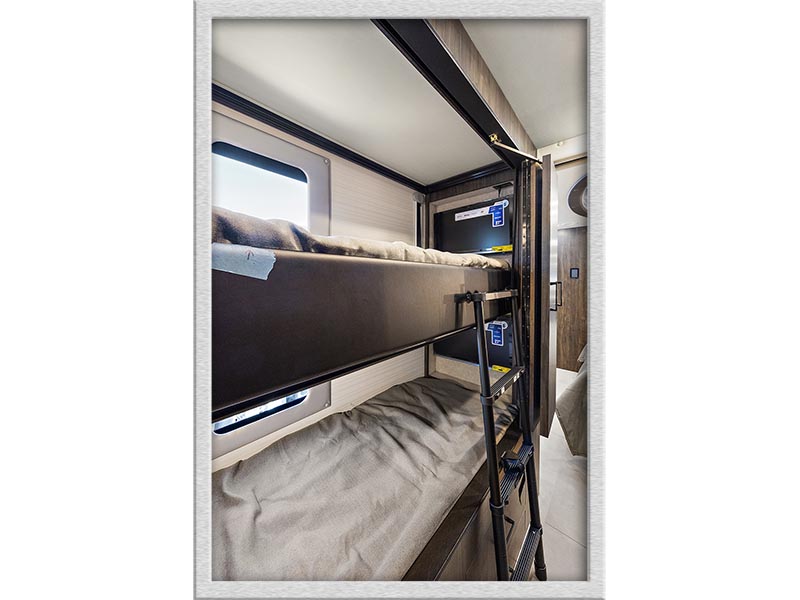

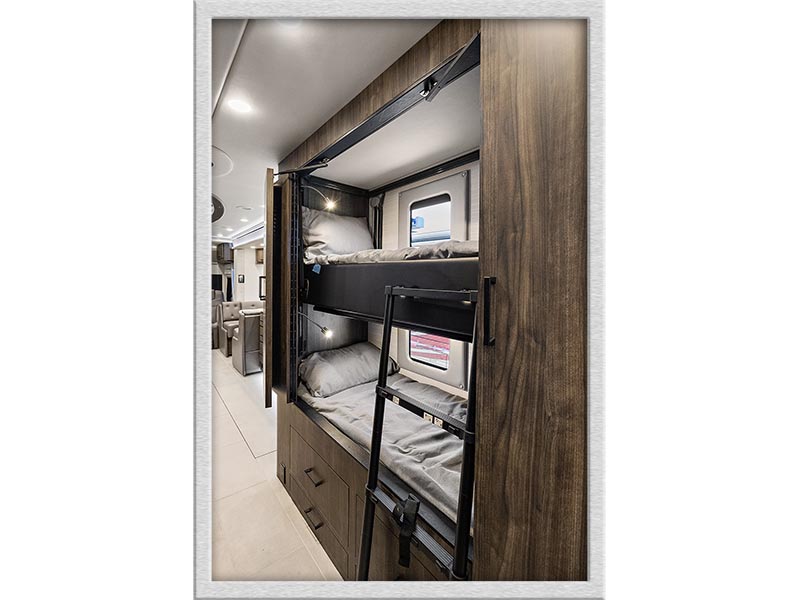

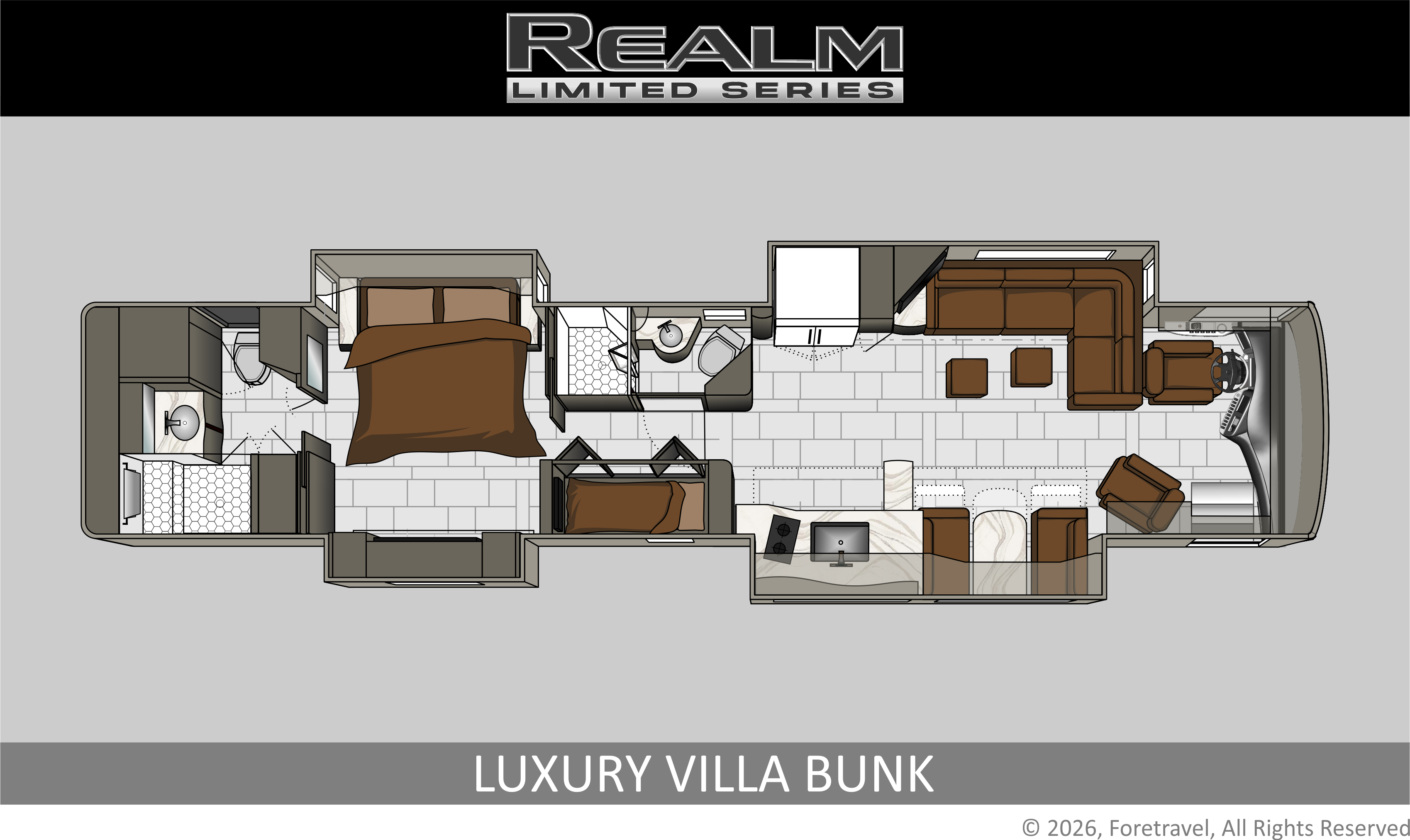

Luxury Villa Bunk Models Have Newly Redesigned Bunks to Increase Interior Bunk Space

CPAP Provision above Bed with 120v Receptacle in Overhead

LED Accent Lights at Entry Steps

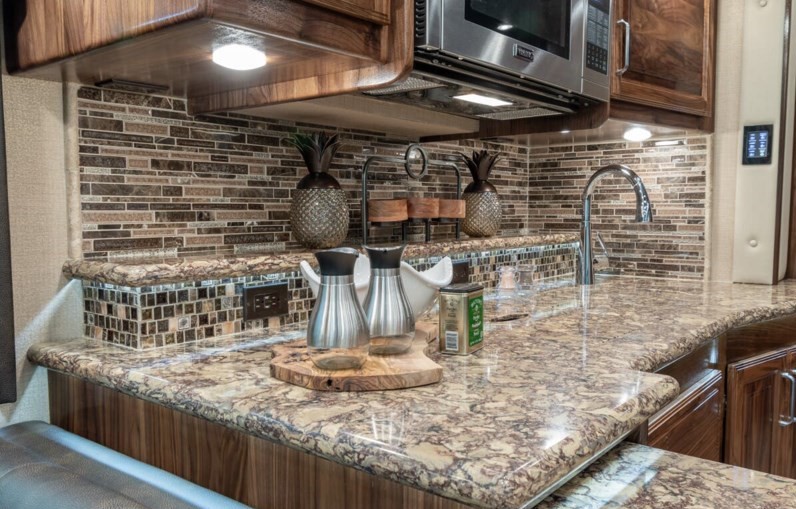

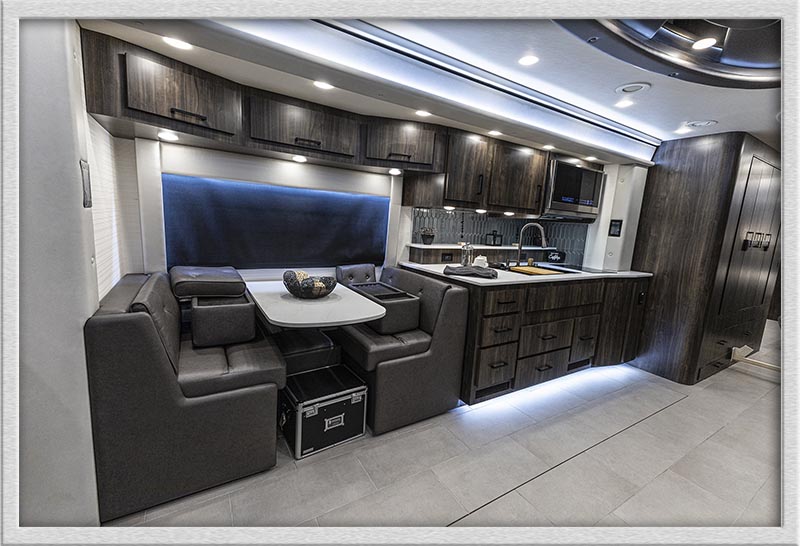

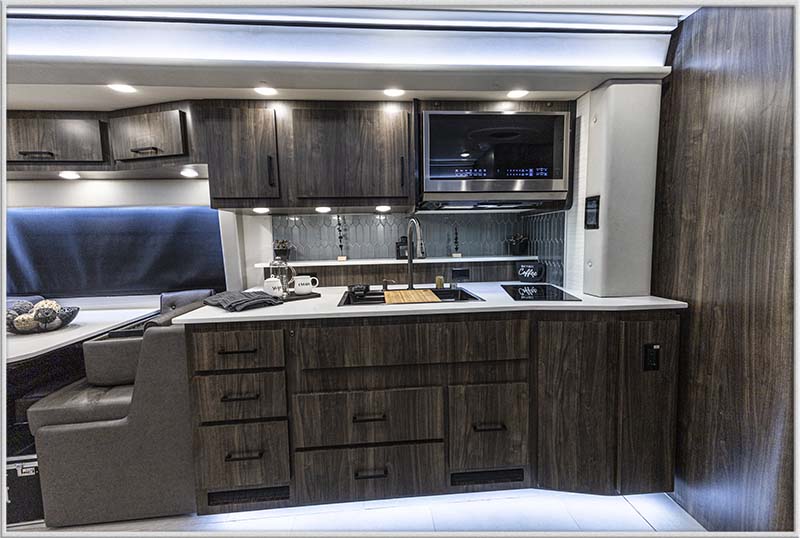

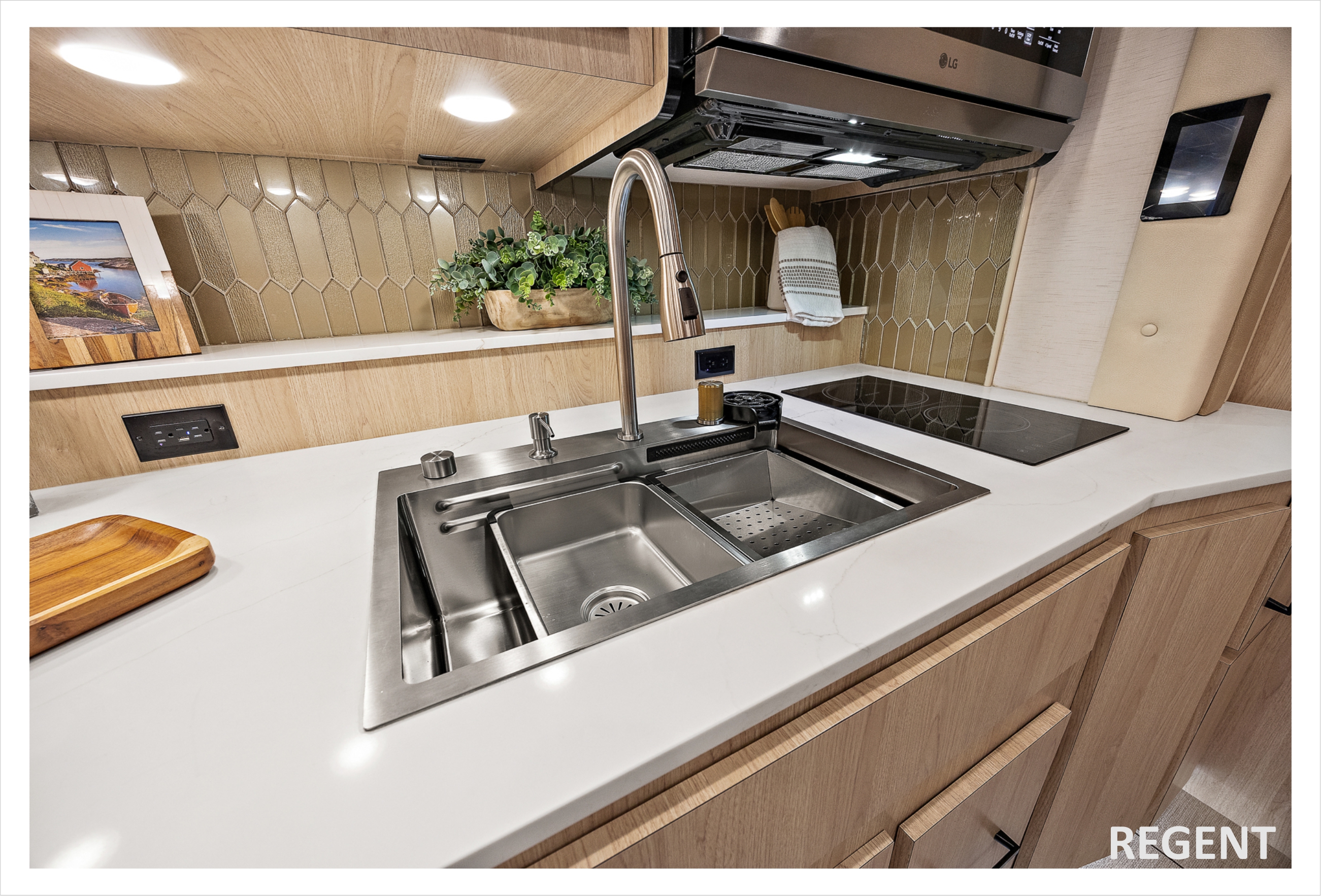

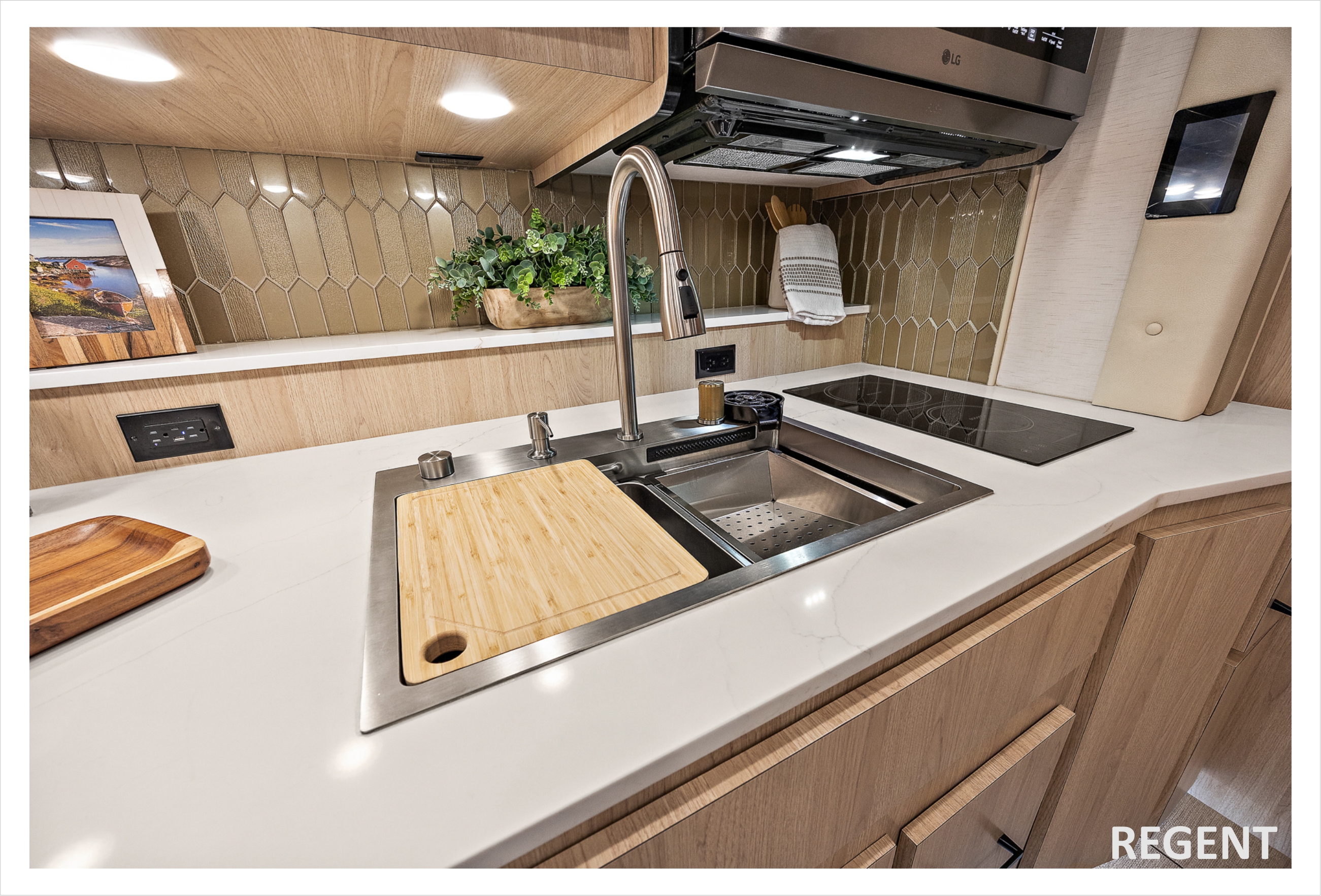

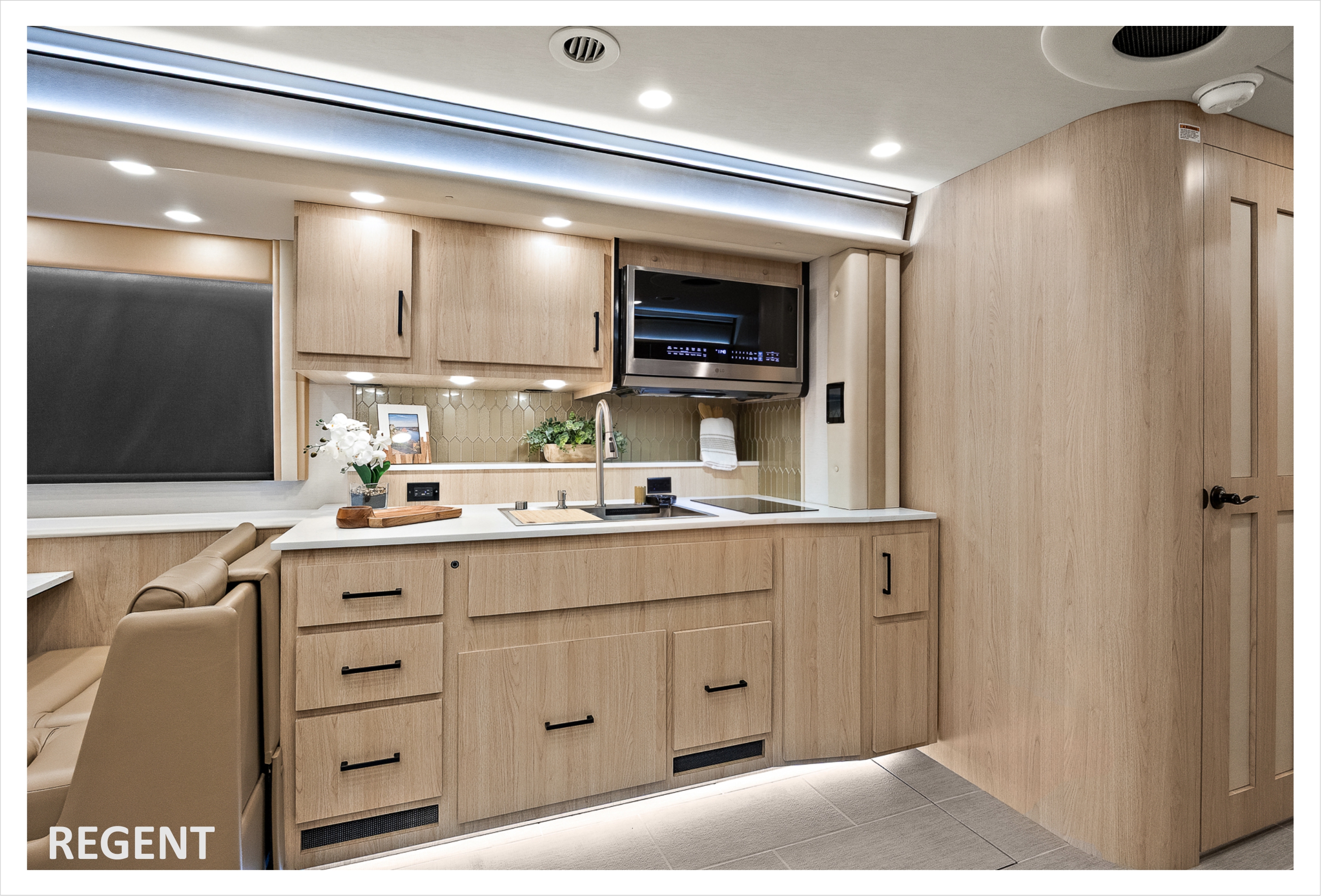

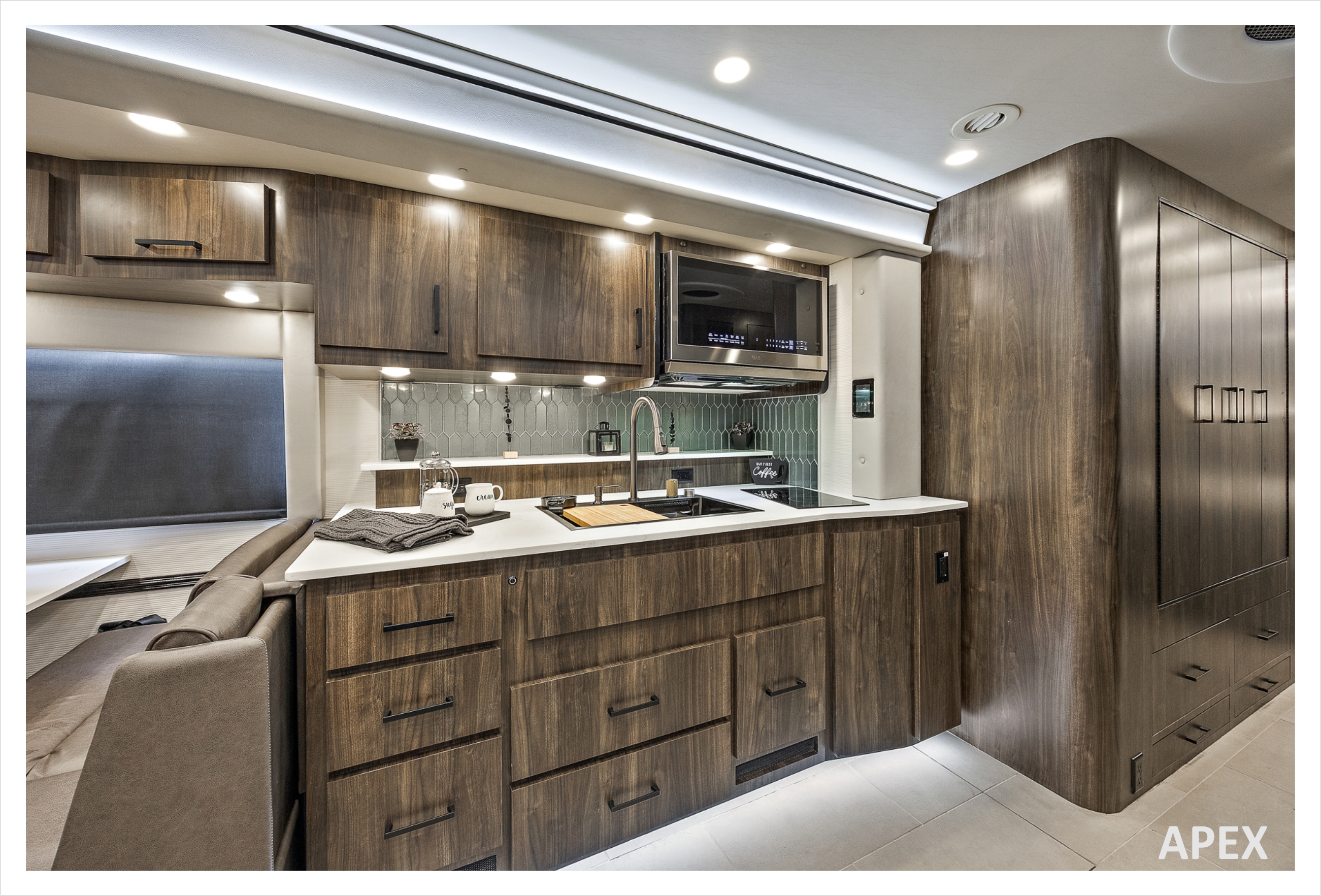

KITCHEN

Kitchen Pantry

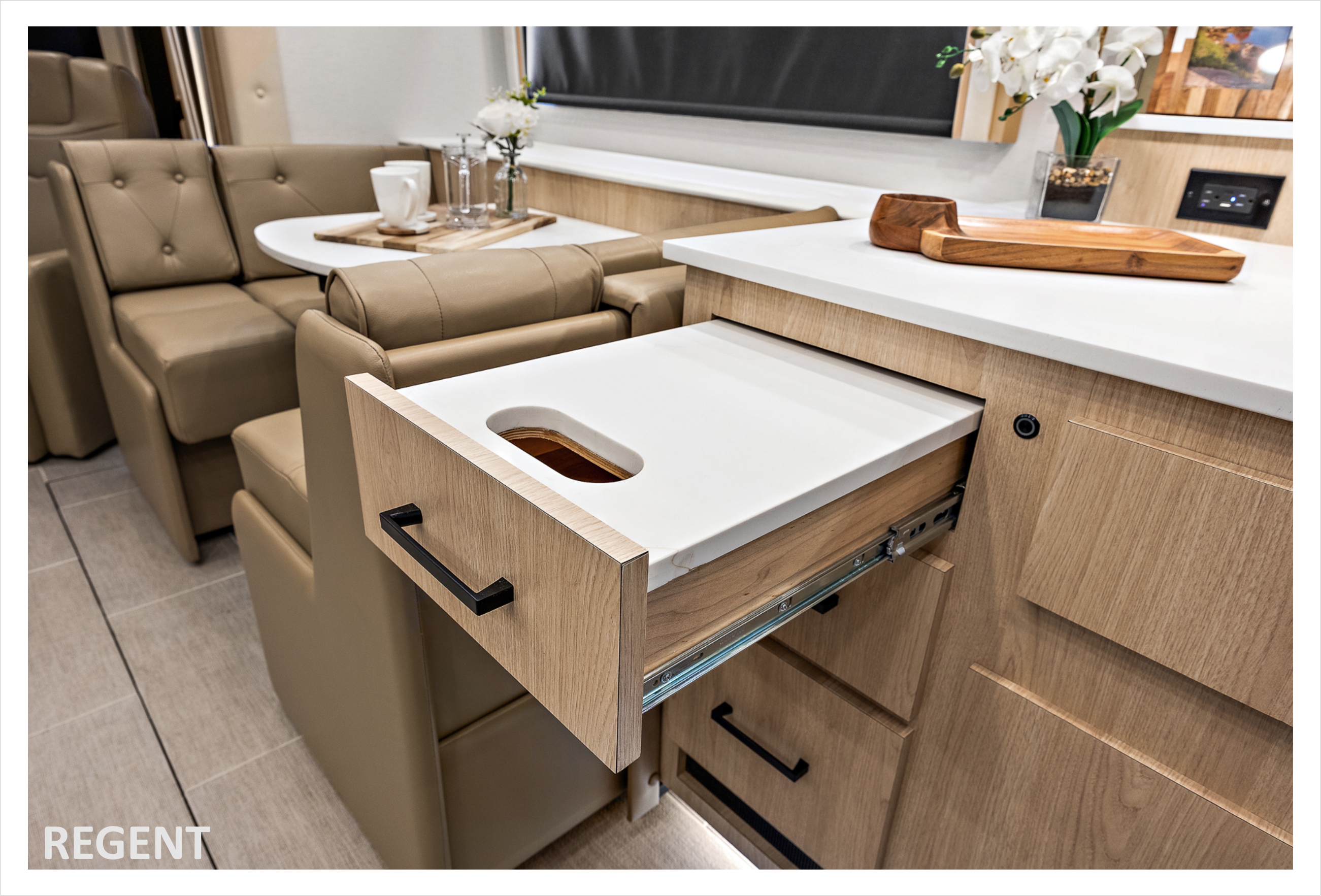

Kitchen Countertop Extension

Single Bowl Kitchen Sink with Covers

Overhead Cabinet with Pull Out Can Rack and Shelves

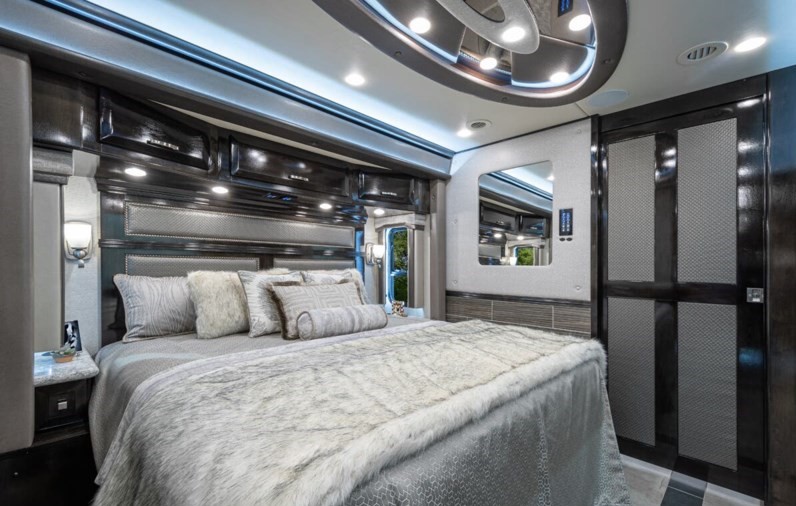

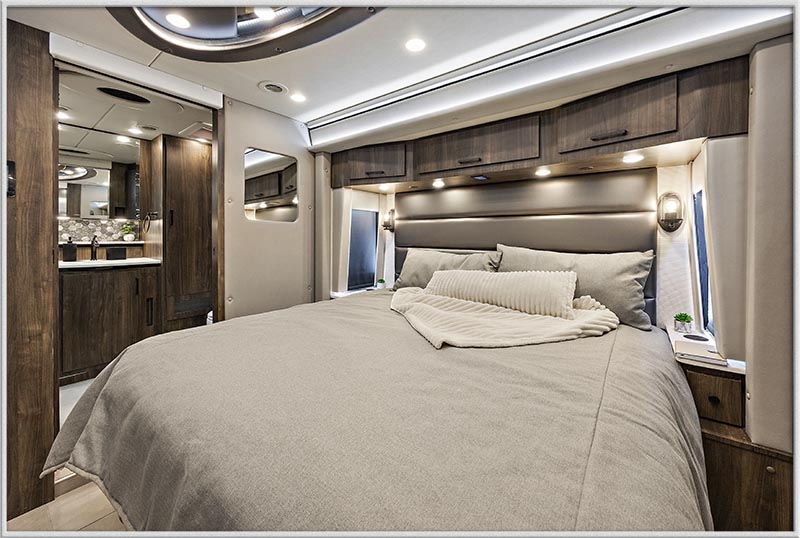

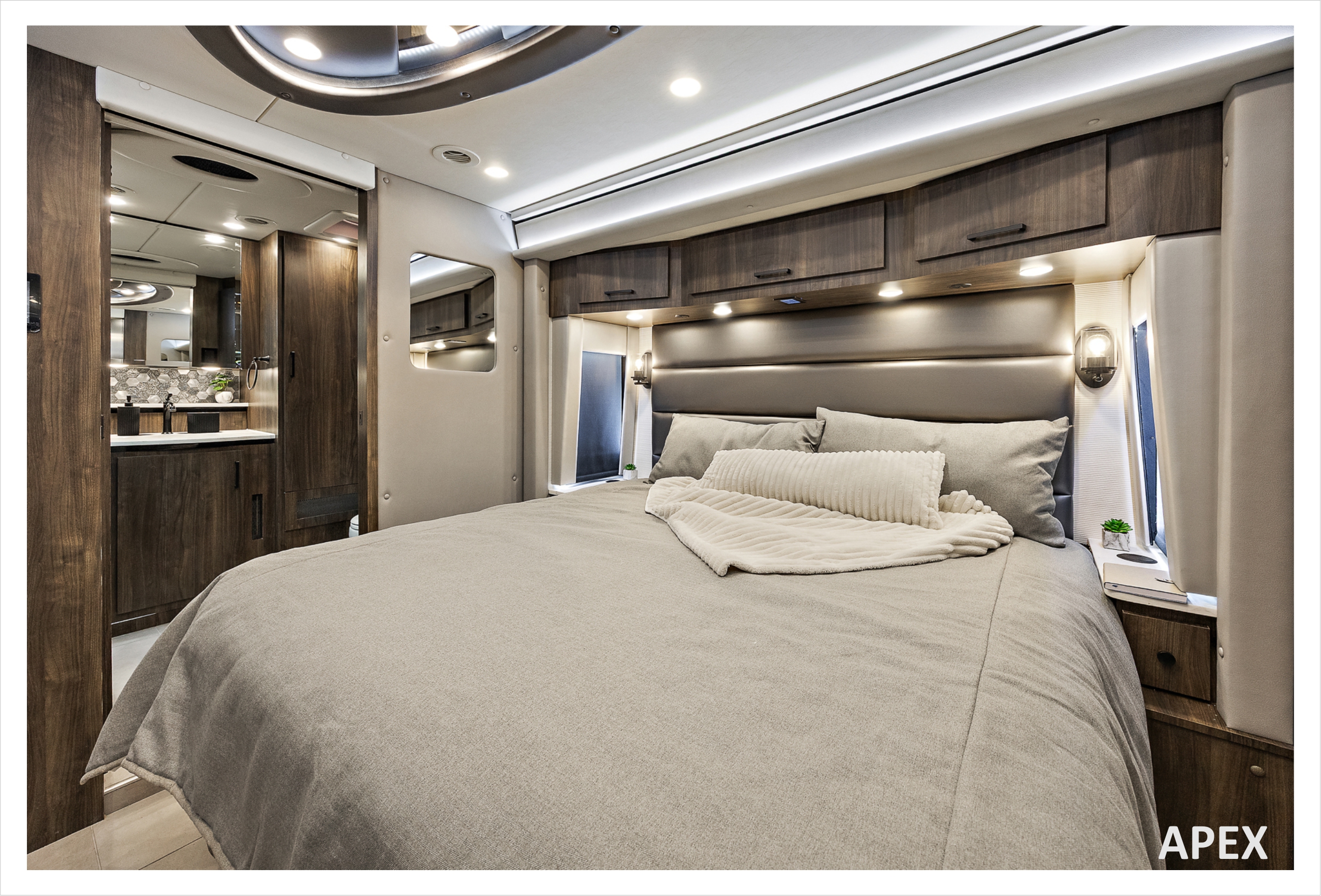

BEDROOM

Luxury King Size Mattress

Windows in Bed Slide Sidewall Below the Overhead

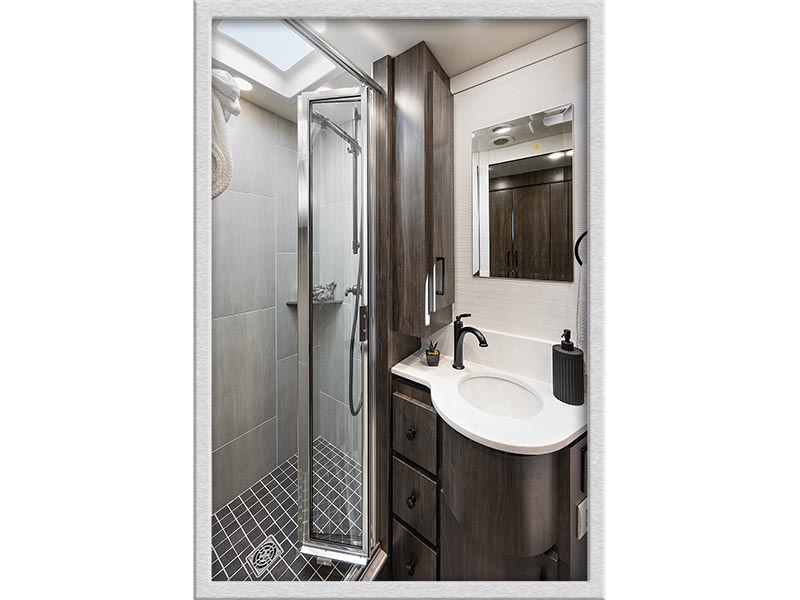

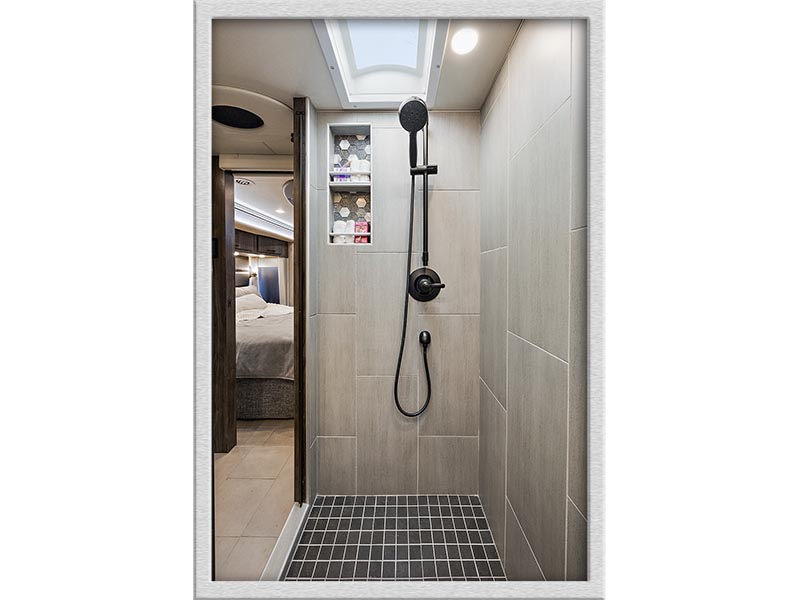

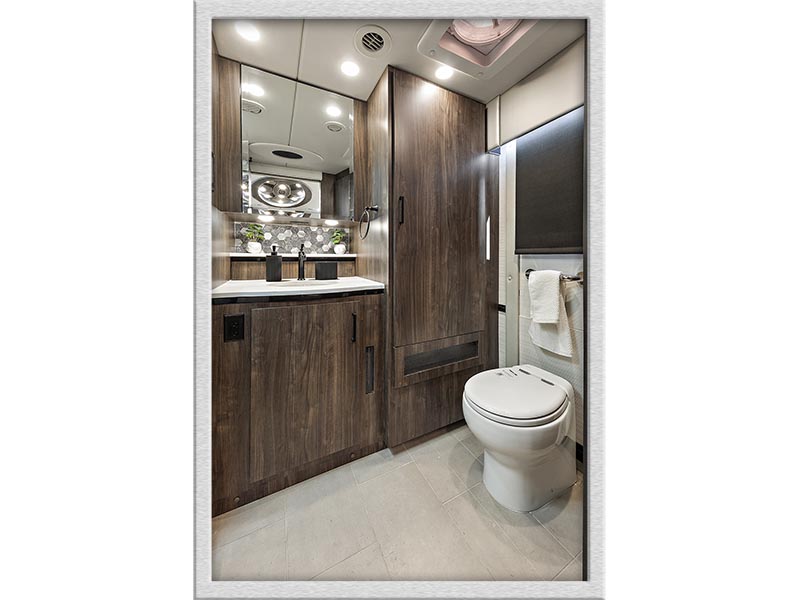

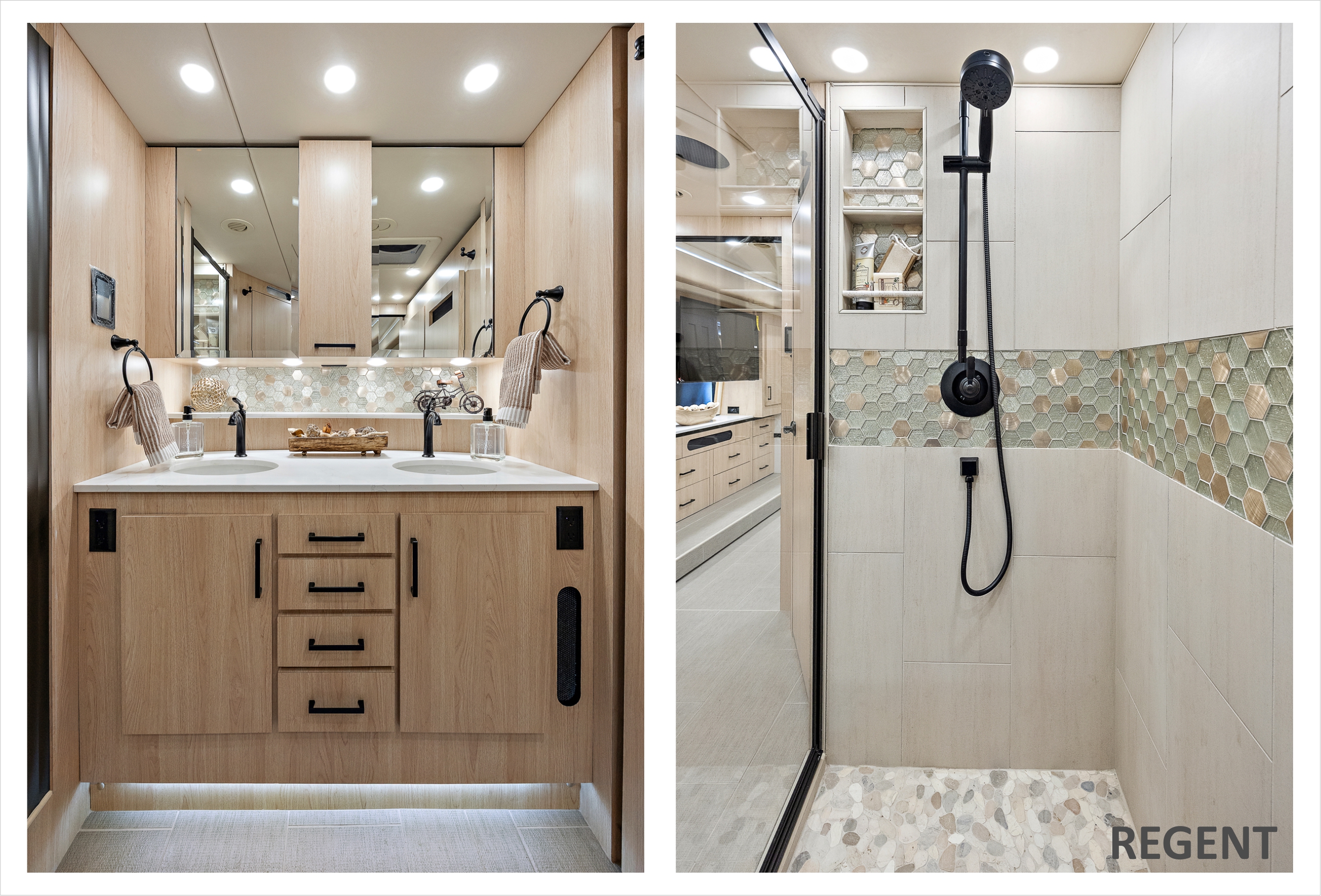

BATH • SHOWER

Reversible Variable Speed Electric Exhaust Fan in Bath and Toilet Room

Body Sprayer in Shower

Built-in Shower Bench

Showermiser Hot Water Recirculation System

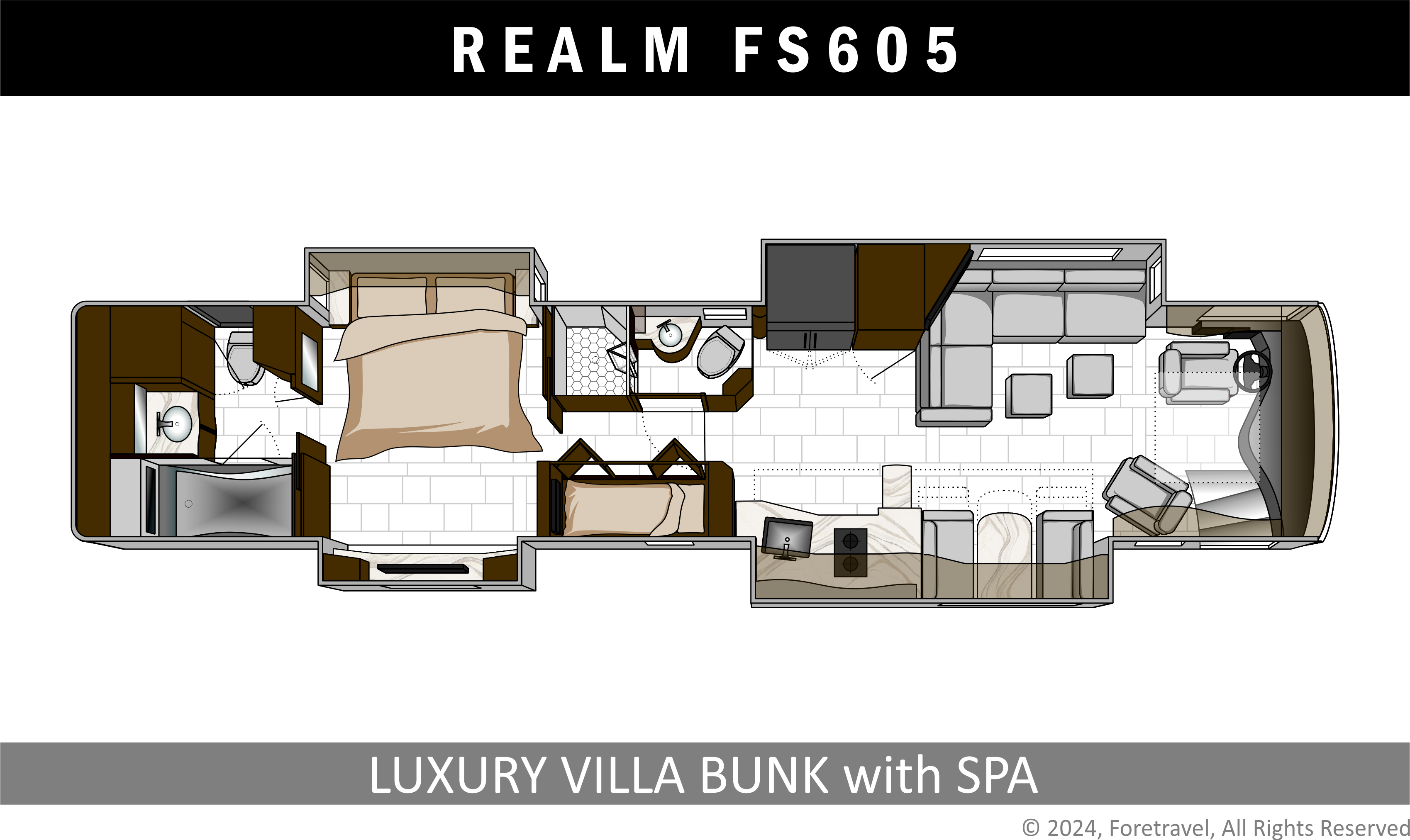

Massaging Spa (Floor Plan Dependent)

HEATING • COOLING • ELECTRICAL

Onan 12.5 Kw Diesel Generator in Quiet Box

Aqua-Hot Hydronic Heating 450D (Floorplan Dependent)

12-Volt Battery Disconnect

Dual 3000-Watt Xantrex Inverter/Charger

50-Amp Shoreline Connection

Air-Conditioning and Heating with Offset Returns for Superior Quiet Operation

Air-Conditioning, Ducted with 3 Roof Airs 15,000 BTU’s with Heat Pumps

Auto Temp. Start for Generator

Low-Battery Auto-Start for Generator

Six 4D House Batteries/ Two Engine Batteries, Group 31 with 950 CCA- Each

50-Amp Automatic Transfer Switch with Integrated Surge Suppression

Gold Heat Floor Tile Heating System (3 Zones with Scheduling Capability)

SAFETY FEATURES

All Coaches Built to RVIA Specifications

Rear Egress Door with Integrated Ladder

Spartan Advanced Protection System:

• Collision Mitigation with Adaptive Cruise Control and Active Braking
• Electronic Stability Control Automatically Brakes Individual Coach Wheels to Help Drivers Maintain Control During Extreme Steering Maneuvers.
• Automatic Traction Control (ATC)
• Spartan Safe Haul™ The Industry’s Only Chassis Integrated Air Braking System for Tow Vehicles to Supply Optimal Braking Performance.

Lights:

• Auto Headlights
• Illuminated Entry-Door Assist Handle
• Daytime Running Lights
• Sidewall Marker with Integrated Turn Signal

Tires:

• Tyron® Bead‐Lock Tire Blowout Protection (Front Tires)
• Valor GEN 3 TPMS Tire Pressure Monitoring System with Display Integrated on Digital Dash

Fire and Carbon Monoxide:

• Fog-Maker Engine Fire Suppression System
• Rear Exit Door
• Fire Extinguishers
• Carbon Monoxide Detector
• Smoke Detector

Cameras (7 Total):

• Bird’s Eye View 360 Camera System
• Total Vision Back-Up Camera
• Integrated on Side Mirrors

Mobile Eye Collision Avoidance and Lane Departure Technology with Intelligent High Beam Control

Cameras Displayed on Passenger Monitor

Haptic Warning System on Driver Chair

Indicator on Dash Reporting Slides and Jacks are Stored Ready for Travel

Three GFI Protected Circuits

Electronic Safe

Security System with Keyless Entry

Electric Storage Door Locks

Back-up Alarm 107 decibels

CSA Approved / Transport Canada Approved

Certified Green by TRA Certification™

CAPACITIES AND MEASUREMENTS

Fresh Water                  120  Gallons

Waste Water Tank       160  Gallons

Fuel Tank                       200  Gallons

DEF Tank                       15    Gallons

Interior Height             84”

Exterior Height             13’2” - Top of Roof A/C’s

Wheelbase                    316”

CHASSIS RATINGS

GVWR:                           54,000 lb.

Front GAWR:                20,000 lb.

Rear GAWR:                  20,000 lb.

Tag GAWR:                    14,000 lb.

GCWR:                           74,000 lb.

WARRANTY

Coach:                           2 Year/24,000 Miles

Chassis:                          5 Year/75,000 Miles

Engine:                           5 Year/100,000 Miles

Transmission:               5 Year/200,000 Miles

Chassis Frame &          20 Year Transferable

 Cross Members

OPTIONS

Five Professionally Designed Interior Selections with Three Custom Wood Cabinetry Options (Natural Walnut, African Mahogany and Polished Stone)

Eight Xtreme Scheme Exterior Color Selections

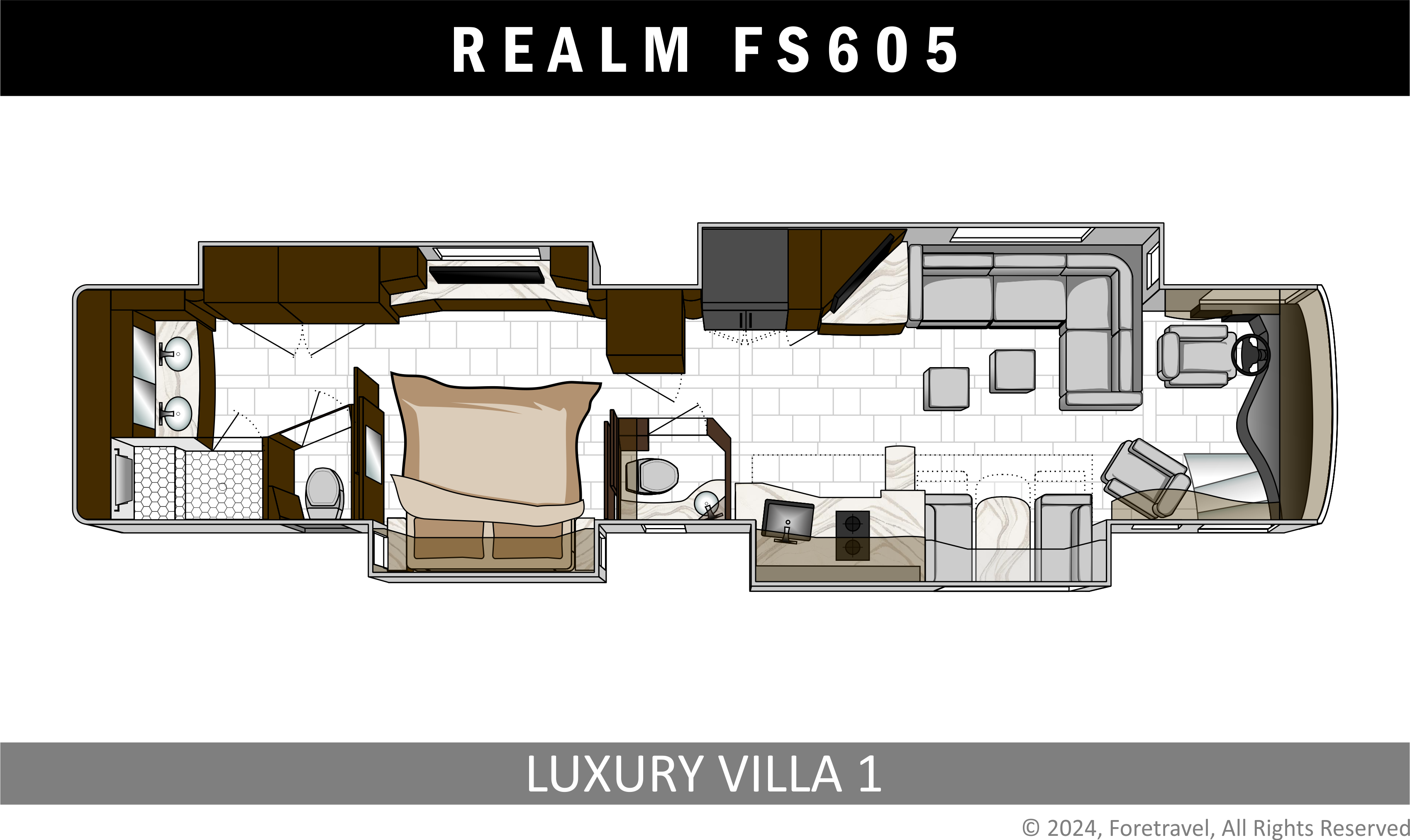

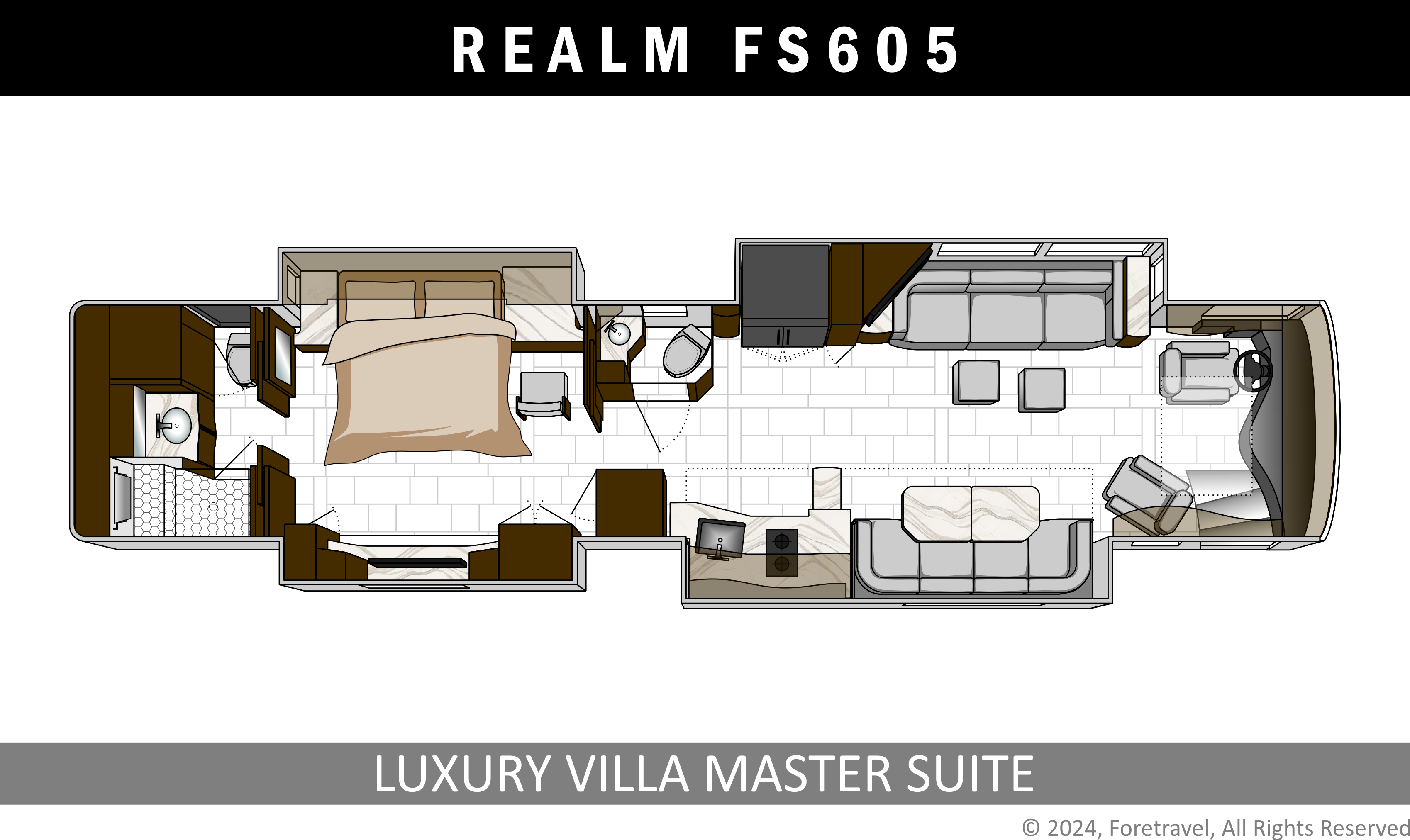

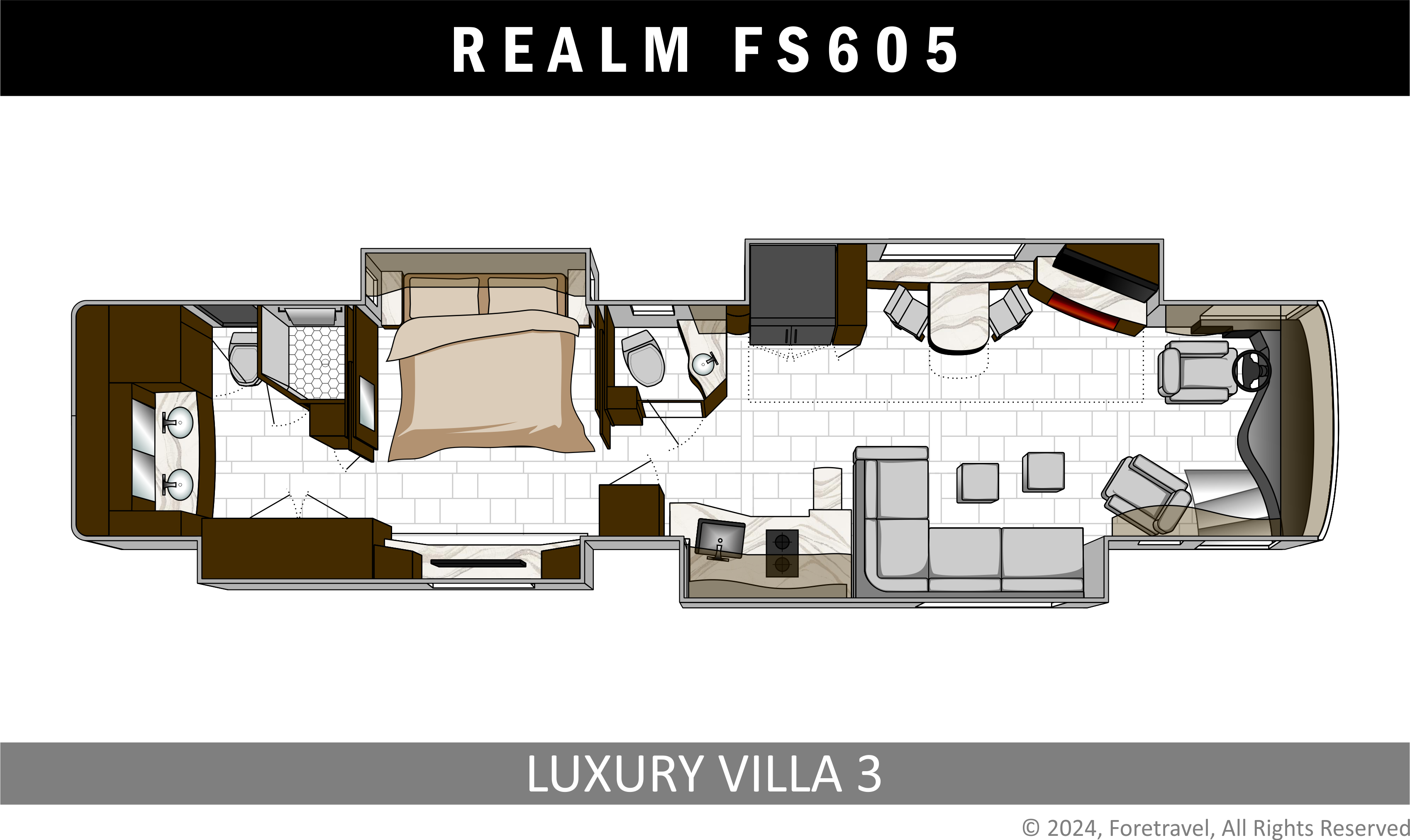

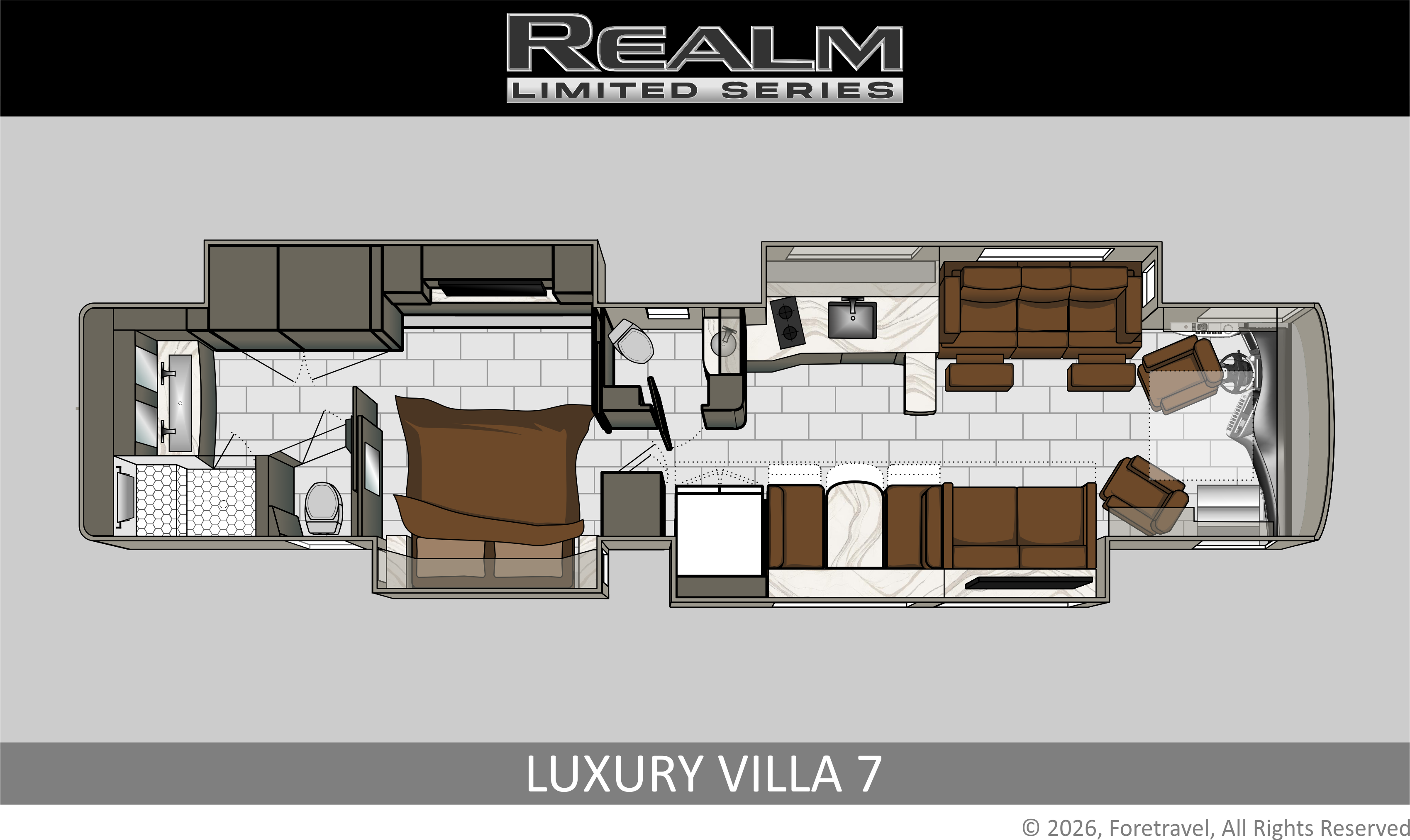

Six Spacious Engineered Floor Plan Selections all with Four Foretravel Exclusive Fore-Slides Technology

Outside Stainless Steel Trim Package (New Black Stainless Option Available)

Ottoman with Integrated Cup Holder

Head Hunter Mach 5 120V Water Pump (Bunk Floorplan Only)

Aqua Hot Hydronic Heating 600D (Bunk Floorplan Only)

LG Combination Washer / Dryer (Bunk Floorplan Only)

Additional House Batteries (2)

Pressure Washer

StarLink Roof Mounted Antenna

Foretravel, Inc. reserves the right to change or correct product specifications/pricing at any time without incurring obligations
